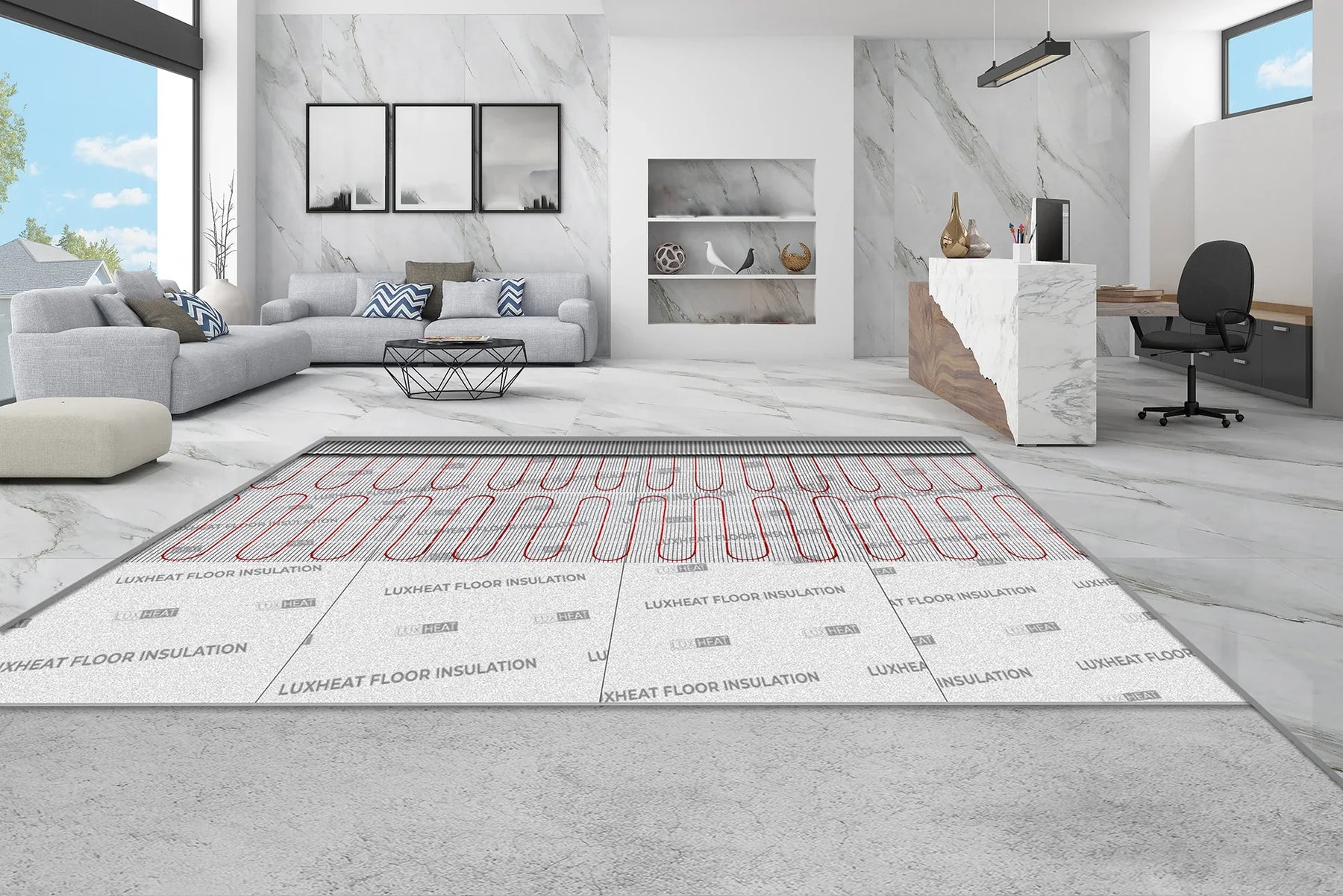

How to Insulate a Concrete Floor for Radiant Heat

Installing radiant floor heating on a concrete slab is one of the most effective upgrades you can make to a basement, first-floor bathroom, or slab-on-grade living space. But concrete has a problem: its thermal mass works against you. Without insulation between the slab and the heating system, a significant portion of the heat generated by the cables or mat is absorbed downward into the concrete before it ever reaches the room above.

The right radiant floor heat insulation changes that equation. An insulating layer between the concrete and the heating element deflects heat upward, cutting heat-up times and reducing the energy the system needs to maintain the set temperature. This guide covers which insulation products work for this application, where each layer goes in the floor assembly, how to prepare the slab, and the R-value rules you need to know — both below the heating system and above it — before you choose your finish floor.

This guide is specific to electric radiant floor heating systems — LuxHeat constant-wattage heating mats and cables — installed over a concrete slab. If your subfloor is plywood or OSB rather than concrete, see our guide to in-floor heating on a wood subfloor, which covers a different set of considerations.

Why Concrete Slabs Need Insulation Beneath the Heating System

Concrete has high thermal mass. It stores large amounts of heat energy and releases it slowly. In a radiant floor heating system, this creates a tension: the slab will retain heat and continue warming the room after the system cycles off, but it also absorbs heat downward during warm-up — extending the time before the floor surface reaches the target temperature.

On an uninsulated concrete slab, the heating system has to work longer to bring the floor surface to the set point because it is simultaneously heating the room and the slab below. An insulating layer between the slab and the heating element interrupts that downward heat flow and redirects the output upward toward the room. Depending on the insulation product and slab conditions, this can improve heat-up times by an estimated 30–50% compared to an uninsulated installation.

In basement and below-grade installations, there is an additional factor: the ground below is cold year-round. The earth itself acts as a heat sink beneath the concrete slab. Insulation provides a thermal break between that cold mass and the heating system — particularly valuable in colder climates where ground temperatures remain low through the heating season.

What Insulation Works Under Electric Radiant Heat on Concrete

Not every insulation material is suitable for this application. The insulation sits directly beneath the heating cables or mat, which means it must meet several requirements: compatibility with electric radiant heat systems, sufficient compressive strength to support the full floor assembly without deforming, compatibility with thinset mortar or self-leveling compound, and a thin enough profile to avoid raising the floor height significantly — especially important in basements with limited headroom.

CeraZorb HD synthetic cork and PROVA Board Plus+ are both validated radiant floor heat insulation options for electric radiant floor heating on a concrete slab. CeraZorb HD, at 3/16″ thick, adds minimal height while providing stable thermal resistance — the better choice where your margin for extra floor height is tight. PROVA Board Plus+, a ½″ rigid XPS board, offers a higher R-value (R-2.15) where maximizing thermal performance matters more than minimizing height gain. Both are engineered for direct contact with LuxHeat heating mats and cables — stable under compressive load, compatible with thinset mortar or SLC.

Understanding the Full Floor Assembly on Concrete

Before installing anything, it helps to understand how the layers stack up. The floor assembly on a concrete slab with electric radiant heat follows the same sequence for both tile and floating floor installations, with one key difference in the layers above the heating system.

How to Insulate a Concrete Floor for Radiant Heat — Step by Step

Step 1: Check and Prepare the Concrete Slab

The slab must be flat, structurally sound, and moisture-stable before any layers go down.

• Check flatness. Use a 10-foot straightedge across all areas being heated. The slab must be flat to within 3/16″ per 10 feet. Mark high spots and low areas.


• Grind and patch. Use an angle grinder with a diamond cup wheel to bring down high spots. Fill low areas, cracks, and voids with a concrete floor patching compound or floor-leveling mortar. Allow full cure before continuing.


• Test for moisture. Tape 18″ × 18″ plastic sheets to the slab and leave for 24–48 hours. If condensation forms on the underside, active moisture is present. Address the source before installing anything over the slab. For a definitive reading, a calcium chloride test (ASTM F1869) is recommended — a waterproof sealer or vapor barrier is required beneath the insulation when the result exceeds 3 lbs. per 1,000 SF in 24 hours.

Step 2: Install the Vapor Barrier (Basement and Below-Grade Slabs)

In basement and slab-on-grade applications, a vapor barrier goes directly on the concrete before the insulation.

• Lay 6-mil plastic film. Run it across the full slab footprint, overlapping seams by at least 6 inches. Tape seams with moisture-resistant tape.


• Run edges up the wall. Extend the barrier 4–6 inches up the wall perimeter. Trim or fold it back after the floor assembly is complete.


• In above-grade slab-on-grade applications. Use the plastic sheet moisture test to decide. If the test comes back dry, the vapor barrier is optional but does no harm.

Step 3: Install the Insulation Layer

• Lay panels flat. Butt edges tightly together across the full heated footprint. Stagger your panel rows but do not overlap panels — even a small ridge will telegraph through the heating mat.


• Cut to fit. CeraZorb HD cuts cleanly with a utility knife or heavy scissors, producing no dust. PROVA Board Plus+ can be scored and snapped, or cut with a straightedge and utility knife.


• Confirm coverage. Every square foot of heated area must have insulation beneath it. Double-check corners and edges before moving to the next step.

Step 4: Lay and Test the Heating Mat or Cable

• Choose the right system. LuxHeat heating mats are best suited to large, open rectangular areas. LuxHeat heating cables fit smaller or irregular-shaped rooms where hand-lacing is practical. Neither can be cut down or shortened after manufacture.


• Plan before you order. Sizing a radiant floor heating system correctly matters — a cable or mat that is too short cannot be extended, and one that is too large cannot be trimmed. ProLux's Design and Layout Service provides a free, custom floor plan before you purchase, eliminating the sizing risk entirely.


• Test before embedding. Use an ohmmeter to verify the cable or mat resistance reading before starting thinset or SLC. Compare to the spec on the system's label. Once embedded, any fault is extremely difficult to access without demolition.

Step 5: Embed the System and Install the Finish Floor

The embedding method depends on the finish floor.

For tile and stone:

• Apply thinset mortar. Spread thinset over the heating mat using a notched trowel, working carefully to avoid displacing the cable. Place the floor sensor between heating cables within this layer, routing the lead to the wall for later access. The mat and sensor embed together in the mortar.


• Set tile into fresh thinset. Tile or stone goes directly into the thinset layer over the heating mat. Maximum surface temperature for tile is 86°F.


• Connect the thermostat. Once the finish floor is complete, a licensed electrician makes the final connections — wiring the heating element and sensor lead to the floor heating thermostat and setting the floor temperature limit to 86°F.

For laminate, LVP, and engineered wood:

• Pour self-leveling compound (SLC). SLC encapsulates the heating mat and cures to a flat, stable surface. Position the floor sensor between heating cables before pouring, routing the lead to the wall for later access. Follow the SLC manufacturer's cure time — typically 24–48 hours. Do not install flooring on uncured SLC.


• If your flooring manufacturer recommends or requires an underlay, install one rated for radiant heat. The combined R-value of the underlay plus the flooring itself must stay between R-0.02 and R-1 if an underlay is used. Standard thick foam underlays, and any floating floor with an attached foam backing, will exceed this limit.


• Float the finish floor over the cured SLC. Set the thermostat maximum surface temperature to 82°F for laminate and LVP, or 80°F for engineered wood.

The R-Value Rules — Below the Element and Above It

The insulation position in the floor assembly determines which R-value rule applies. The rules are different for the two positions, and both matter.

Below the heating element: higher R-value is better.

The more thermal resistance between the heating system and the concrete slab, the more efficiently the system directs heat upward. CeraZorb HD provides useful thermal resistance at 3/16″ thickness without contributing meaningfully to floor height gain.

There is no maximum R-value in this position — more insulation here helps. PROVA Board Plus+, at R-2.15, offers a higher below-element R-value than CeraZorb HD — worth considering where maximizing thermal performance outweighs minimizing height gain.

Above the heating element: there is a strict maximum.

All layers between the heating element and the room — the underlay and the finished flooring combined — must stay between R-0.02 and R-1 for floating floor installations. Exceeding R-1 traps heat, causes the system to overheat, and can damage both the heating cables and the flooring above. This rule applies to every floating floor installation regardless of substrate.

Practical rules for what to avoid above the element:

• Never use thick foam underlay. Standard foam underlays rated R-2 or higher put the combined above-element R-value well past R-1.


• Never use laminate or LVP with an attached foam backing. The built-in layer adds thermal resistance that, combined with the flooring's own R-value, easily pushes past R-1.


• Tile installations have no above-element R-value concern. Mortar and tile have very low thermal resistance — there is virtually no practical risk of exceeding R-1 in the tile path.

Basement Concrete Floors — Additional Considerations

Basement slab installations add two variables that above-grade concrete floors do not have: moisture and ceiling height.

Moisture. Basement slabs are in contact with the ground and subject to vapor drive from below — moisture migrating upward through the concrete from the soil. A vapor barrier between the concrete and the insulation is recommended in most basement applications, regardless of whether visible moisture signs are present.

If you do have active moisture intrusion (water pooling, efflorescence, or a wet basement floor after rain), remediate the moisture source before installing any floor assembly over it. For more on heating options in this context, see our guide to radiant floor heating in a basement.

Ceiling height. Basements often have limited headroom, and every added floor layer reduces it. CeraZorb HD at 3/16″ minimizes this impact; PROVA Board Plus+ at ½″ adds more height in exchange for a higher R-value. Generic off-the-shelf rigid foam boards not validated for this application often run 1–2″ or more — significantly more height gain without the compressive-load and radiant-heat compatibility either validated product offers.

For tile installations, the total floor assembly — insulation plus thinset plus tile — typically adds ½″–¾″ to floor height. Floating floor paths add slightly more when accounting for the SLC layer (¼″–⅜″) and the flooring itself. Plan ahead around door thresholds and any transitions to adjacent spaces.

Key Takeaways

• Insulation below the heating element is strongly recommended on all concrete slab installations. Concrete's thermal mass absorbs heat downward — insulation redirects it upward, improving heat-up times by an estimated 30–50% and reducing operating costs over the life of the system.


• CeraZorb HD synthetic cork and PROVA Board Plus+ are both validated insulation options for this application — choose CeraZorb HD (3/16″) to minimize height gain, or PROVA Board Plus+ (½″) for a higher R-value where floor height margins allow.


• The floor assembly follows a set sequence: concrete slab → vapor barrier (if needed) → insulation layer → LuxHeat heating mat or cable → thinset (tile) or SLC (floating floors) → finish floor.


• Layers above the heating element have a strict R-value limit: the combined R-value of all layers between the element and the room must stay between R-0.02 and R-1 for floating floor installations. Standard foam underlays and floating floors with attached foam backings exceed this limit.


• Always test the heating system with an ohmmeter before embedding it in thinset or SLC — once the element is encapsulated, any fault requires demolition to access.


• In basement installations, use a vapor barrier and plan for the floor assembly's height gain in rooms with limited headroom.

Frequently Asked Questions

How thick should insulation be under a concrete floor with radiant heat?

For electric radiant floor heating, CeraZorb HD's 3/16″ (5mm) profile is the default choice for minimizing floor height gain. Where a higher R-value matters more than headroom or floor levels — for example, prioritizing heat-up performance in a space without ceiling-height constraints — PROVA Board Plus+, a ½″ rigid XPS board, offers a higher R-value than CeraZorb HD. Thicker generic insulation boards (1–2″) are sometimes used in hydronic or in-slab applications, but for thin electric mats and cables laid on top of an existing slab, a validated 3/16″–½″ product provides the right thermal resistance without excessive height gain.

Do I need a vapor barrier under the insulation on a concrete slab?

In basement and below-grade applications, yes. A 6-mil plastic film vapor barrier placed directly on the concrete, beneath the insulation, protects against moisture vapor migrating upward through the slab. In above-grade slab-on-grade applications, use the plastic sheet moisture test first: tape plastic to the slab for 24–48 hours. If condensation forms on the underside, install the barrier before proceeding. If the test comes back dry, the vapor barrier is optional but does no harm.

Can I use rigid foam board insulation under electric radiant floor heating on concrete?

Yes — PROVA Board Plus+ is ProLux's validated rigid XPS board for this application, offering a higher R-value (R-2.15) than CeraZorb HD at ½″ thick. It's a good option where maximizing thermal performance matters more than minimizing floor height. For headroom-constrained basements, CeraZorb HD's 3/16″ profile remains the more practical choice. Other third-party rigid foam boards vary — verify the specific product's radiant heat rating and compressive strength before use.

How do I know if my concrete slab is ready for radiant heat installation?

The slab needs to meet three criteria: flat within 3/16″ per 10 feet, structurally sound (no crumbling, active cracking, or undermined areas), and moisture-stable. Check flatness with a 10-foot straightedge and note all high spots and low areas — both need to be corrected before anything goes down. For moisture, use the plastic sheet test and leave it for 24–48 hours. Condensation on the underside means active moisture that must be addressed before installation begins.

Does insulation under the heating mat make the floor heat up faster?

Yes — significantly so on concrete. Without insulation, the slab's thermal mass absorbs heat downward, slowing the time it takes the floor surface to reach the set temperature. Insulation between the slab and the heating element deflects that heat upward toward the room instead. Heat-up times on concrete slabs can improve by an estimated 30–50% compared to an uninsulated installation, with reduced energy use over the long term.

Can I install radiant floor heating on an existing concrete slab?

Yes. LuxHeat heating mats and cables are designed to install on top of an existing concrete slab — no demolition or slab penetration required. The mat or cable lays on top of the insulation layer, embedded in thinset mortar for tile or self-leveling compound for floating floors. The total added floor height is typically ½″–¾″ for tile paths and somewhat more for floating floor paths. Plan for threshold and door clearances before finalizing your design. For sizing and layout help specific to your space, the free Design and Layout Service from ProLux takes care of all measurements before you order.
