LuxHeat Floor Heating Cable Repair Kit
The LuxHeat floor heating cable repair kit is a single-splice solution for fixing cut, broken, or damaged electric radiant floor heating cables and mats — restoring full function to your floor heating without tearing out the entire system. Whether the cable was nicked during installation or damaged after the floor was set, this heated floor repair kit provides everything needed for one complete, waterproof splice.

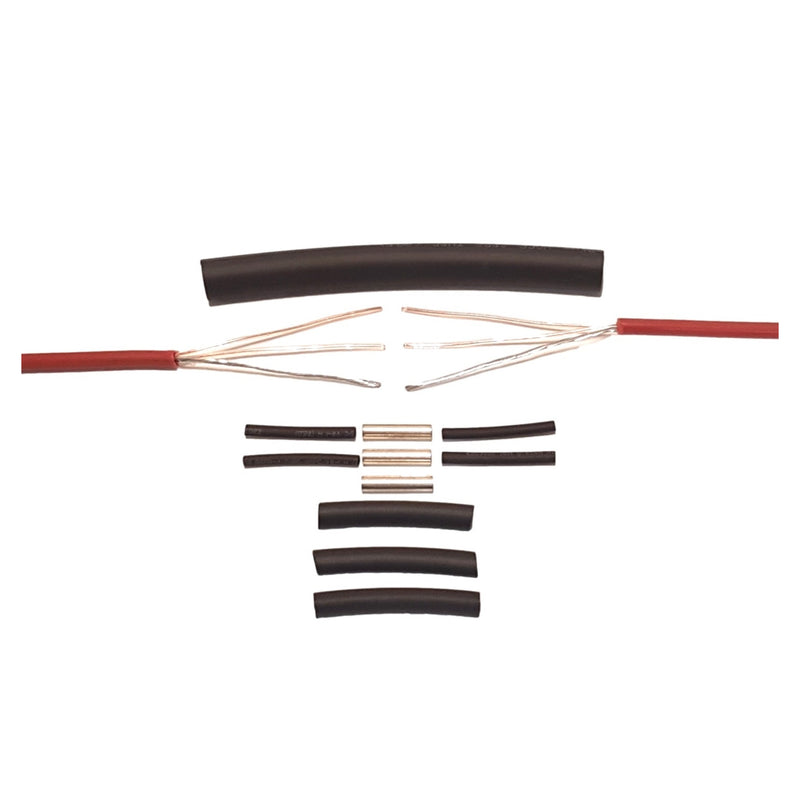

Each kit includes a high-conductivity copper/aluminum crimping ferrule (OD 4.0 mm / ID 3.0 mm) and two adhesive-lined heat shrink sleeves: a smaller 4.5 mm × 40 mm inner sleeve and a larger 9.5 mm × 120 mm outer sleeve. The adhesive lining in the heat shrink melts during application and forms a sealed, waterproof barrier around the finished join.
One kit handles a direct cable join where the two ends meet without a gap. If you are bridging a gap using additional wire, two kits are required — additional wire is not included with either kit.
-
Underfloor heating cable repair kit — complete in one purchase — ferrule, inner heat shrink sleeve, and outer adhesive waterproof sleeve all included for one full splice; nothing else needed for a direct join
-
Works on heating wires and cold leads — compatible with LuxHeat floor heating cables and mats and most other electric underfloor heating systems where the cable OD fits within the ferrule ID
-
Waterproof adhesive-lined heat shrink — 3:1 shrink ratio; adhesive layer melts and seals around the join for long-term moisture protection at the splice point
-
High-conductivity ferrule — copper/aluminum crimp ferrule OD 4.0 mm / ID 3.0 mm ensures a low-resistance electrical connection at the repair point
-
One kit for direct joins — two kits for gap bridging — the correct quantity depends on whether cable ends can meet without additional wire; order accordingly before starting the repair
For guidance on whether your specific cable damage can be repaired with this kit, or for help sourcing bridging wire for gap repairs, contact the ProLux Materials support team. Free shipping on all orders within the contiguous US.

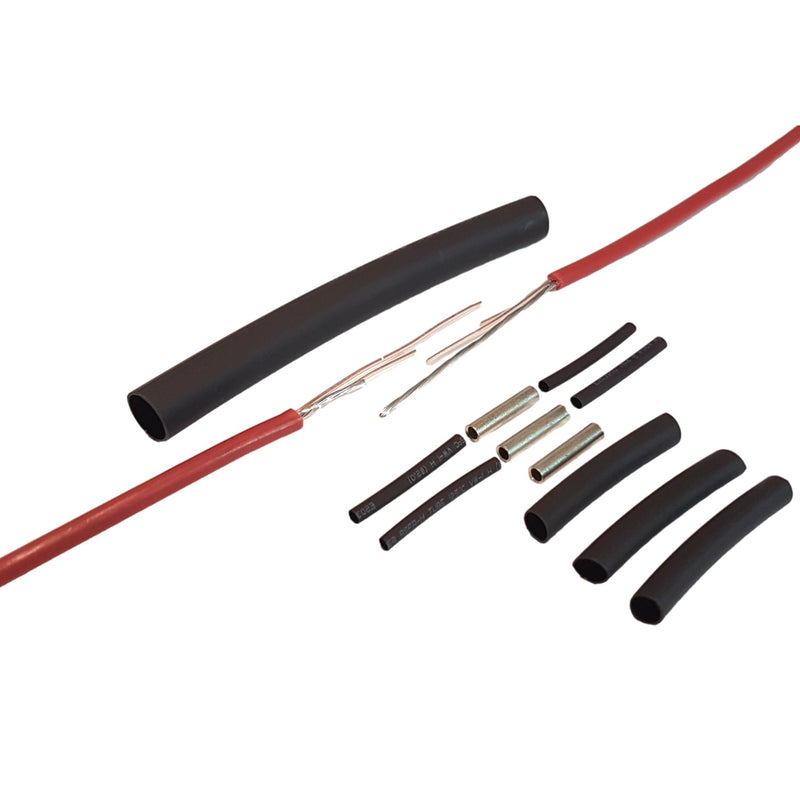

The Burgundy (heating wire) shown in the image is not included in this kit.
Frequently Asked Questions
How much does it cost to repair a floor heating cable?
The LuxHeat heating cable repair kit is $12.95 — the kit itself is one of the most affordable solutions for a damaged radiant heating cable. Total repair cost depends on whether you do the splice yourself or hire an electrician, and whether tile must be removed to access the break. If only the cold lead (the unheated section between the cable and junction box) is damaged and accessible, the repair is typically quick and inexpensive. If the break is under tile, tile removal and relaying adds to the overall cost.
Can I use this kit to repair a cable buried under tile?

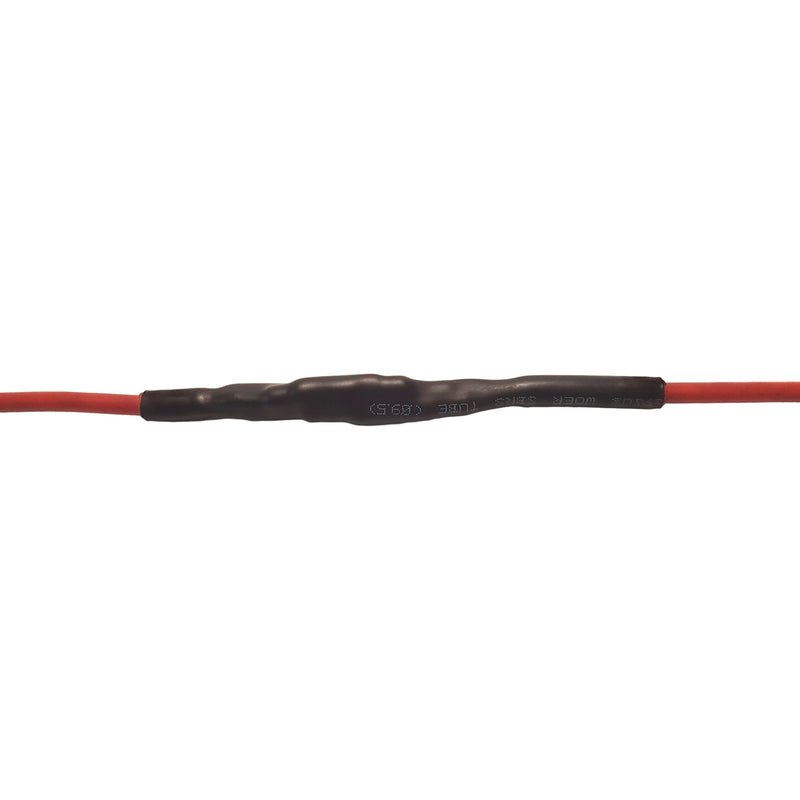

Yes, but only if you can access the break without removing the tile. The finished splice — ferrule crimped and both heat shrink sleeves applied — creates a waterproof, low-profile join that is safe to cover and tile over once complete. If the break is under an existing tile installation, the tiles directly over the damaged section will need to be carefully removed to expose the cable before the splice can be made.
Is one repair kit enough, or do I need two?

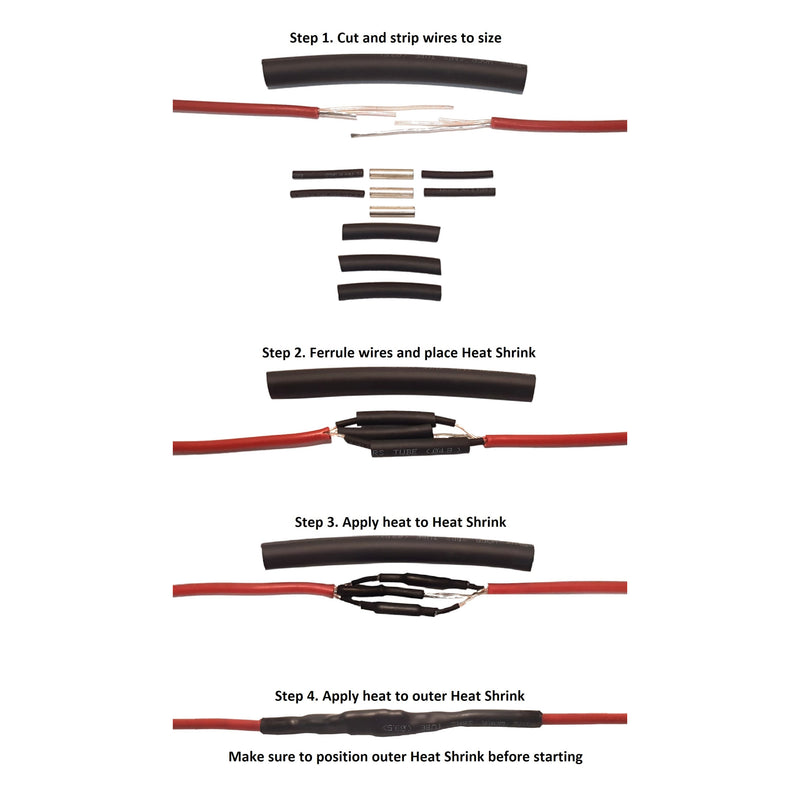

One kit is sufficient for a direct join where the two cable ends can meet without a gap — simply strip, insert into the ferrule, crimp, and apply both heat shrink sleeves. If there is a section of missing or damaged cable that must be removed, leaving a gap between the two ends, you will need two kits plus a section of bridging wire to bridge the distance. Bridging wire is not included and must be sourced separately.
