LuxHeat Radiant Floor Heating Cable System with Uncoupling Membrane & Floor Sensor

Original price $287.50
Original price $287.50 - Original price $1,675.00
Original price $287.50
Current price $230.00
$230.00 - $1,340.00
Current price $230.00

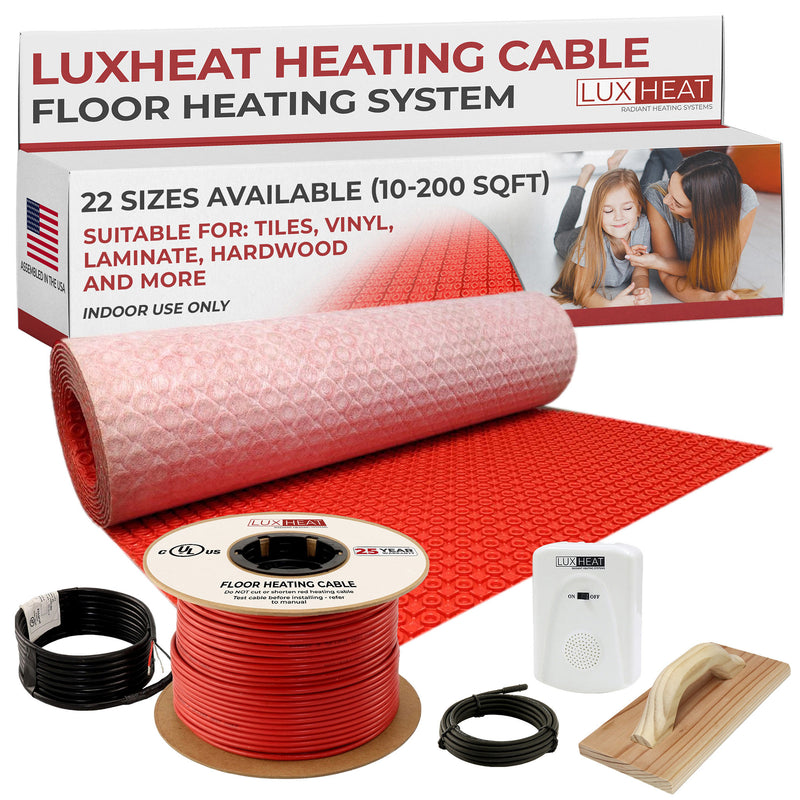

Introducing the LuxHeat Electric Floor Cable Heating Kit featuring Uncoupling Membrane and an Electric Floor Heating Cable for versatile Floor Heating installations. We also offer LuxHeat Radiant Floor Heating Cable with WiFi Thermostat.

This innovative solution redefines indoor heating, offering a blend of comfort and energy efficiency for any space.

The system uses radiant heating technology to deliver warmth throughout any room or indoor area where it is installed, with the added advantages of waterproofing and floor protection provided by the included uncoupling membrane.

  • 25 Year Warranty
  • c-UL-us Approved for USA & Canada
  • Safe for Wet Areas including showers

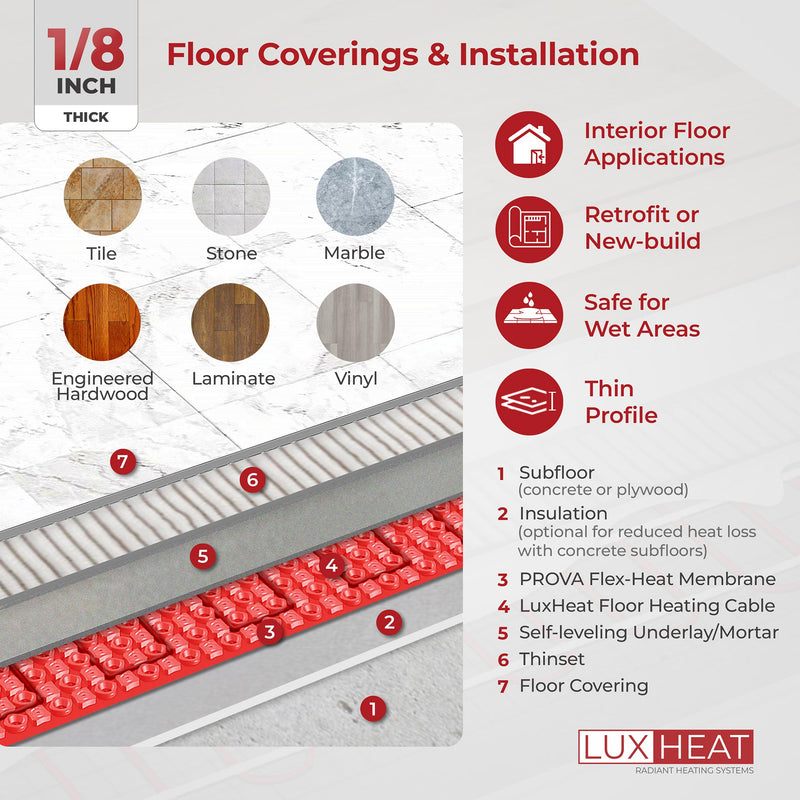

  • Suitable for under tile, laminate, vinyl, hardwood and more

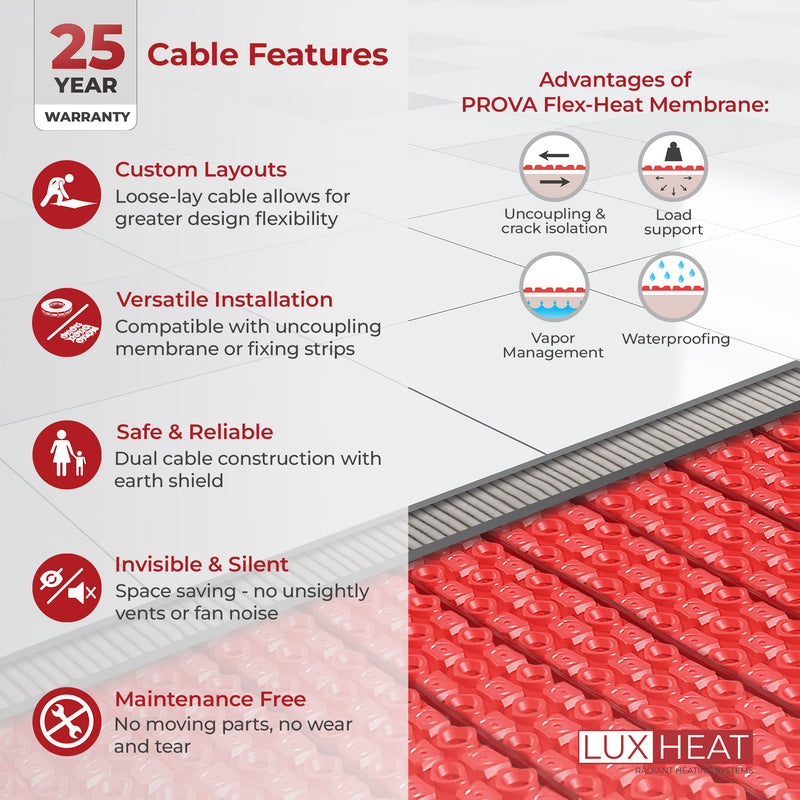

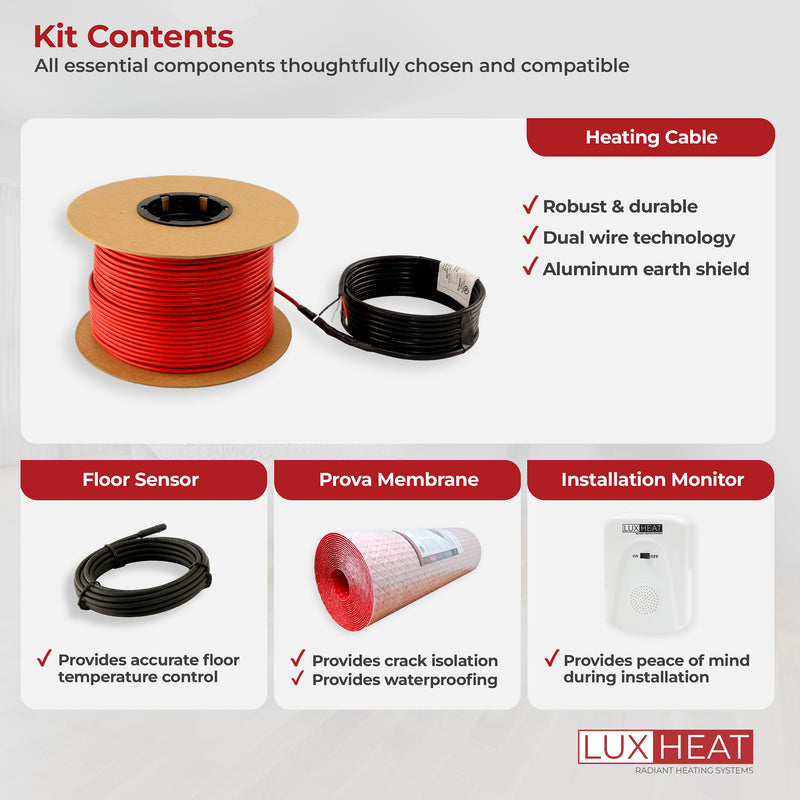

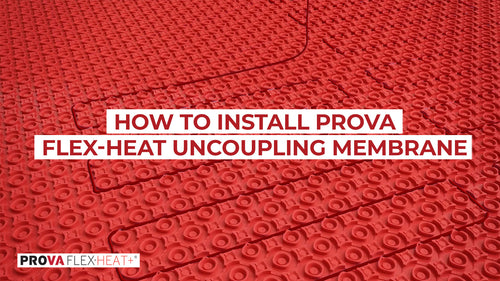

  • Includes PROVA FlexHeat+ Uncoupling Membrane for Floor Heating Cables
  • Additional Membrane coverage included
  • Excludes Thermostat
Technical Specifications

Voltage: 120V
Watts: 120W
Amps: 1.0A
Length: 40 linear ft
Membrane Size: 15sqft

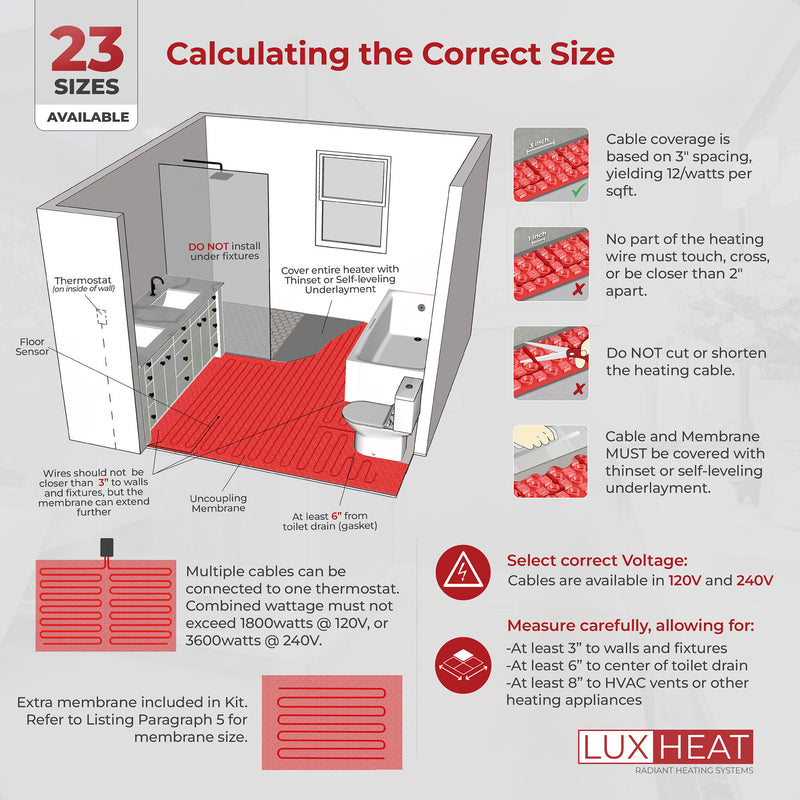

Cable Coverage @ 3" Spacing: 10sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 8.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 11.7 sqft
Cable Coverage @ 4" Spacing: 13.3 sqft

Voltage: 120V
Watts: 180W
Amps: 1.5A
Length: 60 linear ft
Membrane Size: 25sqft
Cable Coverage @ 3" Spacing: 15sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 12.5 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 17.5 sqft
Cable Coverage @ 4" Spacing: 20 sqft

Voltage: 120V
Watts: 240W
Amps: 2.0A
Length: 80 linear ft
Membrane Size: 30sqft
Cable Coverage @ 3" Spacing: 20sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 16.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 23.3 sqft
Cable Coverage @ 4" Spacing: 26.7 sqft

Voltage: 120V
Watts: 300W
Amps: 2.5A
Length: 100 linear ft
Membrane Size: 35sqft
Cable Coverage @ 3" Spacing: 25sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 20.8 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 29.1 sqft
Cable Coverage @ 4" Spacing: 33.3 sqft

Voltage: 120V
Watts: 360W
Amps: 3A
Length: 120 linear ft
Membrane Size: 45sqft
Cable Coverage @ 3" Spacing: 30sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 25 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 35 sqft
Cable Coverage @ 4" Spacing: 40 sqft

Voltage: 120V
Watts: 420W
Amps: 3.5A
Length: 140 linear ft
Membrane Size: 50sqft
Cable Coverage @ 3" Spacing: 35sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 29.2 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 40.8 sqft
Cable Coverage @ 4" Spacing: 46.7 sqft

Voltage: 120V
Watts: 480W
Amps: 4A
Length: 160 linear ft
Membrane Size: 50sqft
Cable Coverage @ 3" Spacing: 40sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 33.3sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 46.6sqft
Cable Coverage @ 4" Spacing: 53.3sqft

Voltage: 120V
Watts: 540W
Amps: 4.5A
Length: 180 linear ft
Membrane Size: 60sqft
Cable Coverage @ 3" Spacing: 45sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 37.5 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 52.4 sqft
Cable Coverage @ 4" Spacing: 60 sqft

Voltage: 120V
Watts: 600W
Amps: 5A
Length: 200 linear ft
Membrane Size: 70sqft
Cable Coverage @ 3" Spacing: 50sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 41.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 58.3 sqft
Cable Coverage @ 4" Spacing: 66.7 sqft

Voltage: 120V
Watts: 720W
Amps: 6A
Length: 240 linear ft
Membrane Size: 80sqft
Cable Coverage @ 3" Spacing: 60sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 50 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 69.9 sqft
Cable Coverage @ 4" Spacing: 80 sqft

Voltage: 120V
Watts: 840W
Amps: 7A
Length: 280 linear ft
Membrane Size: 90sqft
Cable Coverage @ 3" Spacing: 70sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 58.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 81.6 sqft
Cable Coverage @ 4" Spacing: 93.3 sqft

Voltage: 120V
Watts: 960W
Amps: 8A
Length: 320 linear ft
Membrane Size: 100sqft
Cable Coverage @ 3" Spacing: 80sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 66.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 93.2 sqft
Cable Coverage @ 4" Spacing: 106.7 sqft

Voltage: 120V
Watts: 1080W
Amps: 9A
Length: 360 linear ft
Membrane Size: 110sqft
Cable Coverage @ 3" Spacing: 90sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 75 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 104.9 sqft
Cable Coverage @ 4" Spacing: 120 sqft

Voltage: 120V
Watts: 1200W
Amps: 10A
Length: 400 linear ft
Membrane Size: 125sqft
Cable Coverage @ 3" Spacing: 100sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 83.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 116.5 sqft
Cable Coverage @ 4" Spacing: 133.3 sqft

Voltage: 120V
Watts: 1320W
Amps: 11.0A
Length: 440 linear ft
Membrane Size: 135sqft
Cable Coverage @ 3" Spacing: 110sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 91.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 128.2 sqft
Cable Coverage @ 4" Spacing: 146.7 sqft

Voltage: 120V
Watts: 1440W
Amps: 12A
Length: 480 linear ft
Membrane Size: 145sqft
Cable Coverage @ 3" Spacing: 120sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 100 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 139.8 sqft
Cable Coverage @ 4" Spacing: 160sqft

Voltage: 120V
Watts: 1560W
Amps: 13A
Length: 520 linear ft
Membrane Size: 161sqft
Cable Coverage @ 3" Spacing: 130sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 108.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 151.5 sqft
Cable Coverage @ 4" Spacing: 173.3sqft

Voltage: 120V
Watts: 1680W
Amps: 14A
Length: 560 linear ft
Membrane Size: 161sqft
Cable Coverage @ 3" Spacing: 140sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 116.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 163.1 sqft
Cable Coverage @ 4" Spacing: 186.7 sqft

Voltage: 120V
Watts: 1800W
Amps: 15A
Length: 600 linear ft
Membrane Size: 170sqft
Cable Coverage @ 3" Spacing: 150sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 125 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 174.8 sqft
Cable Coverage @ 4" Spacing: 200 sqft

Voltage: 240V
Watts: 480W
Amps: 2A
Length: 160 linear ft
Membrane Size: 50sqft
Cable Coverage @ 3" Spacing: 40sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 33.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 46.6 sqft
Cable Coverage @ 4" Spacing: 53.3 sqft

Voltage: 240V
Watts: 600W
Amps: 2.5A
Length: 200 linear ft
Membrane Size: 70sqft
Cable Coverage @ 3" Spacing: 50sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 41.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 58.3 sqft
Cable Coverage @ 4" Spacing: 66.7 sqft

Voltage: 240V
Watts: 720W
Amps: 3A
Length: 240 linear ft
Membrane Size: 80sqft
Cable Coverage @ 3" Spacing: 60sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 50 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 69.9 sqft
Cable Coverage @ 4" Spacing: 80 sqft

Voltage: 240V
Watts: 840W
Amps: 3.5A
Length: 280 linear ft
Membrane Size: 90sqft
Cable Coverage @ 3" Spacing: 70sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 58.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 81.6 sqft
Cable Coverage @ 4" Spacing: 93.3 sqft

Voltage: 240V
Watts: 960W
Amps: 4A
Length: 320 linear ft
Membrane Size: 100sqft
Cable Coverage @ 3" Spacing: 80sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 66.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 93.2 sqft
Cable Coverage @ 4" Spacing: 106.7 sqft

Voltage: 240V
Watts: 1080W
Amps: 4.5A
Length: 360 linear ft
Membrane Size: 110sqft
Cable Coverage @ 3" Spacing: 90sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 75 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 104.9 sqft
Cable Coverage @ 4" Spacing: 120 sqft

Voltage: 240V
Watts: 1200W
Amps: 5A
Length: 400 linear ft
Membrane Size: 125sqft
Cable Coverage @ 3" Spacing: 100sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 83.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 116.5 sqft
Cable Coverage @ 4" Spacing: 133.3 sqft

Voltage: 240V
Watts: 1440W
Amps: 6A
Length: 480 linear ft
Membrane Size: 145sqft
Cable Coverage @ 3" Spacing: 120sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 100 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 139.8 sqft
Cable Coverage @ 4" Spacing: 160 sqft

Voltage: 240V
Watts: 1680W
Amps: 7A
Length: 560 linear ft
Membrane Size: 161sqft
Cable Coverage @ 3" Spacing: 140sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 116.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 163.1 sqft
Cable Coverage @ 4" Spacing: 186.7 sqft

Voltage: 240V
Watts: 1920W
Amps: 8A
Length: 640 linear ft
Membrane Size: 186sqft
Cable Coverage @ 3" Spacing: 160sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 133.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 186.4 sqft
Cable Coverage @ 4" Spacing: 213.3 sqft

Voltage: 240V
Watts: 2160W
Amps: 9A
Length: 720 linear ft
Membrane Size: 206sqft
Cable Coverage @ 3" Spacing: 180sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 150 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 209.7 sqft
Cable Coverage @ 4" Spacing: 240 sqft

Voltage: 240V
Watts: 2400W
Amps: 10A
Length: 800 linear ft
Membrane Size: 221sqft
Cable Coverage @ 3" Spacing: 200sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 166.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 233 sqft
Cable Coverage @ 4" Spacing: 266.7 sqft

Select Voltage: 120V
Select Size: 10 sqft
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Kit Contents

Features & Benefits

Features & Benefits

The LuxHeat radiant floor heating cable kit and uncoupling membrane boasts the following features:

✔ Dual insulated heating wire with single cold lead.

✔ Listed by cULus for use in both the USA and Canada, specifically designated as safe for wet locations.

✔ Achieve consistent heat distribution at 12 watts per sqft using 3-inch spacing.

✔ Experience ultra-low electromagnetic field (EMF) with advanced dual conductor technology and foil sheath.

✔ The heater wire, with a thickness of less than 5/32 inches, ensures a minimal impact on finished floor height.

✔ Install the cable any arrangement or configuration to accommodate your floor layout.

✔ This product is recommended by health professionals for individuals with allergies.

✔ Ensure safety for children, elderly, and pets with no hot, exposed, or moving parts.

✔ Eliminate unattractive heaters, storage hassles, maintenance, and unwanted smells.

Membrane_installation_3_x_2

Membrane Features

✔ Designed for commercial and residential interior tile applications. Suitable for both plywood and concrete subfloors.

✔ Protects and preserves your floor covering using crack isolation technology and vapor management.

✔ Vapor management system employs air channels underneath the fleece layer to dissipate vapor and moisture.

✔ Compatible with multiple heating cable sizes, ranging up to 0.2” (5mm) diameter.

✔ Allows for 3” (7.6cm) cable spacing to easily achieve the ideal heat distribution of 12 watts/sqft.

✔ Membrane Thickness: 0.26" (6.5 mm). Can be used to create a smooth transition to higher floors.

✔ Achieved an EXTRA HEAVY Performance Rating according to the ASTM C627 Standard.

Floor Sensor Features

Floor Sensor Features

The Floor Sensor provides the accuracy your heating system needs, improving efficiency while ensuring precision floor temperature measurement.

✔ Precise and stable readings

✔ NTC 10K ohm sensor at 77°F (25°C)

✔ 15 ft (4.3 m) length

✔ Works with most radiant floor heating

✔ Compatible with standard radiant floor heating thermostats

Installation Monitor Features

Installation Monitor Features

Ensure a flawless floor heating installation with the LuxHeat Installation Monitor, offering real-time continuity monitoring and instant alerts of damage.

✔ Green light confirms a properly working system.

✔ Loud screamer alerts you to any heating element damage.

✔ Tracks system continuity and sounds an alarm if a break is detected.

✔ Compatible with all Electric Heating Cable and Mat Systems.

✔ Reusable for multiple installations.

How To Select the Correct Size Heating Cable

how-to-measure-cable-with-membrane
cable-with-membrane-important-notes
Safe_Reliable2
Easy_to_Install
Luxury_and_Comfort
Low_Running_Cost
Adds_Value
Silent_Invisible2

Testimonials

⭐️⭐️⭐️⭐️⭐️

Tina M. Floridia
(Customer - United States)

Product arrived earlier then expected and was super easy to install. Just make sure you measure your room exactly because you can not cut the cable.

⭐️⭐️⭐️⭐️⭐️

Tracy Gregg

(Customer - United States)

This system works like a charm. It is extremely easy to install. Just do it…you won’t regret having warm floors!

⭐️⭐️⭐️⭐️⭐️

Emily Engberson

(Customer - United States)

Great product, easy to install.
