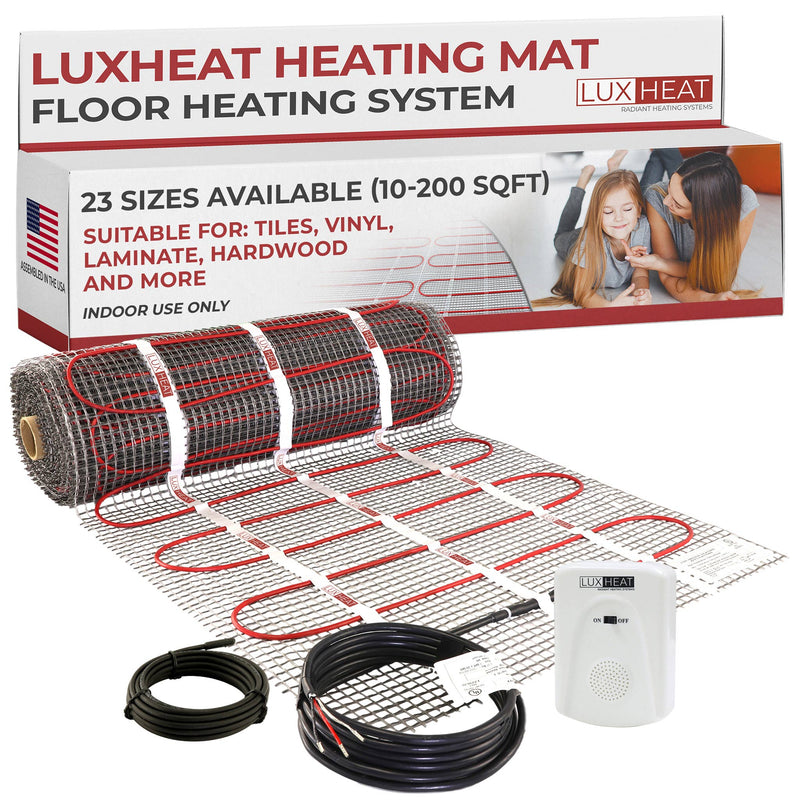

LuxHeat Radiant Floor Heating Mat with Floor Sensor

$97.00
$97.00 - $1,117.00
$97.00
$74.00
$74.00 - $859.00
$74.00

Delight in the aesthetic appeal and functionality of tile, vinyl, or hardwood flooring without sacrificing Comfort.

Our LuxHeat Radiant Floor Heating Mat is one of the most robust, easy-to-install floor heating systems available on the market today.

  • 25 Year Warranty
  • 12 watts/sq. foot
  • cULus Approved for USA & Canada
  • Safe for Wet Areas including showers
  • Mat dimensions: 20" wide, length varies according to sq. feet

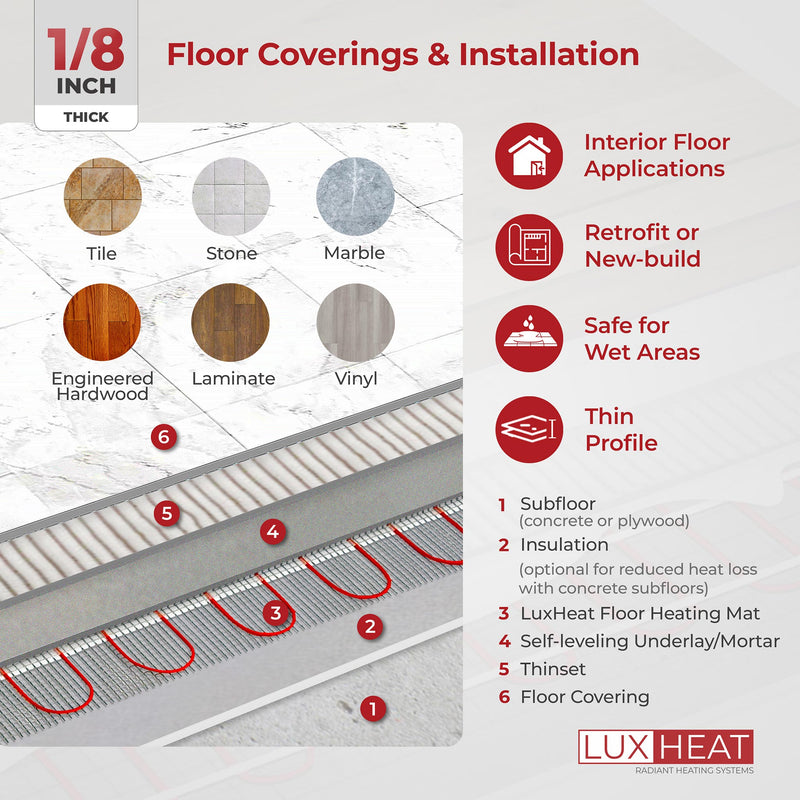

  • Suitable for under tile, laminate, vinyl, hardwood and more
  • Excludes Thermostat
    Technical Specifications

    Voltage: 120V
    Watts: 120W
    Amps: 1.0A
    Width: 1.64ft
    Length: 6.10ft
    Coverage: 10sqft

    Voltage: 120V
    Watts: 180W
    Amps: 1.5A
    Width: 1.64ft
    Length: 9.15ft
    Coverage: 15sqft

    Voltage: 120V
    Watts: 240W
    Amps: 2A
    Width: 1.64ft
    Length: 12.2ft
    Coverage: 20sqft

    Voltage: 120V
    Watts: 300W
    Amps: 2.5A
    Width: 1.64ft
    Length: 15.24ft
    Coverage: 25sqft

    Voltage: 120V
    Watts: 360W
    Amps: 3A
    Width: 1.64ft
    Length: 18.29ft
    Coverage: 30sqft

    Voltage: 120V
    Watts: 420W
    Amps: 3.5A
    Width: 1.64ft
    Length: 21.34ft
    Coverage: 35sqft

    Voltage: 120V
    Watts: 480W
    Amps: 4A
    Width: 1.64ft
    Length: 24.39ft
    Coverage: 40sqft

    Voltage: 120V
    Watts: 540W
    Amps: 4.5A
    Width: 1.64ft
    Length: 27.44ft
    Coverage: 45sqft

    Voltage: 120V
    Watts: 600W
    Amps: 5A
    Width: 1.64ft
    Length: 30.49ft
    Coverage: 50sqft

    Voltage: 120V
    Watts: 720W
    Amps: 6A
    Width: 1.64ft
    Length: 36.59ft
    Coverage: 60sqft

    Voltage: 120V
    Watts: 840W
    Amps: 7A
    Width: 1.64ft
    Length: 42.68ft
    Coverage: 70sqft

    Voltage: 120V
    Watts: 960W
    Amps: 8A
    Width: 1.64ft
    Length: 48.78ft
    Coverage: 80sqft

    Voltage: 120V
    Watts: 1080W
    Amps: 9A
    Width: 1.64ft
    Length: 54.88ft
    Coverage: 90sqft

    Voltage: 120V
    Watts: 1200W
    Amps: 10A
    Width: 1.64ft
    Length: 60.98ft
    Coverage: 100sqft

    Voltage: 120V
    Watts: 1320W
    Amps: 11A
    Width: 1.64ft
    Length: 67.07ft
    Coverage: 110sqft

    Supplied as two heating mats

    Voltage: 120V
    Watts: 1440W
    Amps: 12A
    Width: 1.64ft
    Length: 73.17ft
    Coverage: 120sqft

    Supplied as two heating mats

    Voltage: 120V
    Watts: 1560W
    Amps: 13A
    Width: 1.64ft
    Length: 79.27ft
    Coverage: 130sqft

    Supplied as two heating mats

    Voltage: 120V
    Watts: 1680W
    Amps: 14A
    Width: 1.64ft
    Length: 85.37ft
    Coverage: 140sqft

    Supplied as two heating mats

    Voltage: 120V
    Watts: 1800W
    Amps: 15A
    Width: 1.64ft
    Length: 91.46ft
    Coverage: 150sqft

    Supplied as two heating mats

    Voltage: 240V
    Watts: 420W
    Amps: 1.8A
    Width: 1.64ft
    Length: 21.34ft
    Coverage: 35sqft

    Voltage: 240V
    Watts: 480W
    Amps: 2A
    Width: 1.64ft
    Length: 24.39ft
    Coverage: 40sqft

    Voltage: 240V
    Watts: 540W
    Amps: 2.3A
    Width: 1.64ft
    Length: 27.44ft
    Coverage: 45sqft

    Voltage: 240V
    Watts: 600W
    Amps: 2.5A
    Width: 1.64ft
    Length: 30.49ft
    Coverage: 50sqft

    Voltage: 240V
    Watts: 660W
    Amps: 2.8A
    Width: 1.64ft
    Length: 33.54ft
    Coverage: 55sqft

    Voltage: 240V
    Watts: 720W
    Amps: 3A
    Width: 1.64ft
    Length: 36.59ft
    Coverage: 60sqft

    Voltage: 240V
    Watts: 840W
    Amps: 3.5A
    Width: 1.64ft
    Length: 42.68ft
    Coverage: 70sqft

    Voltage: 240V
    Watts: 960W
    Amps: 4A
    Width: 1.64ft
    Length: 48.78ft
    Coverage: 80sqft

    Voltage: 240V
    Watts: 1080W
    Amps: 4.5A
    Width: 1.64ft
    Length: 54.88ft
    Coverage: 90sqft

    Voltage: 240V
    Watts: 1200W
    Amps: 5A
    Width: 1.64ft
    Length: 60.98ft
    Coverage: 100sqft

    Voltage: 240V
    Watts: 1440W
    Amps: 6A
    Width: 1.64ft
    Length: 73.17ft
    Coverage: 120sqft

    Voltage: 240V
    Watts: 1680W
    Amps: 7A
    Width: 1.64ft
    Length: 85.37ft
    Coverage: 140sqft

    Voltage: 240V
    Watts: 1920W
    Amps: 8A
    Width: 1.64ft
    Length: 97.56ft
    Coverage: 160sqft

    Voltage: 240V
    Watts: 2160W
    Amps: 9A
    Width: 1.64ft
    Length: 109.76ft
    Coverage: 180sqft

    Voltage: 240V
    Watts: 2400W
    Amps: 10
    Width: 1.64ft
    Length: 121.95ft
    Coverage: 200sqft

    Select Voltage: 120V
    Select Size: 10 sqft
    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Visa

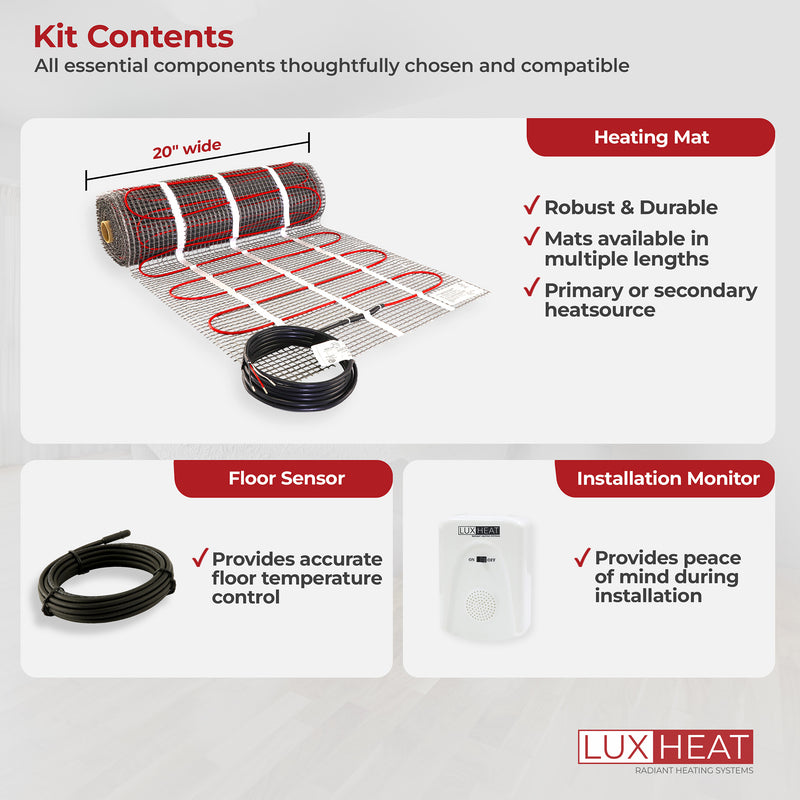

    Kit Contents

    kit-component-heating-mat
    kit-component-floor-sensor
    kit-component-installation-monitor
    Mat_Close_Up_bbaf190f-d3e2-4672-8c23-7f8f8771d8f2

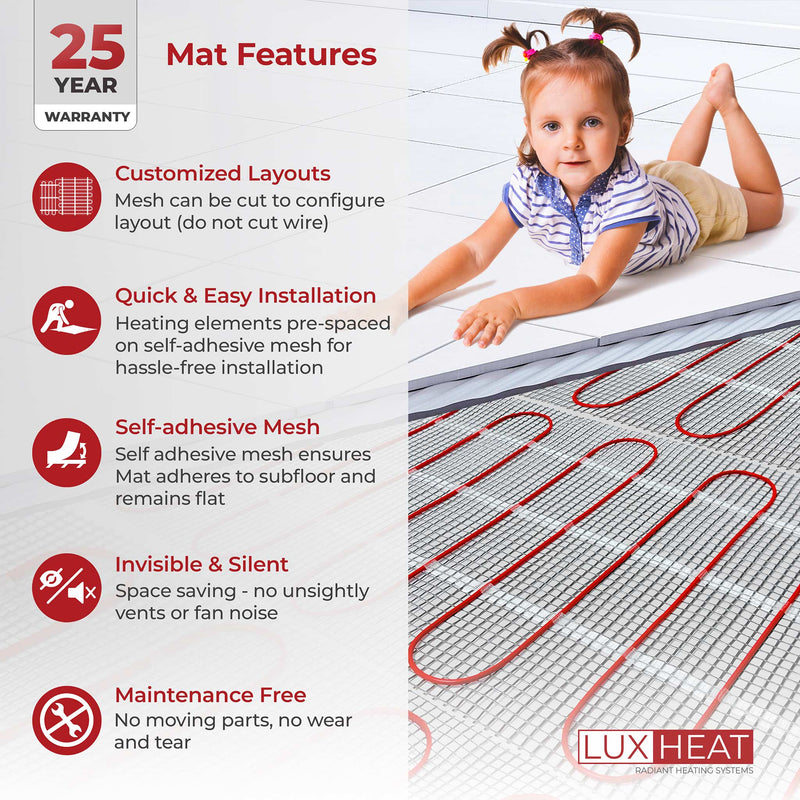

    Features & Benefits

    ✔Dual insulated heating wire with single cold lead.

    ✔Listed by cULus for use in both the USA and Canada, specifically designated as safe for wet locations.

    ✔Even heat distribution is achieved with pre-spaced wires every 3 inches, delivering 12 watts per square foot.

    ✔Experience an ultra-low electromagnetic field (EMF) with the incorporation of dual conductor technology, an aluminum foil sheath.

    ✔The finished floor height is minimally affected as the heater wire measures less than 5/32 inches in thickness.

    ✔The mat will remain flat even when cut and flipped, thanks to the adhesive layer on one side and double-sided tape on the other.

    ✔This product is endorsed by health professionals for individuals dealing with allergies.

    ✔Ensure safety for children, elderly, and pets by eliminating hot, exposed, or moving parts.

    ✔Attain personal comfort and affordability with precise and intelligent control.

    ✔Say goodbye to unattractive heaters, storage hassles, maintenance, and unpleasant smells.

    Floor Sensor Features

    Floor Sensor Features

    Keep your heated floors comfortable and efficient with the Floor Sensor. It provides reliable temperature readings and enables floor protection settings for heat-sensitive surfaces.

    ✔ Precision temperature measurement

    ✔ NTC 10K ohm sensor (77°F/25°C)

    ✔ 15 ft (4.3 m) cord length

    ✔ Compatible with most radiant heating systems

    ✔ Works with standard radiant heating thermostats and controllers

    Installation Monitor Features

    Installation Monitor Features

    For worry-free installation of your electric floor heating system, the LuxHeat Installation Alarm provides instant alerts and continuous monitoring.

    ✔ Ensures proper continuity by actively measuring system connections.

    ✔ Loud alarm will sound if heating elements are damaged.

    ✔ Universally compatible with all Electric Heating Cable and Mat Systems.

    ✔ Green indicator confirms good continuity.

    ✔ Can be reused multiple times.

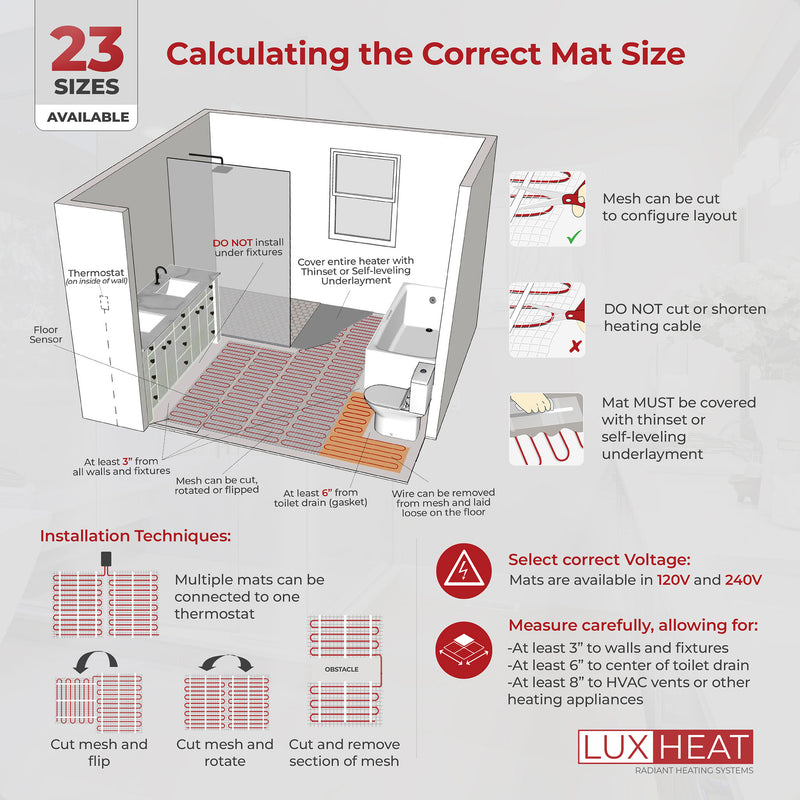

    How To Select the Correct Size Heating Mat

    how-to-measure-mat
    mat-important-notes

    How To Cut & Turn Your Mat

    The mesh can be cut and turned to suit your layout. The Heating Cable cannot be cut or shortened.

    mat-rotate-example
    mat-flip-example
    mat-obstacle-example
    mat-remove-wire-example
    Safe_Reliable2
    Easy_to_Install
    Luxury_and_Comfort
    Low_Running_Cost
    Adds_Value
    Silent_Invisible2
