LuxHeat Radiant Floor Heating Mat System with Non Programmable Thermostat

Sale Sale
$214.00
$214.00 - $1,234.00
$214.00
$164.00
$164.00 - $949.00
$164.00

Savor the beauty and functionality of tile, vinyl, or hardwood floors without any compromise in Comfort.

Our LuxHeat Mat, together with OJ Microline's intuitive and energy-efficient thermostat, brings you the pinnacle of luxury, comfort, reliability, and affordability.

  • 25 Year Warranty
  • 12 watts/sq. foot
  • cULus Approved for USA & Canada
  • Safe for Wet Areas including showers
  • Mat dimensions: 20" wide, length varies according to sq. feet

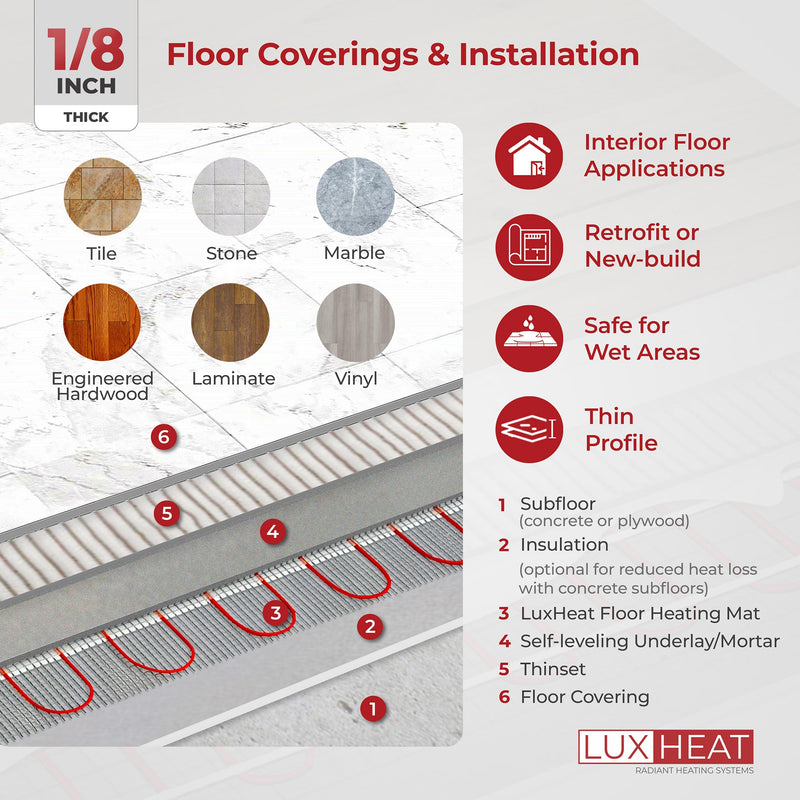

  • Suitable for under tile, laminate, vinyl, hardwood and more
  • Includes OJ Microline UTN4-4999 Non-Programmable Thermostat
    Technical Specifications

    Voltage: 120V
    Watts: 120W
    Amps: 1.0A
    Width: 1.64ft
    Length: 6.10ft
    Coverage: 10sqft

    Voltage: 120V
    Watts: 180W
    Amps: 1.5A
    Width: 1.64ft
    Length: 9.15ft
    Coverage: 15sqft

    Voltage: 120V
    Watts: 240W
    Amps: 2A
    Width: 1.64ft
    Length: 12.2ft
    Coverage: 20sqft

    Voltage: 120V
    Watts: 300W
    Amps: 2.5A
    Width: 1.64ft
    Length: 15.24ft
    Coverage: 25sqft

    Voltage: 120V
    Watts: 360W
    Amps: 3A
    Width: 1.64ft
    Length: 18.29ft
    Coverage: 30sqft

    Voltage: 120V
    Watts: 420W
    Amps: 3.5A
    Width: 1.64ft
    Length: 21.34ft
    Coverage: 35sqft

    Voltage: 120V
    Watts: 480W
    Amps: 4A
    Width: 1.64ft
    Length: 24.39ft
    Coverage: 40sqft

    Voltage: 120V
    Watts: 540W
    Amps: 4.5A
    Width: 1.64ft
    Length: 27.44ft
    Coverage: 45sqft

    Voltage: 120V
    Watts: 600W
    Amps: 5A
    Width: 1.64ft
    Length: 30.49ft
    Coverage: 50sqft

    Voltage: 120V
    Watts: 720W
    Amps: 6A
    Width: 1.64ft
    Length: 36.59ft
    Coverage: 60sqft

    Voltage: 120V
    Watts: 840W
    Amps: 7A
    Width: 1.64ft
    Length: 42.68ft
    Coverage: 70sqft

    Voltage: 120V
    Watts: 960W
    Amps: 8A
    Width: 1.64ft
    Length: 48.78ft
    Coverage: 80sqft

    Voltage: 120V
    Watts: 1080W
    Amps: 9A
    Width: 1.64ft
    Length: 54.88ft
    Coverage: 90sqft

    Voltage: 120V
    Watts: 1200W
    Amps: 10A
    Width: 1.64ft
    Length: 60.98ft
    Coverage: 100sqft

    Voltage: 120V
    Watts: 1320W
    Amps: 11A
    Width: 1.64ft
    Length: 67.07ft
    Coverage: 110sqft

    Supplied as two heating mats

    Voltage: 120V
    Watts: 1440W
    Amps: 12A
    Width: 1.64ft
    Length: 73.17ft
    Coverage: 120sqft

    Supplied as two heating mats

    Voltage: 120V
    Watts: 1560W
    Amps: 13A
    Width: 1.64ft
    Length: 79.27ft
    Coverage: 130sqft

    Supplied as two heating mats

    Voltage: 120V
    Watts: 1680W
    Amps: 14A
    Width: 1.64ft
    Length: 85.37ft
    Coverage: 140sqft

    Supplied as two heating mats

    Voltage: 120V
    Watts: 1800W
    Amps: 15A
    Width: 1.64ft
    Length: 91.46ft
    Coverage: 150sqft

    Supplied as two heating mats

    Voltage: 240V
    Watts: 420W
    Amps: 1.8A
    Width: 1.64ft
    Length: 21.34ft
    Coverage: 35sqft

    Voltage: 240V
    Watts: 480W
    Amps: 2A
    Width: 1.64ft
    Length: 24.39ft
    Coverage: 40sqft

    Voltage: 240V
    Watts: 540W
    Amps: 2.3A
    Width: 1.64ft
    Length: 27.44ft
    Coverage: 45sqft

    Voltage: 240V
    Watts: 600W
    Amps: 2.5A
    Width: 1.64ft
    Length: 30.49ft
    Coverage: 50sqft

    Voltage: 240V
    Watts: 660W
    Amps: 2.8A
    Width: 1.64ft
    Length: 33.54ft
    Coverage: 55sqft

    Voltage: 240V
    Watts: 720W
    Amps: 3A
    Width: 1.64ft
    Length: 36.59ft
    Coverage: 60sqft

    Voltage: 240V
    Watts: 840W
    Amps: 3.5A
    Width: 1.64ft
    Length: 42.68ft
    Coverage: 70sqft

    Voltage: 240V
    Watts: 960W
    Amps: 4A
    Width: 1.64ft
    Length: 48.78ft
    Coverage: 80sqft

    Voltage: 240V
    Watts: 1080W
    Amps: 4.5A
    Width: 1.64ft
    Length: 54.88ft
    Coverage: 90sqft

    Voltage: 240V
    Watts: 1200W
    Amps: 5A
    Width: 1.64ft
    Length: 60.98ft
    Coverage: 100sqft

    Voltage: 240V
    Watts: 1440W
    Amps: 6A
    Width: 1.64ft
    Length: 73.17ft
    Coverage: 120sqft

    Voltage: 240V
    Watts: 1680W
    Amps: 7A
    Width: 1.64ft
    Length: 85.37ft
    Coverage: 140sqft

    Voltage: 240V
    Watts: 1920W
    Amps: 8A
    Width: 1.64ft
    Length: 97.56ft
    Coverage: 160sqft

    Voltage: 240V
    Watts: 2160W
    Amps: 9A
    Width: 1.64ft
    Length: 109.76ft
    Coverage: 180sqft

    Voltage: 240V
    Watts: 2400W
    Amps: 10
    Width: 1.64ft
    Length: 121.95ft
    Coverage: 200sqft

    Select Voltage: 120V
    Select Size: 10 sqft
    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Meta Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Visa

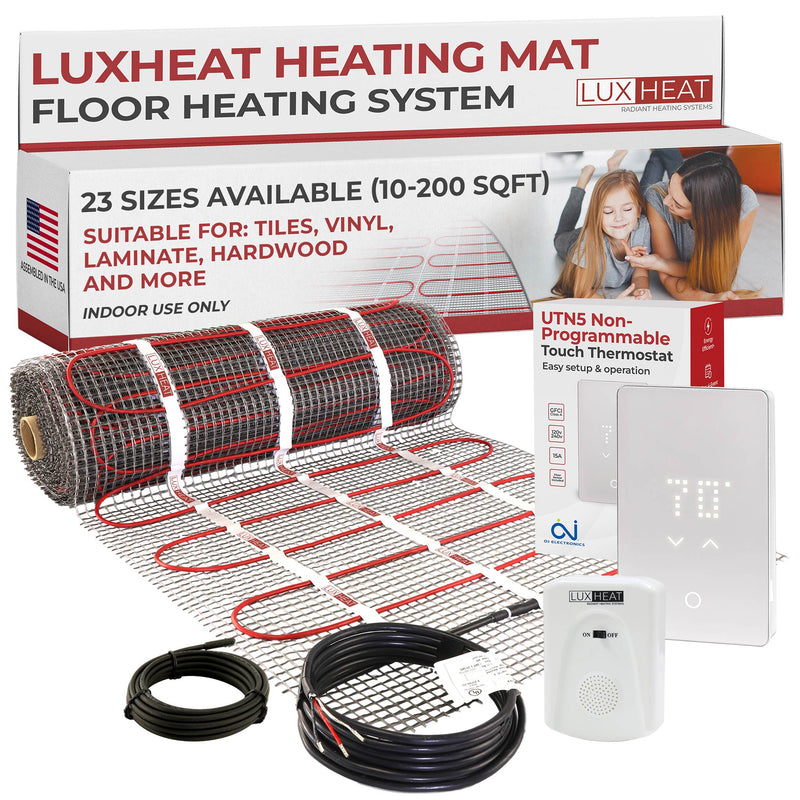

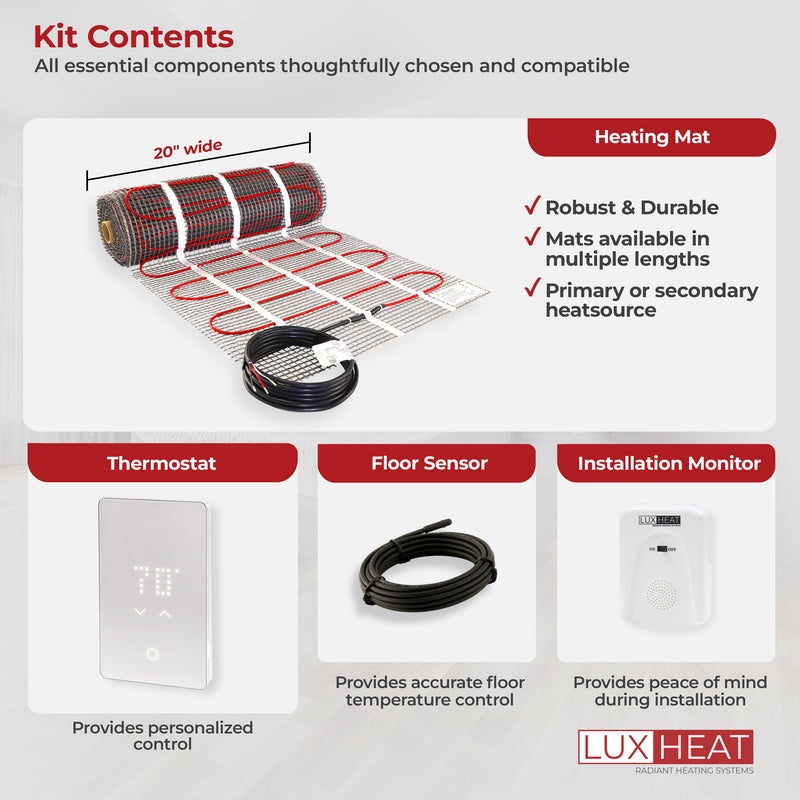

    Kit Contents

    This floor heating mat and non-programmable thermostat kit for sale includes all the key components for a functional and luxurious Radiant Floor Heating System.

    kit-component-heating-mat
    kit-component-nonprogrammable-thermostat
    kit-component-floor-sensor
    kit-component-installation-monitor
    Mat_Close_Up_bbaf190f-d3e2-4672-8c23-7f8f8771d8f2

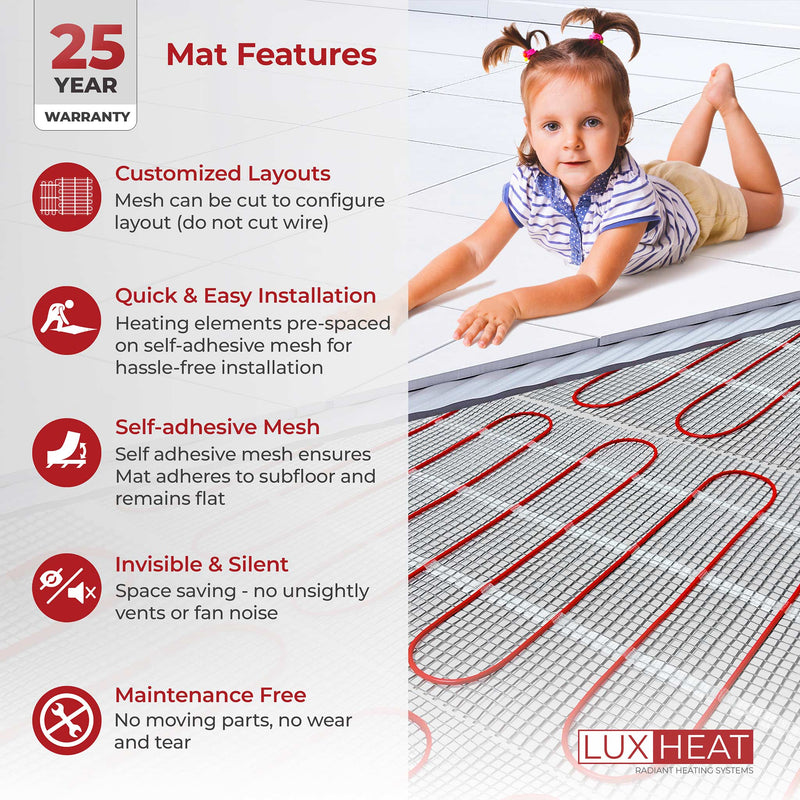

    Features & Benefits

    ✔Designed with double insulation and a single cold lead, providing added safety.

    ✔Certified by cULus for both the USA and Canada, identified as safe for wet locations.

    ✔The ideal heat distribution is achieved with 12 watts per square foot at 3-inch spacing.

    ✔Experience ultra-low electromagnetic field (EMF) with advanced dual conductor technology and foil sheath.

    ✔The finished floor height experiences minimal impact because the heater wire is thinner than 5/32 inches.

    ✔The self-adhesive mesh on one side and double-sided tape on the other ensure that the mat stays flat even when cut and flipped.

    ✔Health professionals endorse this product specifically for people dealing with allergies.

    ✔Ensure your personal comfort and affordability with accurate and intelligent control.

    ✔Say goodbye to unattractive heaters, storage hassles, maintenance, or unpleasant smells.

    ✔Provide safety for children, elderly, and pets with no hot, exposed, or moving parts.

    UTN4_Lifestyle_Image_1._V2

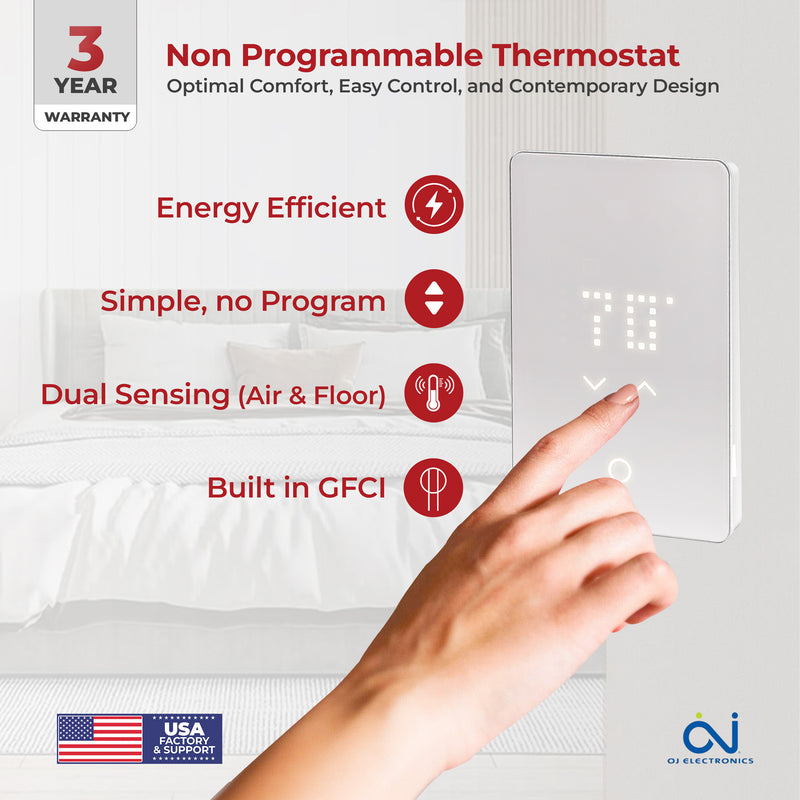

    Thermostat Features

    ✔Non-Programmable - Easy to operate and install - no setup required.

    ✔Listed by cULus for use in both the USA and Canada.

    ✔Certified as safe for wet room environments.

    ✔ 3 Year Factory Warranty.

    ✔Equipped with a built-in Class A Ground Fault Circuit Interrupter (GFCI) 5mA.

    ✔Operates on dual voltage: 120 volts or 240 volts.

    ✔Capable of dual sensing for both air and floor temperatures.

    ✔Load specifications: 15 amps, supporting 1800 watts at 120 volts or 3600 watts at 240 volts.

    ✔Modern, sleek design to compliment any room in your home.

    ✔Floor sensing to safeguard and protect the flooring, ensuring its durability and longevity.

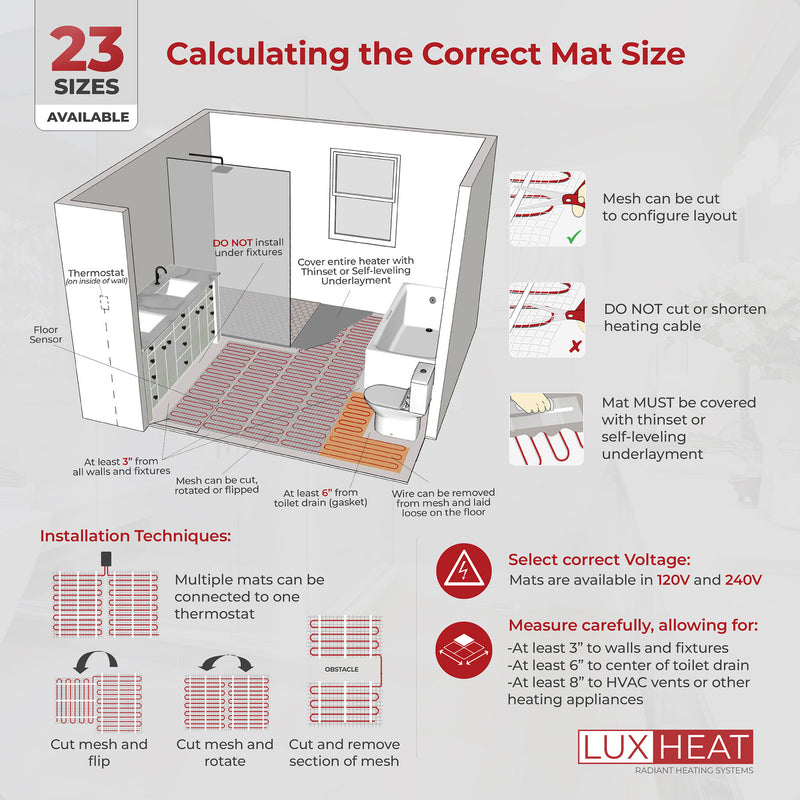

    How To Select the Correct Size Heating Mat

    how-to-measure-mat
    mat-important-notes

    How To Cut & Turn Your Mat

    The mesh can be cut and turned to suit your layout. The Heating Cable cannot be cut or shortened.

    mat-rotate-example
    mat-flip-example
    mat-obstacle-example
    mat-remove-wire-example
    Safe_Reliable2
    Easy_to_Install
    Luxury_and_Comfort
    Low_Running_Cost
    Adds_Value
    Silent_Invisible2
