LuxHeat Radiant Floor Heating Mat System with Non Programmable Thermostat

$227.00

$227.00 - $1,260.00

$227.00

$174.00

$174.00 - $969.00

$174.00

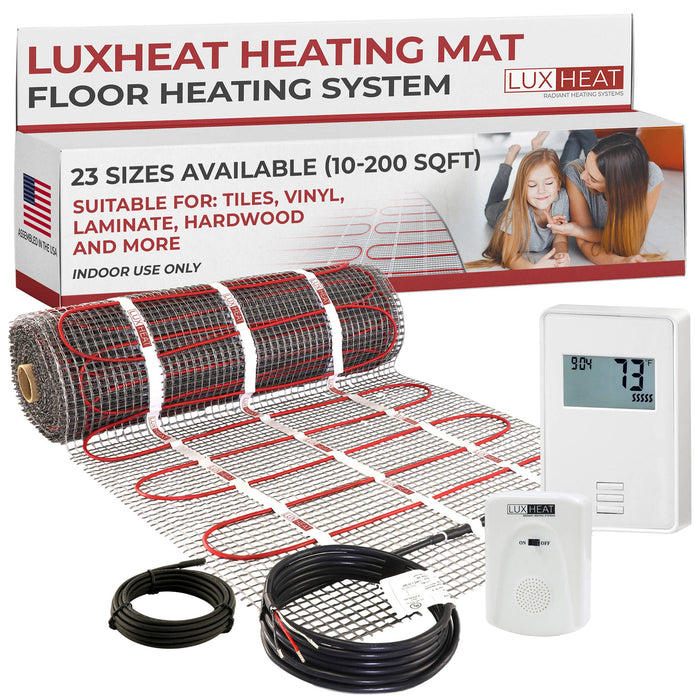

Designed for uncomplicated installations, the LuxHeat pre-spaced heating mat features factory-secured cable spacing on a flexible 20" mesh backing that rolls out easily in standard rectangular rooms. This format simplifies layout while delivering consistent 12 watts per square foot radiant warmth beneath tile, laminate, vinyl, or engineered hardwood.

Paired with the UTN5 LED touch thermostat, this system provides clean, intuitive temperature control without programming or WiFi setup. Simply set your temperature and enjoy steady, comfortable floor warmth.

Easy Roll-Out Mat Installation - Factory-spaced cable on flexible mesh simplifies layout and reduces installation complexity.

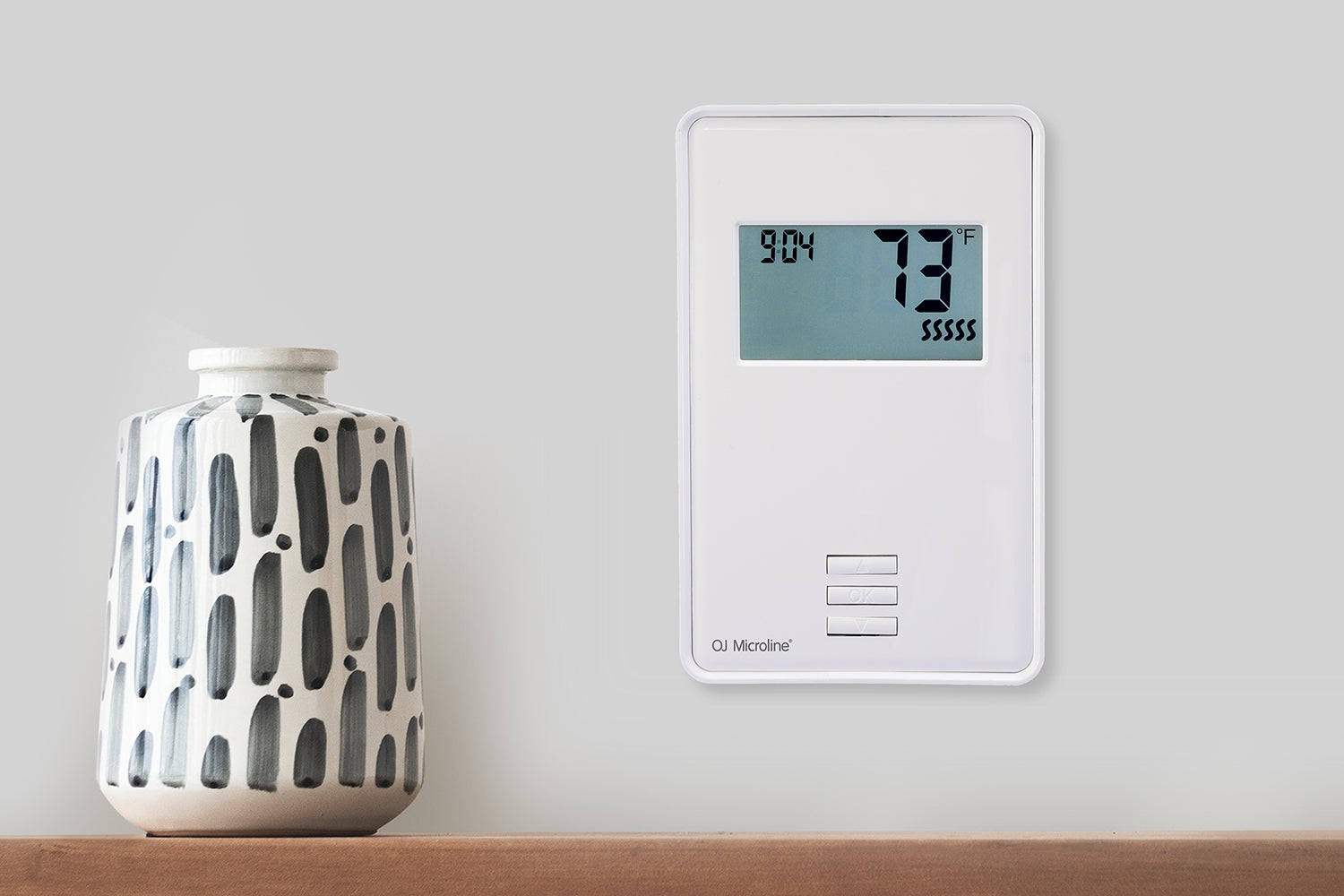

UTN5 Non-Programmable LED Touch Thermostat - Adjust temperature with a clean, modern interface — no programming needed.
Consistent 12 Watts per Sq. Ft. Output - Engineered for steady, even radiant warmth across the heated area.
Low-Profile Heating System - Installs beneath tile, laminate, vinyl, or engineered hardwood without significantly raising finished floor height.
Mat Dimensions - 20" wide, length varies according to sq. feet.
cULus Listed & Safe for Wet Areas - Certified for installation in the USA and Canada and approved for use in showers, and other wet locations.
25-Year Heating System Warranty - Built for dependable long-term performance.

Technical Specifications

Voltage: 120V
Watts: 120W
Amps: 1.0A
Width: 1.64ft
Length: 6.10ft
Coverage: 10sqft

Voltage: 120V
Watts: 180W
Amps: 1.5A
Width: 1.64ft
Length: 9.15ft
Coverage: 15sqft

Voltage: 120V
Watts: 240W
Amps: 2A
Width: 1.64ft
Length: 12.2ft
Coverage: 20sqft

Voltage: 120V
Watts: 300W
Amps: 2.5A
Width: 1.64ft
Length: 15.24ft
Coverage: 25sqft

Voltage: 120V
Watts: 360W
Amps: 3A
Width: 1.64ft
Length: 18.29ft
Coverage: 30sqft

Voltage: 120V
Watts: 420W
Amps: 3.5A
Width: 1.64ft
Length: 21.34ft
Coverage: 35sqft

Voltage: 120V
Watts: 480W
Amps: 4A
Width: 1.64ft
Length: 24.39ft
Coverage: 40sqft

Voltage: 120V
Watts: 540W
Amps: 4.5A
Width: 1.64ft
Length: 27.44ft
Coverage: 45sqft

Voltage: 120V
Watts: 600W
Amps: 5A
Width: 1.64ft
Length: 30.49ft
Coverage: 50sqft

Voltage: 120V
Watts: 720W
Amps: 6A
Width: 1.64ft
Length: 36.59ft
Coverage: 60sqft

Voltage: 120V
Watts: 840W
Amps: 7A
Width: 1.64ft
Length: 42.68ft
Coverage: 70sqft

Voltage: 120V
Watts: 960W
Amps: 8A
Width: 1.64ft
Length: 48.78ft
Coverage: 80sqft

Voltage: 120V
Watts: 1080W
Amps: 9A
Width: 1.64ft
Length: 54.88ft
Coverage: 90sqft

Voltage: 120V
Watts: 1200W
Amps: 10A
Width: 1.64ft
Length: 60.98ft
Coverage: 100sqft

Voltage: 120V
Watts: 1320W
Amps: 11A
Width: 1.64ft
Length: 67.07ft
Coverage: 110sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1440W
Amps: 12A
Width: 1.64ft
Length: 73.17ft
Coverage: 120sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1560W
Amps: 13A
Width: 1.64ft
Length: 79.27ft
Coverage: 130sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1680W
Amps: 14A
Width: 1.64ft
Length: 85.37ft
Coverage: 140sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1800W
Amps: 15A
Width: 1.64ft
Length: 91.46ft
Coverage: 150sqft

Supplied as two heating mats

Voltage: 240V
Watts: 420W
Amps: 1.8A
Width: 1.64ft
Length: 21.34ft
Coverage: 35sqft

Voltage: 240V
Watts: 480W
Amps: 2A
Width: 1.64ft
Length: 24.39ft
Coverage: 40sqft

Voltage: 240V
Watts: 540W
Amps: 2.3A
Width: 1.64ft
Length: 27.44ft
Coverage: 45sqft

Voltage: 240V
Watts: 600W
Amps: 2.5A
Width: 1.64ft
Length: 30.49ft
Coverage: 50sqft

Voltage: 240V
Watts: 660W
Amps: 2.8A
Width: 1.64ft
Length: 33.54ft
Coverage: 55sqft

Voltage: 240V
Watts: 720W
Amps: 3A
Width: 1.64ft
Length: 36.59ft
Coverage: 60sqft

Voltage: 240V
Watts: 840W
Amps: 3.5A
Width: 1.64ft
Length: 42.68ft
Coverage: 70sqft

Voltage: 240V
Watts: 960W
Amps: 4A
Width: 1.64ft
Length: 48.78ft
Coverage: 80sqft

Voltage: 240V
Watts: 1080W
Amps: 4.5A
Width: 1.64ft
Length: 54.88ft
Coverage: 90sqft

Voltage: 240V
Watts: 1200W
Amps: 5A
Width: 1.64ft
Length: 60.98ft
Coverage: 100sqft

Voltage: 240V
Watts: 1440W
Amps: 6A
Width: 1.64ft
Length: 73.17ft
Coverage: 120sqft

Voltage: 240V
Watts: 1680W
Amps: 7A
Width: 1.64ft
Length: 85.37ft
Coverage: 140sqft

Voltage: 240V
Watts: 1920W
Amps: 8A
Width: 1.64ft
Length: 97.56ft
Coverage: 160sqft

Voltage: 240V
Watts: 2160W
Amps: 9A
Width: 1.64ft
Length: 109.76ft
Coverage: 180sqft

Voltage: 240V
Watts: 2400W
Amps: 10
Width: 1.64ft
Length: 121.95ft
Coverage: 200sqft

Features & Benefits

✔Designed with double insulation and a single cold lead, providing added safety.

✔Certified by cULus for both the USA and Canada, identified as safe for wet locations.

✔The ideal heat distribution is achieved with 12 watts per square foot at 3-inch spacing.

✔Experience ultra-low electromagnetic field (EMF) with advanced dual conductor technology and foil sheath.

✔The finished floor height experiences minimal impact because the heater wire is thinner than 5/32 inches.

✔The self-adhesive mesh on one side and double-sided tape on the other ensure that the mat stays flat even when cut and flipped.

✔Health professionals endorse this product specifically for people dealing with allergies.

✔Ensure your personal comfort and affordability with accurate and intelligent control.

✔Say goodbye to unattractive heaters, storage hassles, maintenance, or unpleasant smells.

✔Provide safety for children, elderly, and pets with no hot, exposed, or moving parts.

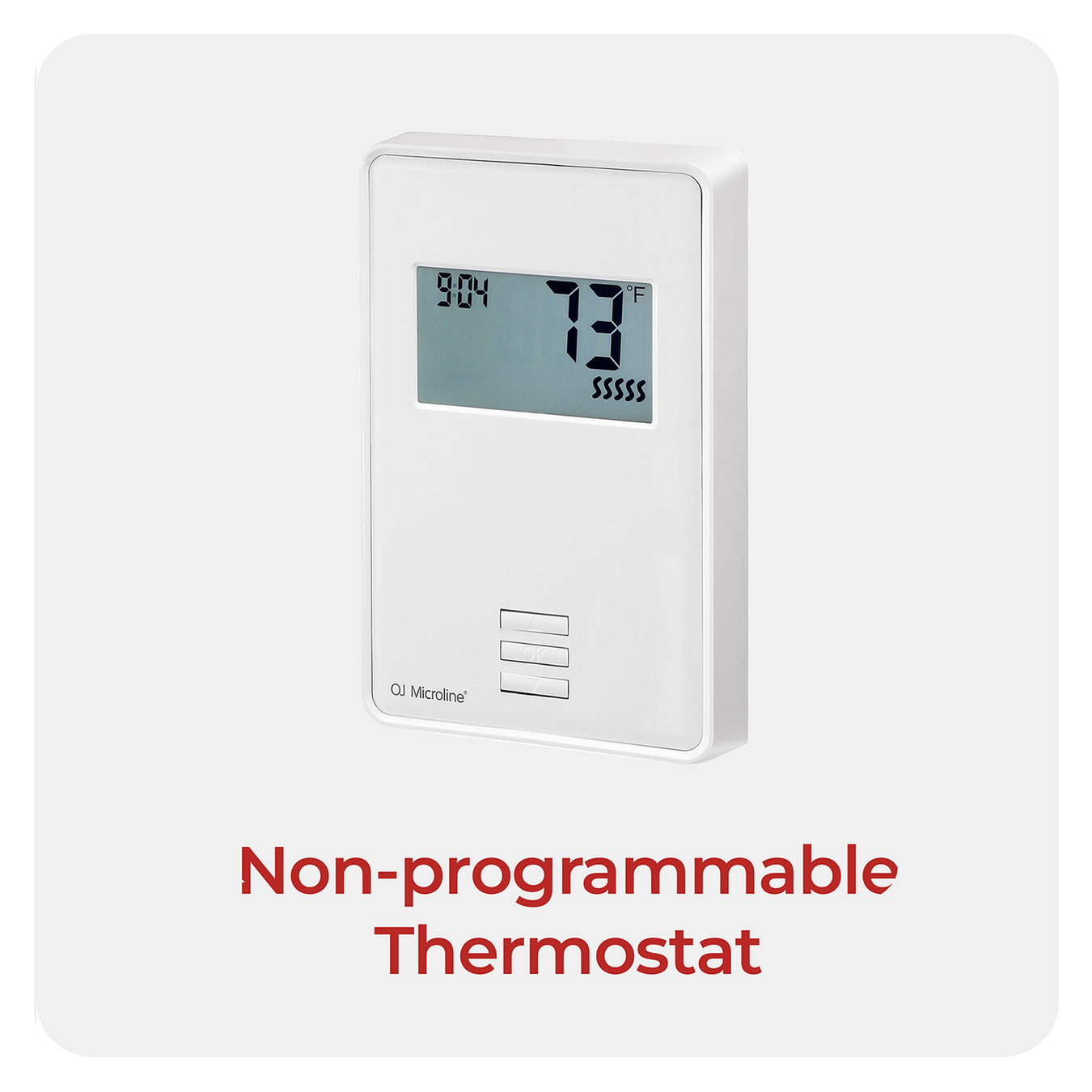

Thermostat Features

✔Non-Programmable - Easy to operate and install - no setup required.

✔Modern, minimalistic LED touch design to compliment any room in your home.

✔Listed by cULus for use in both the USA and Canada.

✔Certified as safe for wet room environments.

✔ 3 Year Factory Warranty.

✔Equipped with a built-in Class A Ground Fault Circuit Interrupter (GFCI) 5mA.

✔Operates on dual voltage: 120 volts or 240 volts.

✔Capable of dual sensing for both air and floor temperatures.

✔Load specifications: 15 amps, supporting 1800 watts at 120 volts or 3600 watts at 240 volts.

✔Floor sensing to safeguard and protect the flooring, ensuring its durability and longevity.

Floor Sensor Features

The Floor Sensor helps your Thermostat maintain accurate floor temperature readings, improving the efficiency and comfort of your heated floors. It also ensures protection for heat-sensitive flooring such as hardwood and laminate.

✔ Precision temperature measurement

✔ NTC 10K ohm resistance (77°F/25°C)

✔ 15 ft (4.3 m) length

✔ Universal compatibility with floor heating systems

✔ Works with most floor heating controllers

Installation Monitor Features

Ensure a smooth and successful electric floor heating installation with the LuxHeat Installation Alarm, designed to provide real-time monitoring and alerts.

✔ Actively monitors continuity and immediately sounds an alarm if broken.

✔ Green light confirms the system is operating correctly.

✔ Simple setup and universal compatibility with Electric Heating Cable and Mat Systems.

✔ Loud alarm sounds instantly if heating elements are damaged.

✔ Reusable for multiple projects.
