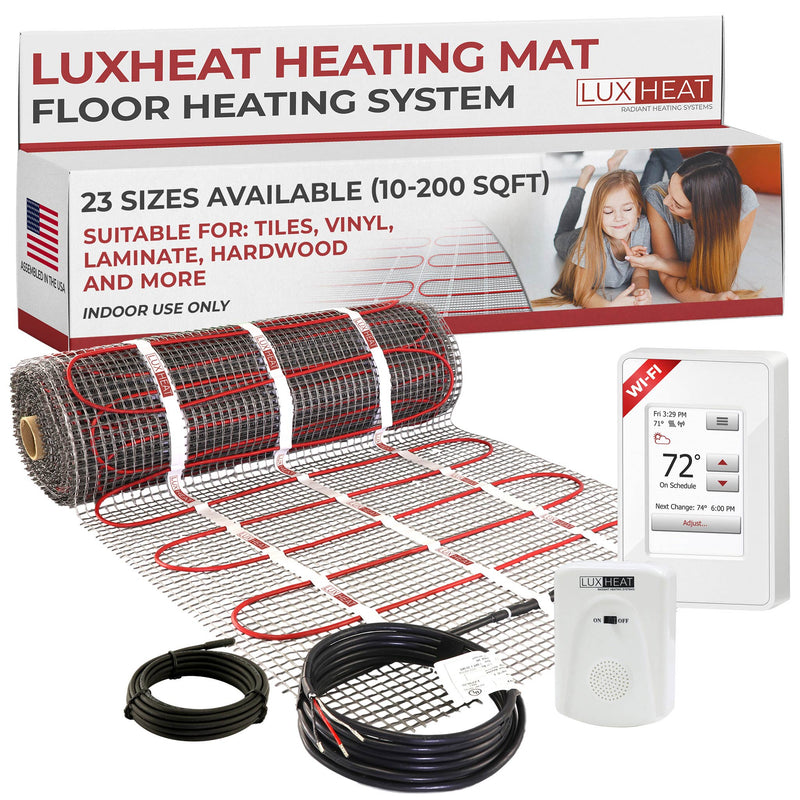

LuxHeat Radiant Floor Heating Mat System with WiFi Thermostat

Sale Sale
$305.00
$305.00 - $1,351.00
$305.00
$234.00
$234.00 - $1,039.00
$234.00

Enjoy the Beauty and Practicality of tile, vinyl, or hardwood flooring without compromising on Comfort.

Our LuxHeat heated floor mat, coupled with OJ Microline’s intuitive, energy efficient Thermostat, offers the ultimate in Luxury and Comfort, Reliability and Affordability.

  • 25 Year Warranty
  • 12 watts/sq. foot
  • cULus Approved for USA & Canada
  • Safe for Wet Areas including showers
  • Mat dimensions: 20" wide, length varies according to sq. feet

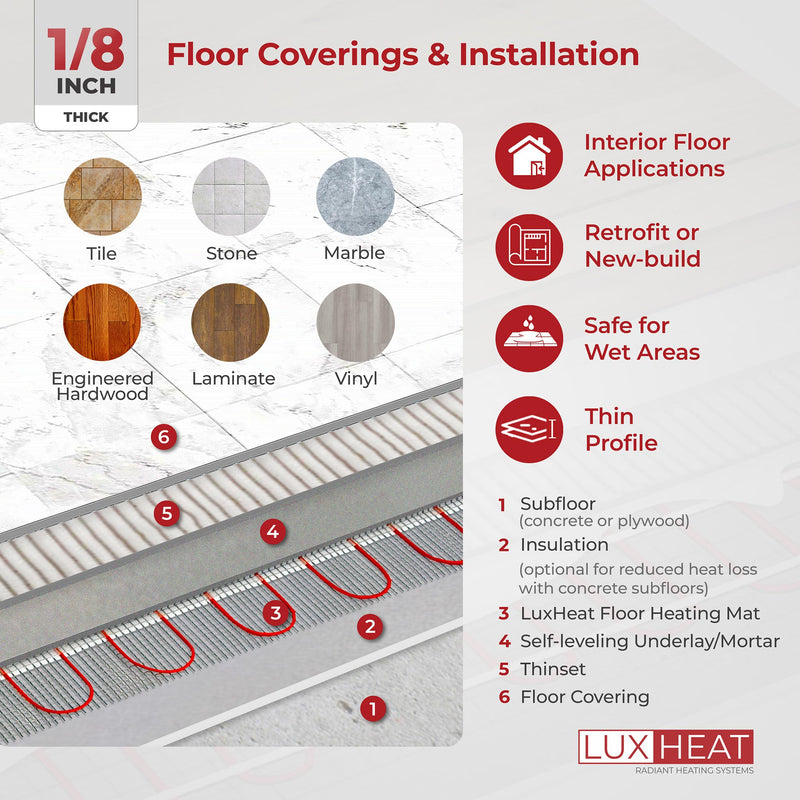

  • Suitable for under tile, laminate, vinyl, hardwood and more
  • Includes OJ Microline UWG4-4999 WiFi Enabled Touch Programmable Thermostat
Technical Specifications

Voltage: 120V
Watts: 120W
Amps: 1A
Width: 1.64ft
Length: 6.10ft
Coverage: 10sqft

Voltage: 120V
Watts: 180W
Amps: 1.5A
Width: 1.64ft
Length: 9.15ft
Coverage: 15sqft

Voltage: 120V
Watts: 240W
Amps: 2A
Width: 1.64ft
Length: 12.2ft
Coverage: 20sqft

Voltage: 120V
Watts: 300W
Amps: 2.5A
Width: 1.64ft
Length: 15.24ft
Coverage: 25sqft

Voltage: 120V
Watts: 360W
Amps: 3A
Width: 1.64ft
Length: 18.29ft
Coverage: 30sqft

Voltage: 120V
Watts: 420W
Amps: 3.5A
Width: 1.64ft
Length: 21.34ft
Coverage: 35sqft

Voltage: 120V
Watts: 480W
Amps: 4A
Width: 1.64ft
Length: 24.39ft
Coverage: 40sqft

Voltage: 120V
Watts: 540W
Amps: 4.5A
Width: 1.64ft
Length: 27.44ft
Coverage: 45sqft

Voltage: 120V
Watts: 600W
Amps: 5A
Width: 1.64ft
Length: 30.49ft
Coverage: 50sqft

Voltage: 120V
Watts: 720W
Amps: 6A
Width: 1.64ft
Length: 36.59ft
Coverage: 60sqft

Voltage: 120V
Watts: 840W
Amps: 7A
Width: 1.64ft
Length: 42.68ft
Coverage: 70sqft

Voltage: 120V
Watts: 960W
Amps: 8A
Width: 1.64ft
Length: 48.78ft
Coverage: 80sqft

Voltage: 120V
Watts: 1080W
Amps: 9A
Width: 1.64ft
Length: 54.88ft
Coverage: 90sqft

Voltage: 120V
Watts: 1200W
Amps: 10A
Width: 1.64ft
Length: 60.98ft
Coverage: 100sqft

Voltage: 120V
Watts: 1320W
Amps: 11A
Width: 1.64ft
Length: 67.07ft
Coverage: 110sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1440W
Amps: 12A
Width: 1.64ft
Length: 73.17ft
Coverage: 120sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1560W
Amps: 13A
Width: 1.64ft
Length: 79.27ft
Coverage: 130sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1680W
Amps: 14A
Width: 1.64ft
Length: 85.37ft
Coverage: 140sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1800W
Amps: 15A
Width: 1.64ft
Length: 91.46ft
Coverage: 150sqft

Supplied as two heating mats

Voltage: 240V
Watts: 420W
Amps: 1.8A
Width: 1.64ft
Length: 21.34ft
Coverage: 35sqft

Voltage: 240V
Watts: 480W
Amps: 2A
Width: 1.64ft
Length: 24.39ft
Coverage: 40sqft

Voltage: 240V
Watts: 540W
Amps: 2.3A
Width: 1.64ft
Length: 27.44ft
Coverage: 45sqft

Voltage: 240V
Watts: 600W
Amps: 2.5A
Width: 1.64ft
Length: 30.49ft
Coverage: 50sqft

Voltage: 240V
Watts: 660W
Amps: 2.8A
Width: 1.64ft
Length: 33.54ft
Coverage: 55sqft

Voltage: 240V
Watts: 720W
Amps: 3A
Width: 1.64ft
Length: 36.59ft
Coverage: 60sqft

Voltage: 240V
Watts: 840W
Amps: 3.5A
Width: 1.64ft
Length: 42.68ft
Coverage: 70sqft

Voltage: 240V
Watts: 960W
Amps: 4A
Width: 1.64ft
Length: 48.78ft
Coverage: 80sqft

Voltage: 240V
Watts: 1080W
Amps: 4.5A
Width: 1.64ft
Length: 54.88ft
Coverage: 90sqft

Voltage: 240V
Watts: 1200W
Amps: 5A
Width: 1.64ft
Length: 60.98ft
Coverage:100sqft

Voltage: 240V
Watts: 1440W
Amps: 6A
Width: 1.64ft
Length: 73.17ft
Coverage: 120sqft

Voltage: 240V
Watts: 1680W
Amps: 7A
Width: 1.64ft
Length: 85.37ft
Coverage: 140sqft

Voltage: 240V
Watts: 1920W
Amps: 8A
Width: 1.64ft
Length: 97.56ft
Coverage: 160sqft

Voltage: 240V
Watts: 2160W
Amps: 9A
Width: 1.64ft
Length: 109.76ft
Coverage: 180sqft

Voltage: 240V
Watts: 2400W
Amps: 10
Width: 1.64ft
Length: 121.95ft
Coverage: 200sqft

Select Voltage: 120V
Select Size: 10 sqft
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

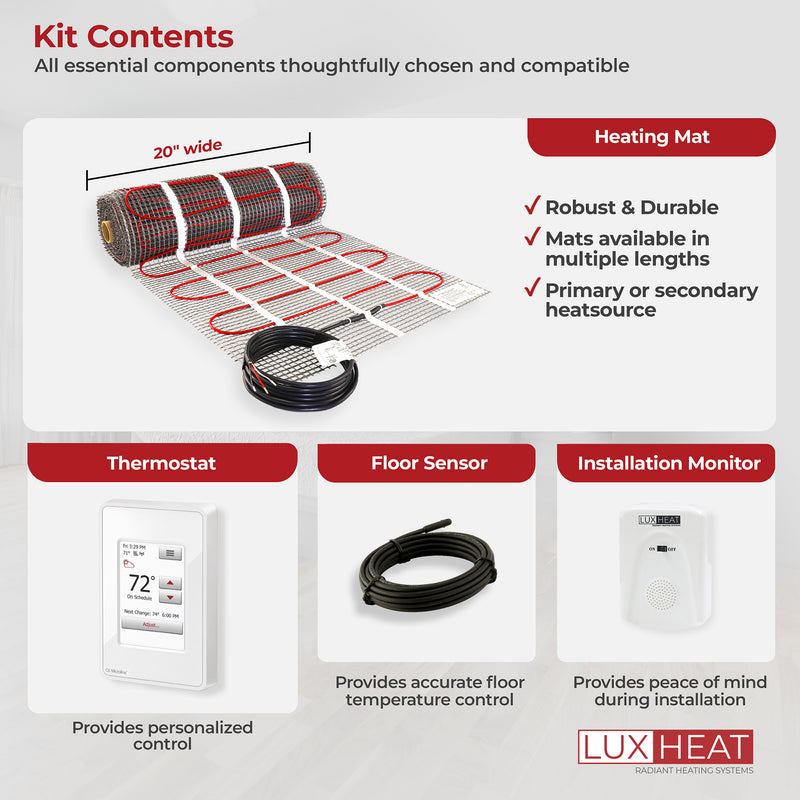

Kit Contents

This floor heating mat and WiFi thermostat kit includes all the key components for a functional and luxurious Radiant Floor Heating System.

kit-component-heating-mat
kit-component-wifi-thermostat
kit-component-floor-sensor
kit-component-installation-monitor
Mat_Close_Up_bbaf190f-d3e2-4672-8c23-7f8f8771d8f2

Features & Benefits

✔ Double insulated, single cold lead.

✔ cULus Listed for USA and Canada, classified as safe for wet Locations.

✔ 12watts/sqft @ 3" spacing provides optimal heat distribution.

✔ Ultra-low EMF - Dual conductor Tech, Aluminum foil sheath and ground wire.

✔ Heater wire is less than 5/32” thick, ensures minimal effect on finished floor height.

✔ Self-Adhesive mesh on one side and double sided tape on the other, ensures mat stays flat even when flipped.

✔ Recommended by Health Professionals for Allergy sufferers.

✔ No unattractive heaters, storage hassles, maintenance, or smell.

✔ Safe for Children, Elderly and Pets - no hot, exposed or moving parts.

✔ Accurate and Intelligent control ensures your Personal Comfort and Affordability.

UWG4_Lifestyle_Image_1_REVISED_V2

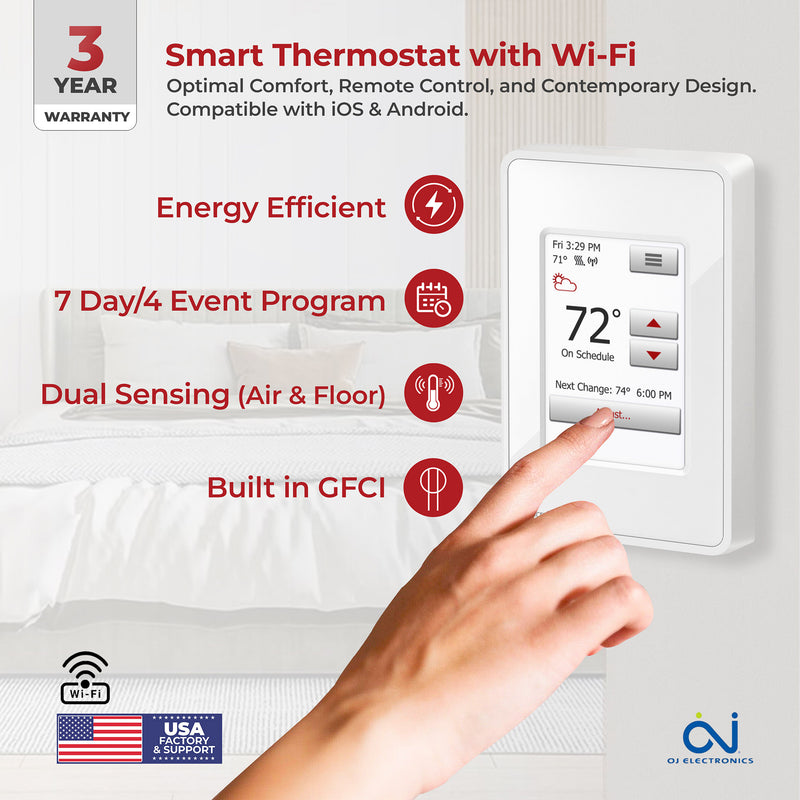

Thermostat Features

✔ Wi-Fi Connection allows for remote control via phone or tablet.

✔ App compatible with Android and IOS.

✔ c-UL-us Listed for USA and Canada.

✔ 3 Year Factory Warranty.

✔ Built in GFCI Class A 5mA.

✔ Dual Voltage: 120 Volt or 240V.

✔ Dual sensing: Air & Floor.

✔ Load: 15amps - 1800w @ 120v/ 3600 @ 240V.

✔ Pre-set 7-Day, 4-Event Program - fully customizable.

✔ Other Modes: Child lock, Manual override and more.

✔ 3.5" Color Screen with interactive touch control.

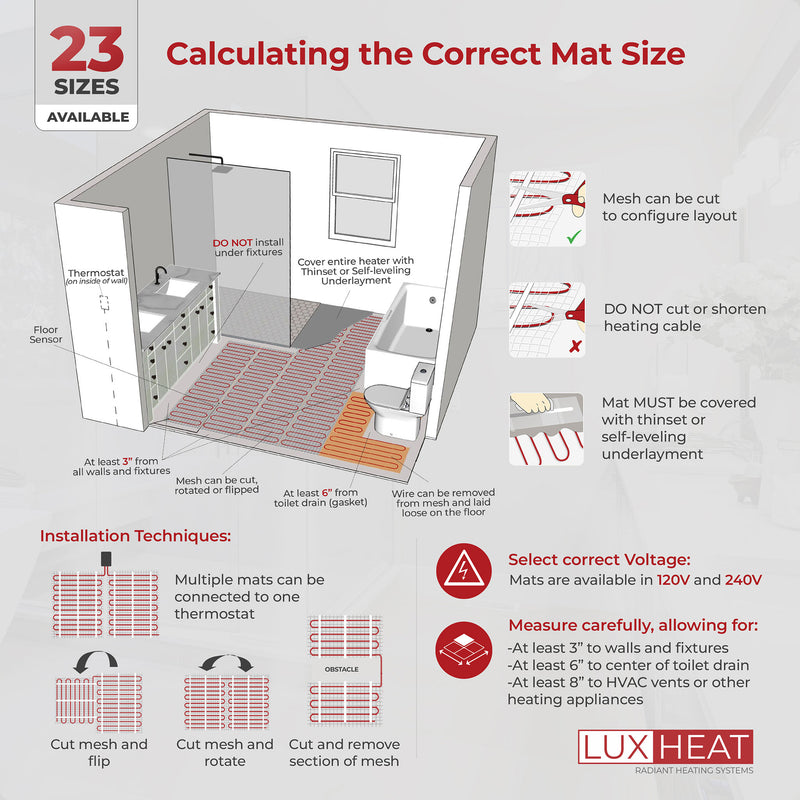

How To Select the Correct Size Heating Mat

how-to-measure-mat
mat-important-notes

How To Cut & Turn Your Mat

The mesh can be cut and turned to suit your layout. The Heating Cable cannot be cut or shortened.

mat-rotate-example
mat-flip-example
mat-obstacle-example
mat-remove-wire-example
Safe_Reliable2
Easy_to_Install
Luxury_and_Comfort
Low_Running_Cost
Adds_Value
Silent_Invisible2
