LuxHeat Radiant Floor Heating Cable System with Fixing Strips & WiFi LED Thermostat

LuxHeat Radiant Floor Heating Cable System with Fixing Strips & WiFi LED Thermostat

$279.00
$279.00 - $1,488.00
$279.00
$214.00
$214.00 - $1,144.00
$214.00

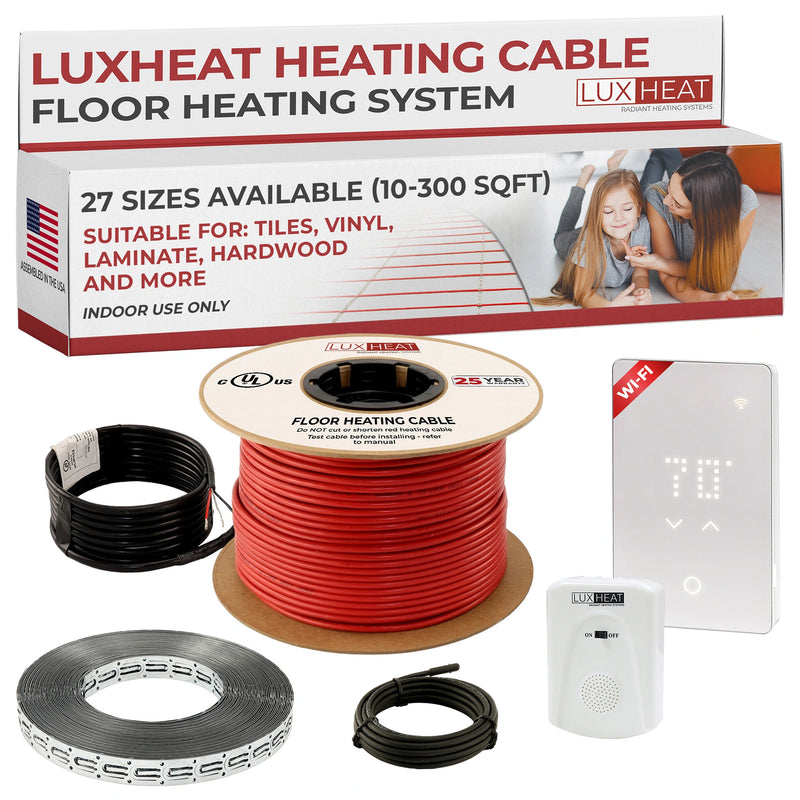

Upgrade your home with the LuxHeat Electric Floor Heating Cable Kit with Fixing Strips and UWG5 WiFi LED Thermostat—a reliable, energy-efficient floor heating system designed to bring luxurious warmth to any space in your home.

Whether you’re working on a custom kitchen remodel or a bathroom renovation, this kit offers the layout flexibility you need—simply secure the cable in place using the included metal fixing strips and customize your layout to fit any space.

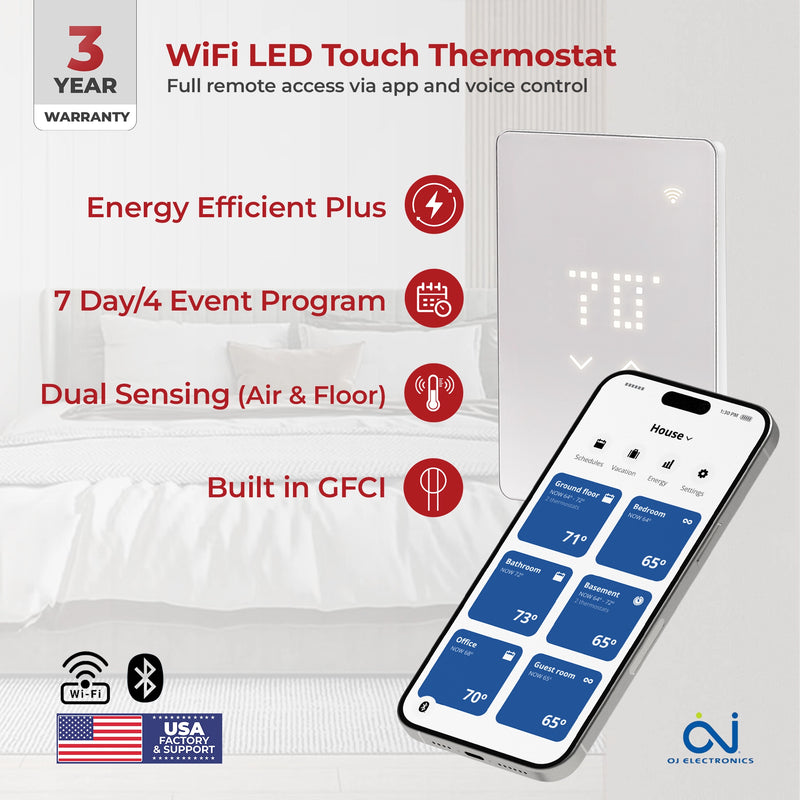

The sleek, modern UWG5 smart thermostat features complete remote control via Wi-Fi and voice control integration with Google Home and Amazon Alexa devices, allowing for effortless temperature adjustments.

  • 25 Year Warranty
  • cULus Approved for USA & Canada
  • Safe for Wet Areas including showers

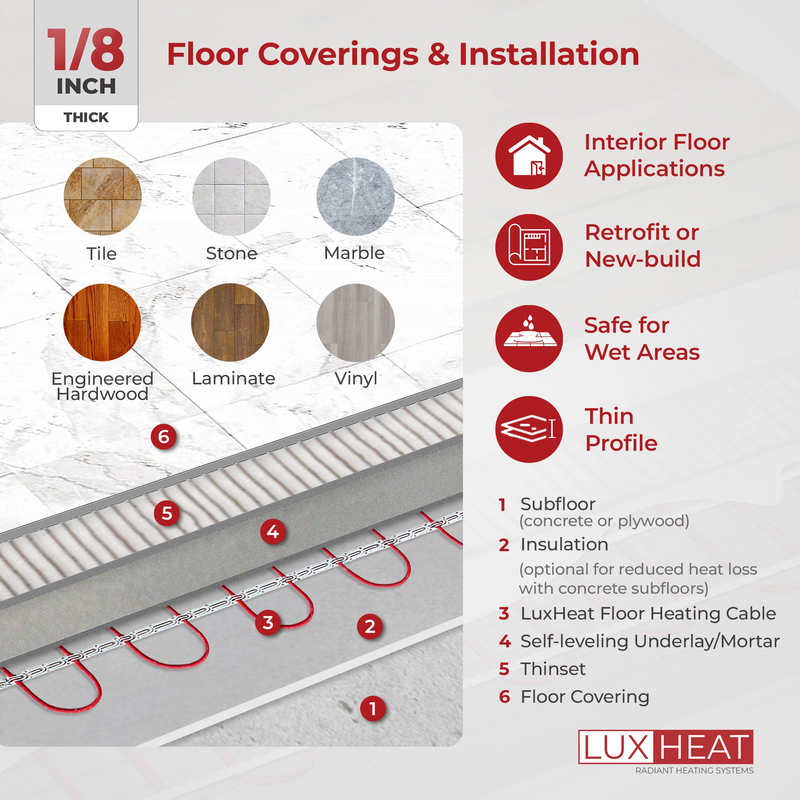

  • Suitable for under tile, laminate, vinyl, hardwood and more

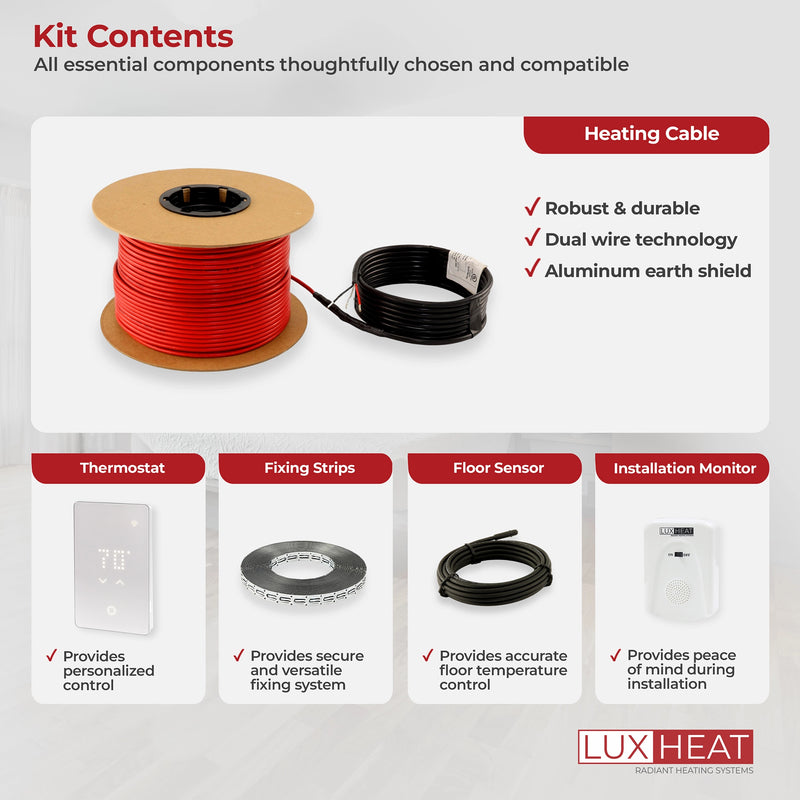

  • Includes OJ Microline UWG5-4999 WiFi Enabled Touch Programmable Thermostat

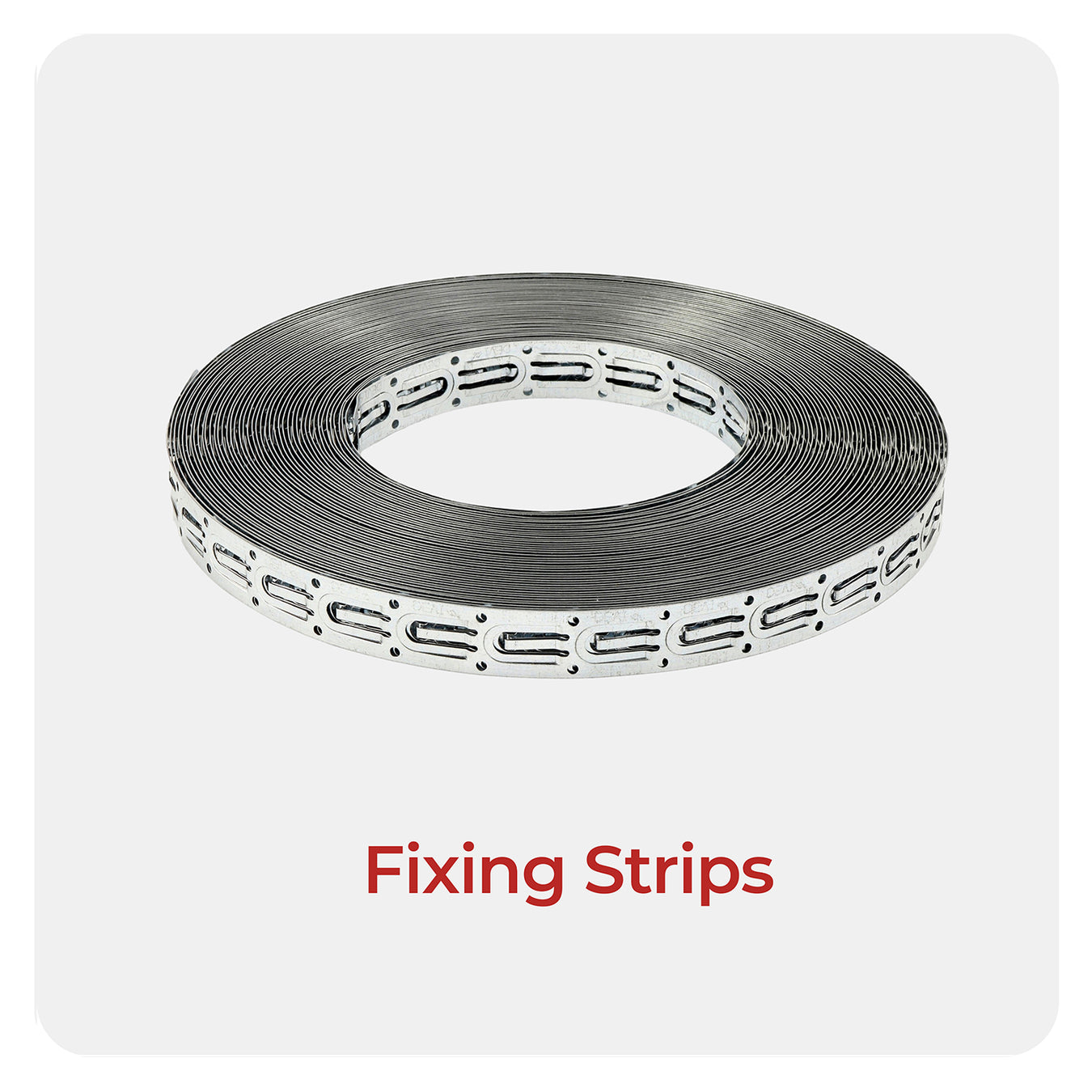

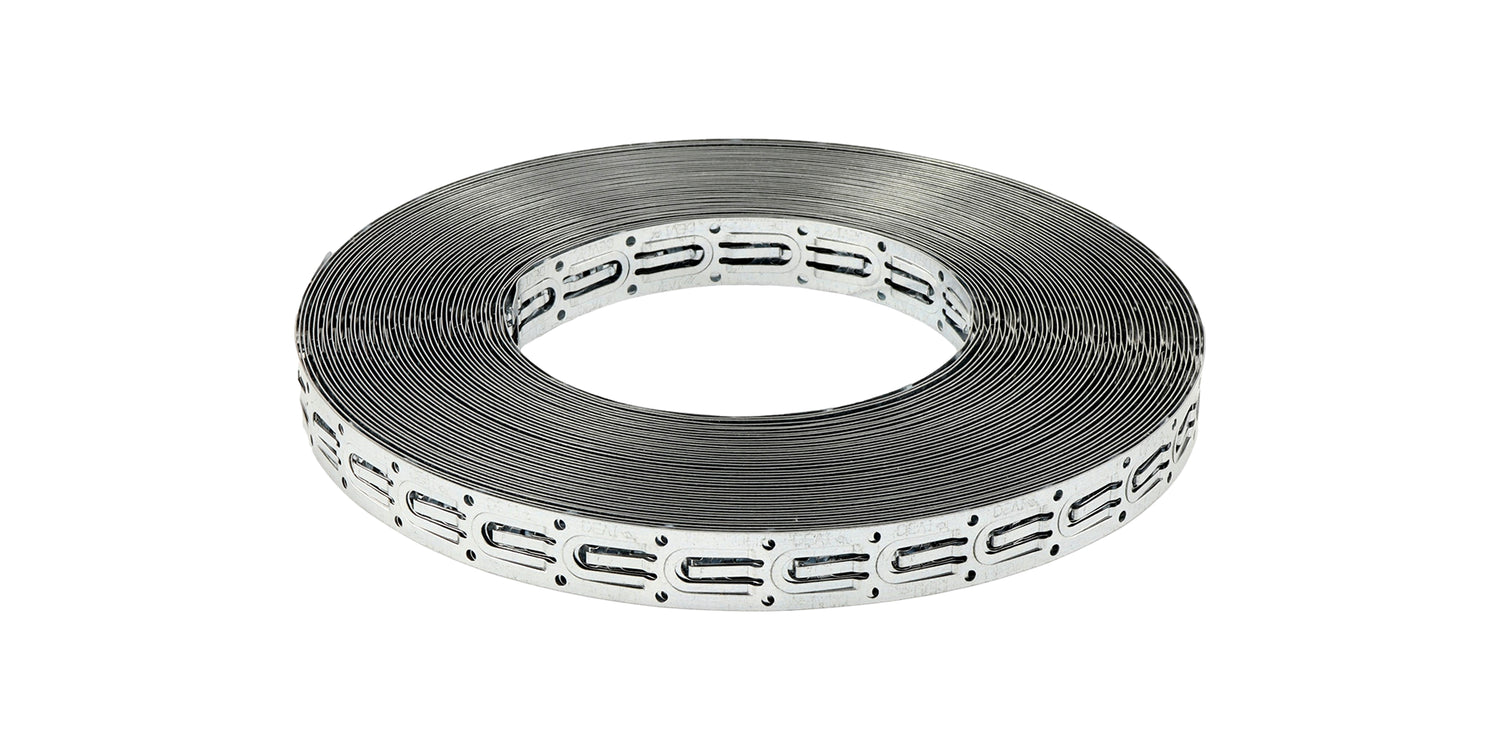

  • Includes fixings strips for secure installation
Technical Specifications

Voltage: 120V
Watts: 120W
Amps: 1.0A
Length: 40 linear ft

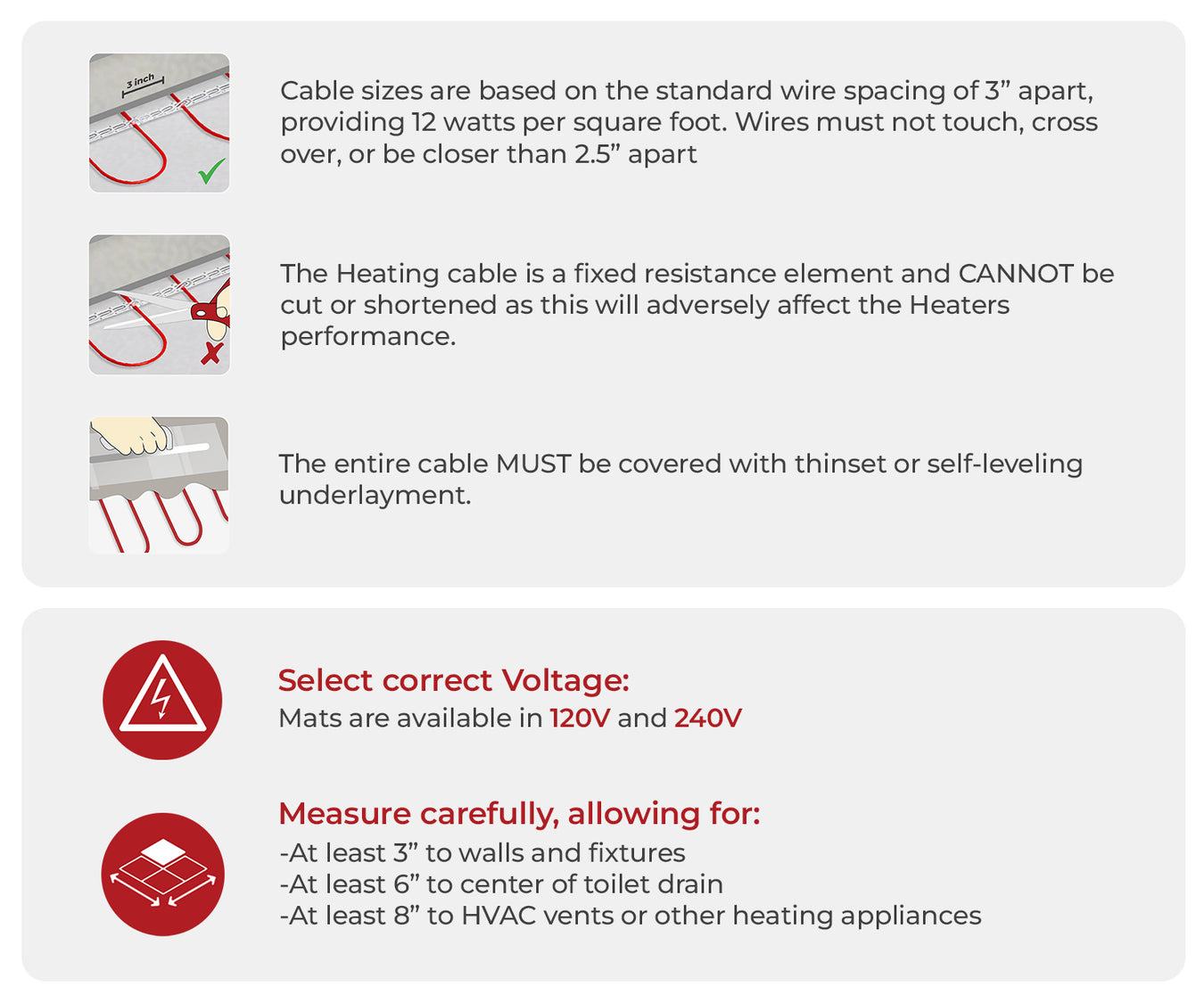

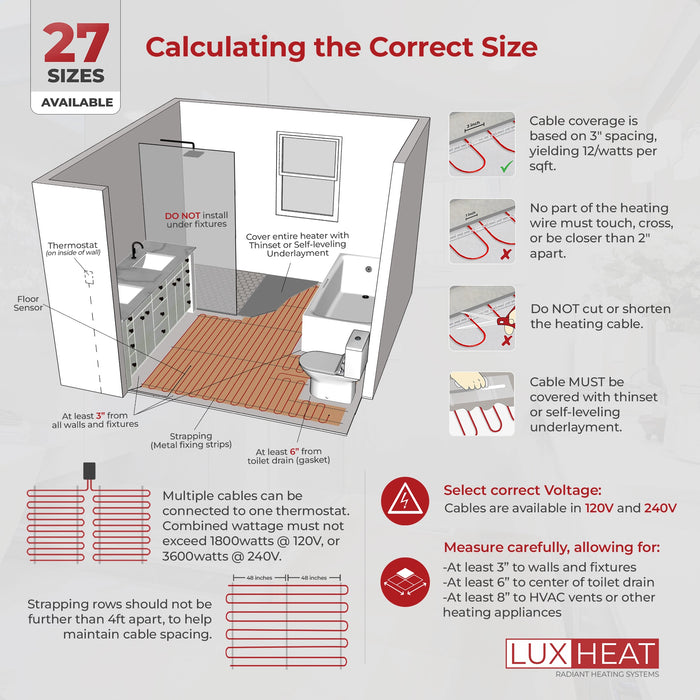

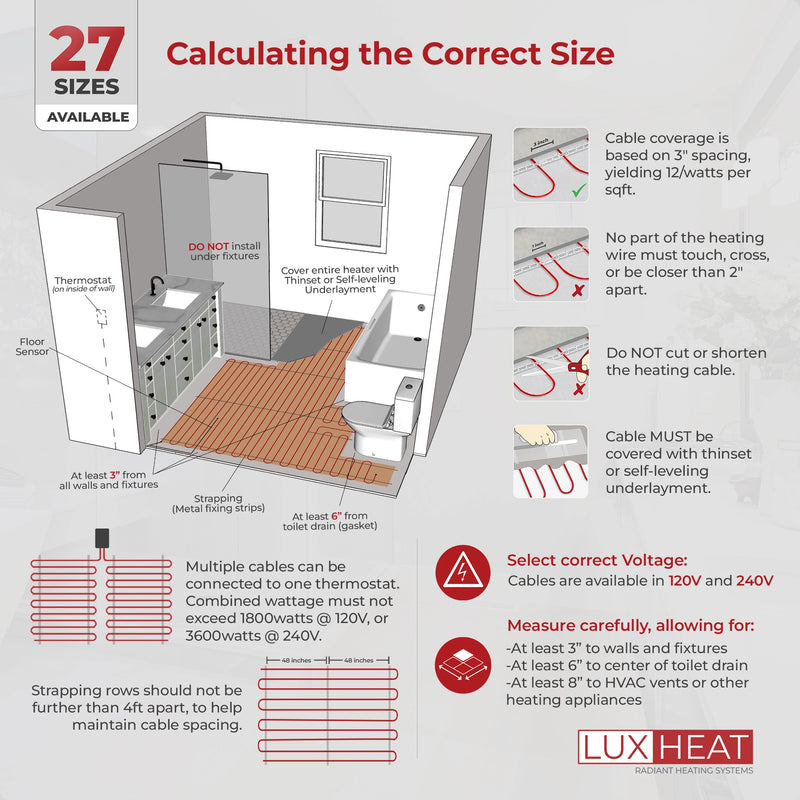

Cable Coverage @ 3" Spacing: 10sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 8.3sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 11.7sqft
Cable Coverage @ 4" Spacing: 13.3sqft

Voltage: 120V
Watts: 180W
Amps: 1.5A
Length: 60 linear ft
Cable Coverage @ 3" Spacing: 15sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 12.5sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 17.5sqft
Cable Coverage @ 4" Spacing: 20sqft

Voltage: 120V
Watts: 240W
Amps: 2.0A
Length: 80 linear ft
Cable Coverage @ 3" Spacing: 20sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 16.7sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 23.3sqft
Cable Coverage @ 4" Spacing: 26.7sqft

Voltage: 120V
Watts: 300W
Amps: 2.5A
Length: 100 linear ft
Cable Coverage @ 3" Spacing: 25sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 20.8sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 29.1sqft
Cable Coverage @ 4" Spacing: 33.3sqft

Voltage: 120V
Watts: 360W
Amps: 3.0A
Length: 120 linear ft
Cable Coverage @ 3" Spacing: 30sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 25sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 35sqft
Cable Coverage @ 4" Spacing: 40sqft

Voltage: 120V
Watts: 420W
Amps: 3.5A
Length: 140 linear ft
Cable Coverage @ 3" Spacing: 35sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 29.2sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 40.8sqft
Cable Coverage @ 4" Spacing: 46.7sqft

Voltage: 120V
Watts: 480W
Amps: 4.0A
Length: 160 linear ft
Cable Coverage @ 3" Spacing: 40sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 33.3sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 46.6sqft
Cable Coverage @ 4" Spacing: 53.3sqft

Voltage: 120V
Watts: 540W
Amps: 4.5A
Length: 180 linear ft
Cable Coverage @ 3" Spacing: 45sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 37.5sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 52.4sqft
Cable Coverage @ 4" Spacing: 60sqft

Voltage: 120V
Watts: 600W
Amps: 5.0A
Length: 200 linear ft
Cable Coverage @ 3" Spacing: 50sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 41.7sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 58.3sqft
Cable Coverage @ 4" Spacing: 66.7sqft

Voltage: 120V
Watts: 720W
Amps: 6.0A
Length: 240 linear ft
Cable Coverage @ 3" Spacing: 60sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 50sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 69.9sqft
Cable Coverage @ 4" Spacing: 80sqft

Voltage: 120V
Watts: 840W
Amps: 7.0A
Length: 280 linear ft
Cable Coverage @ 3" Spacing: 70sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 58.3sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 81.6sqft
Cable Coverage @ 4" Spacing: 93.3sqft

Voltage: 120V
Watts: 960W
Amps: 8.0A
Length: 320 linear ft
Cable Coverage @ 3" Spacing: 80sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 66.7sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 93.2sqft
Cable Coverage @ 4" Spacing: 106.7sqft

Voltage: 120V
Watts: 1080W
Amps: 9.0A
Length: 360 linear ft
Cable Coverage @ 3" Spacing: 90sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 75sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 104.9sqft
Cable Coverage @ 4" Spacing: 120sqft

Voltage: 120V
Watts: 1200W
Amps: 10.0A
Length: 400 linear ft
Cable Coverage @ 3" Spacing: 100sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 83.3sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 116.5sqft
Cable Coverage @ 4" Spacing: 133.3sqft

Voltage: 120V
Watts: 1320W
Amps: 11.0A
Length: 440 linear ft
Cable Coverage @ 3" Spacing: 110sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 91.7sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 128.2sqft
Cable Coverage @ 4" Spacing: 146.7sqft

Voltage: 120V
Watts: 1440W
Amps: 12.0A
Length: 480 linear ft
Cable Coverage @ 3" Spacing: 120sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 100sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 139.8sqft
Cable Coverage @ 4" Spacing: 160sqft

Voltage: 120V
Watts: 1560W
Amps: 13.0A
Length: 520 linear ft
Cable Coverage @ 3" Spacing: 130sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 108.3sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 151.5sqft
Cable Coverage @ 4" Spacing: 173.3sqft

Voltage: 120V
Watts: 1680W
Amps: 14.0A
Length: 560 linear ft
Cable Coverage @ 3" Spacing: 140sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 116.7sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 163.1sqft
Cable Coverage @ 4" Spacing: 186.7sqft

Voltage: 120V
Watts: 1800W
Amps: 15.0A
Length: 600 linear ft
Cable Coverage @ 3" Spacing: 150sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 125sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 174.8sqft
Cable Coverage @ 4" Spacing: 200sqft

Voltage: 240V
Watts: 480W
Amps: 2.0A
Length: 160 linear ft
Cable Coverage @ 3" Spacing: 40sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 33.3sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 46.6sqft
Cable Coverage @ 4" Spacing: 53.3sqft

Voltage: 240V
Watts: 600W
Amps: 2.5A
Length: 200 linear ft
Cable Coverage @ 3" Spacing: 50sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 41.7sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 58.3sqft
Cable Coverage @ 4" Spacing: 66.7sqft

Voltage: 240V
Watts: 720W
Amps: 3.0A
Length: 240 linear ft
Cable Coverage @ 3" Spacing: 60sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 50sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 69.9sqft
Cable Coverage @ 4" Spacing: 80sqft

Voltage: 240V
Watts: 840W
Amps: 3.5A
Length: 280 linear ft
Cable Coverage @ 3" Spacing: 70sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 58.3sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 81.6sqft
Cable Coverage @ 4" Spacing: 93.3sqft

Voltage: 240V
Watts: 960W
Amps: 4.0A
Length: 320 linear ft
Cable Coverage @ 3" Spacing: 80sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 66.7sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 93.2sqft
Cable Coverage @ 4" Spacing: 106.7sqft

Voltage: 240V
Watts: 1080W
Amps: 4.5A
Length: 360 linear ft
Cable Coverage @ 3" Spacing: 90sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 75sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 104.9sqft
Cable Coverage @ 4" Spacing: 120sqft

Voltage: 240V
Watts: 1200W
Amps: 5.0A
Length: 400 linear ft
Cable Coverage @ 3" Spacing: 100sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 83.3sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 116.5sqft
Cable Coverage @ 4" Spacing: 133.3sqft

Voltage: 240V
Watts: 1440W
Amps: 6.0A
Length: 480 linear ft
Cable Coverage @ 3" Spacing: 120sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 100sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 139.8sqft
Cable Coverage @ 4" Spacing: 160sqft

Voltage: 240V
Watts: 1680W
Amps: 7.0A
Length: 560 linear ft
Cable Coverage @ 3" Spacing: 140sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 116.7sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 163.1sqft
Cable Coverage @ 4" Spacing: 186.7sqft

Voltage: 240V
Watts: 1920W
Amps: 8.0A
Length: 640 linear ft
Cable Coverage @ 3" Spacing: 160sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 133.3sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 186.4sqft
Cable Coverage @ 4" Spacing: 213.3sqft

Voltage: 240V
Watts: 2160W
Amps: 9.0A
Length: 720 linear ft
Cable Coverage @ 3" Spacing: 180sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 150sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 209.7sqft
Cable Coverage @ 4" Spacing: 240sqft

Voltage: 240V
Watts: 2400W
Amps: 10.0A
Length: 800 linear ft
Cable Coverage @ 3" Spacing: 200sqft (industry standard)


Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 166.7sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 233sqft
Cable Coverage @ 4" Spacing: 266.7sqft

Voltage: 240V
Watts: 2640W
Amps: 11.0A
Length: 880 linear ft
Cable Coverage @ 3" Spacing: 220sqft (industry standard)

Supplied as two heating cables

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 183.3sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 256.3sqft
Cable Coverage @ 4" Spacing: 293.3sqft

Voltage: 240V
Watts: 2800W
Amps: 12.0A
Length: 960 linear ft
Cable Coverage @ 3" Spacing: 240sqft (industry standard)

Supplied as two heating cables

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 200sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 279.6sqft
Cable Coverage @ 4" Spacing: 320sqft

Voltage: 240V
Watts: 3120W
Amps: 13.0A
Length: 1040 linear ft
Cable Coverage @ 3" Spacing: 260sqft (industry standard)

Supplied as two heating cables

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 216.7sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 302.9sqft
Cable Coverage @ 4" Spacing: 346.7sqft

Voltage: 240V
Watts: 3360W
Amps: 14.0A
Length: 1120 linear ft
Cable Coverage @ 3" Spacing: 280sqft (industry standard)

Supplied as two heating cables

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 233.3sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 326.2sqft
Cable Coverage @ 4" Spacing: 373.3sqft

Voltage: 240V
Watts: 3600W
Amps: 15.0A
Length: 1200 linear ft
Cable Coverage @ 3" Spacing: 300sqft (industry standard)

Supplied as two heating cables

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 250sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 349.5sqft
Cable Coverage @ 4" Spacing: 400sqft

Select Voltage: 120V
Select Size: 10 sqft
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Kit Contents

This LuxHeat Radiant Floor Heating Cable System with Fixing Strips & WiFi Thermostat Kit includes all the key components for a functional and luxurious Radiant Floor Heating System.
Features & Benefits

Features & Benefits

✔ Double-insulated design with a single cold lead for superior electrical protection.

✔ cULus certified for use in the USA and Canada, and safe for wet areas.

✔ Consistent, even heat output with 12W per square foot at 3-inch cable spacing.

✔ Slim-profile heating cable at less than 5/32" minimizes added floor height.

✔ Ultra-low EMF emissions, with dual-conductor technology, aluminum shielding, and ground wire.

✔ No exposed, hot or moving parts; ideal for homes with children, pets, or elderly residents.

✔ Flexible layout options – easily customized to fit any room shape or floor plan.

✔ Allergy-friendly – recommended by health professionals for allergy and asthma sufferers

✔ Space-saving solution – eliminates bulky radiators, vents, or regular maintenance.

✔ Out of sight, out of mind – enjoy invisible, silent and odorless comfort.

Thermostat Features

Thermostat Features

✔ Wi-Fi connectivity allows for remote easy control via the intuitive UWG5 Android or iOS app.

✔ Hands-free voice control via seamless integration with Google Home and Amazon Alexa.

✔ New smart setup via Bluetooth– no internet access required.

✔ Enjoy complete control of your schedule and settings via the app.

✔ Sleek LED touchscreen interface – modern design that complements any décor.

✔ Smart adaptive technology – maintains consistent warmth while minimizing energy use.

✔ Integrated Class A GFCI for enhanced ground fault protection.

✔ cULus certified for safe use in the USA and Canada.

✔ Dual-sensing technology (floor and air), plus dual voltage compatibility (120V or 240V).

Floor Sensor Features

Floor Sensor Features

Improve the functionality of your Radiant Floor Heating System with the Floor Sensor, ensuring precise temperature regulation for optimal comfort and efficiency. Enable floor protection settings for heat sensitive floors such as hardwood or laminate.

✔ Highly accurate temperature measuring for consistent heating.

✔ NTC 10K ohm sensor calibrated at 77°F (25°C).

✔ 15 ft (4.3 m) cable allows flexible positioning.

✔ Works with most radiant floor heating systems.

✔ Compatible with most floor heating controllers.

Installation Monitor Features

Installation Monitor Features

Enjoy peace of mind during installation with the LuxHeat Installation Monitor, which provides continuous monitoring of your electric floor heating system’s live, neutral, and earth connections.

✔ Loud alarm immediately alerts you to any damage to the heating element.

✔ Quick and easy connection—works with all Electric Heating Cable and Mat Systems.

✔ Green indicator light stays on when everything is functioning properly.

✔ Actively monitors continuity and sounds an alarm if a break is detected.

✔ Reusable for multiple installations.

Fixing Strips Features

Fixing Strips Features

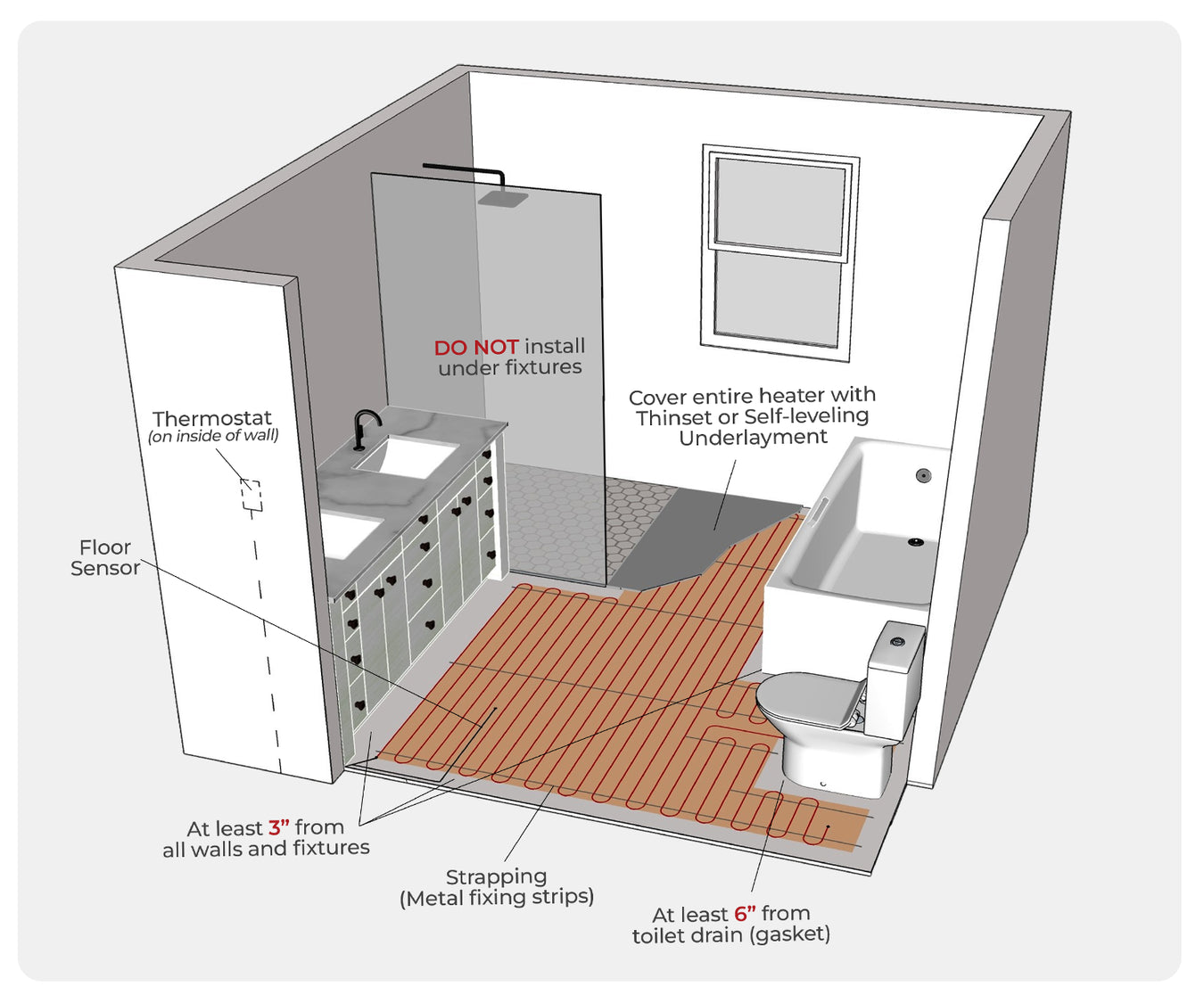

LuxHeat Cable Fixing Strips, also known as Strapping or Cable Guides, offer a dependable solution for securing radiant floor heating cables to the subfloor while maintaining a uniform layout. These strips are easy to cut and feature lugs spaced at 1-inch intervals for flexible installation.

✔ Lug spacing: 1-inch intervals (cables should not be placed closer than 2 inches).

✔ Compatible with both timber and concrete subfloors (fasteners not included).

✔ Designed to work with most electric floor heating cables.

✔ Easy-to-use yet secure mounting system.

How To Select the Correct Size Heating Cable

Testimonials
