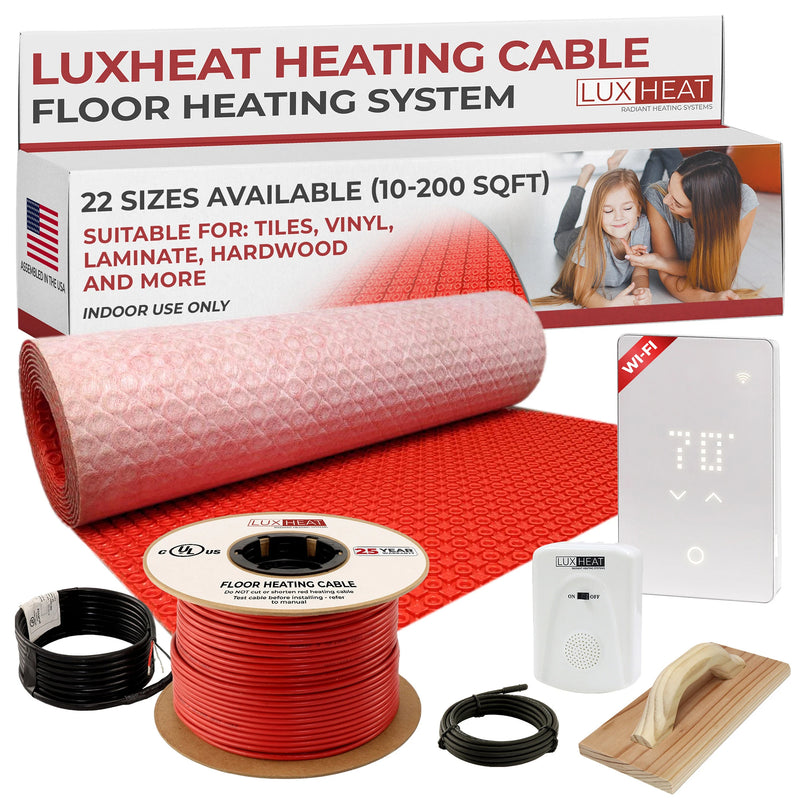

LuxHeat Radiant Floor Heating Cable System with Uncoupling Membrane & WiFi LED Thermostat

LuxHeat Radiant Floor Heating Cable System with Uncoupling Membrane & WiFi LED Thermostat

$398.75
$398.75 - $1,786.25
$398.75
$319.00
$319.00 - $1,429.00
$319.00

Experience the ultimate in comfort and reliability with the LuxHeat Electric Floor Heating Kit with WiFi LED Thermostat. This premium system includes a reliable LuxHeat Heating Cable and PROVA Flex-Heat uncoupling membrane, designed to deliver luxurious warmth while adding waterproofing and long-lasting protection for your floor.

Perfect for bathrooms, kitchens, and other interior spaces, this advanced floor heating kit is ideal for tile, vinyl, laminate, and hardwood floors. The loose-lay cable ensures you can easy customize your layout to suit your area.

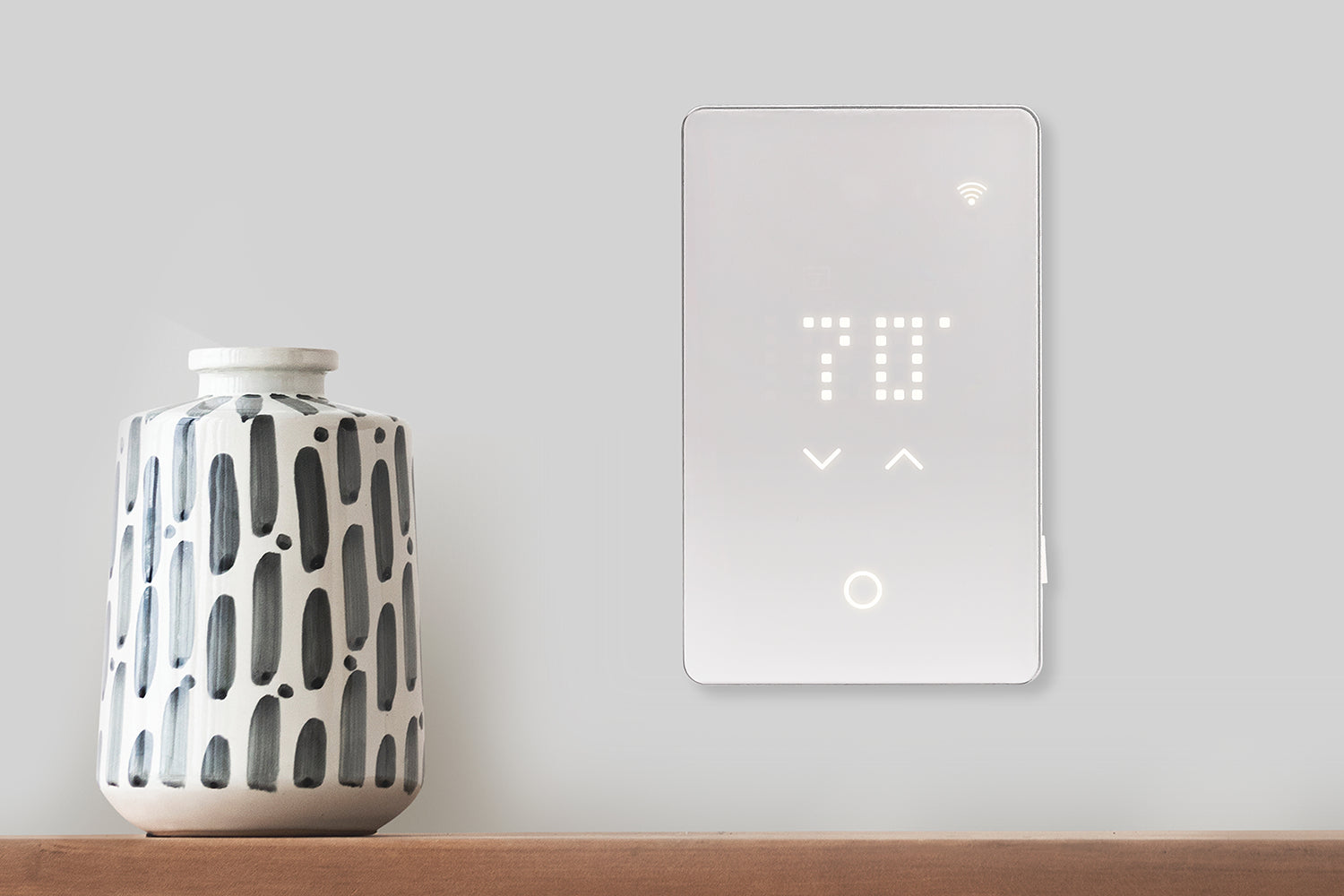

Control your system from anywhere with the included OJ Microline UWG5-4999 WiFi LED touch thermostat. Compatible with Google Home and Amazon Alexa devices, this smart thermostat lets you manage your floor heating system via voice commands, or remotely from your phone using the mobile app.

  • 25 Year Warranty
  • cULus Approved for USA & Canada
  • Safe for Wet Areas including showers

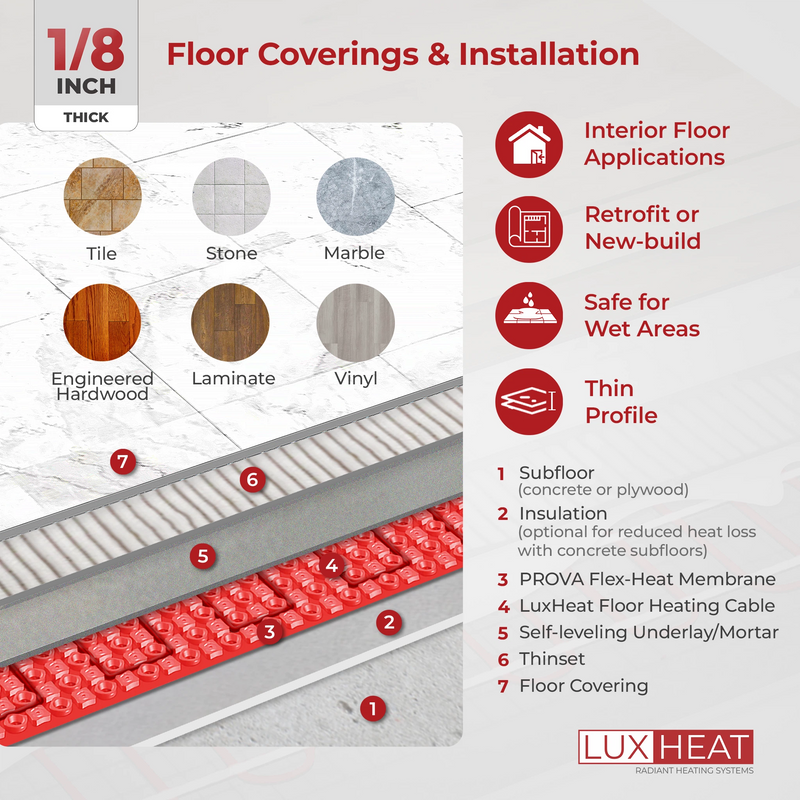

  • Suitable for under tile, laminate, vinyl, hardwood and more

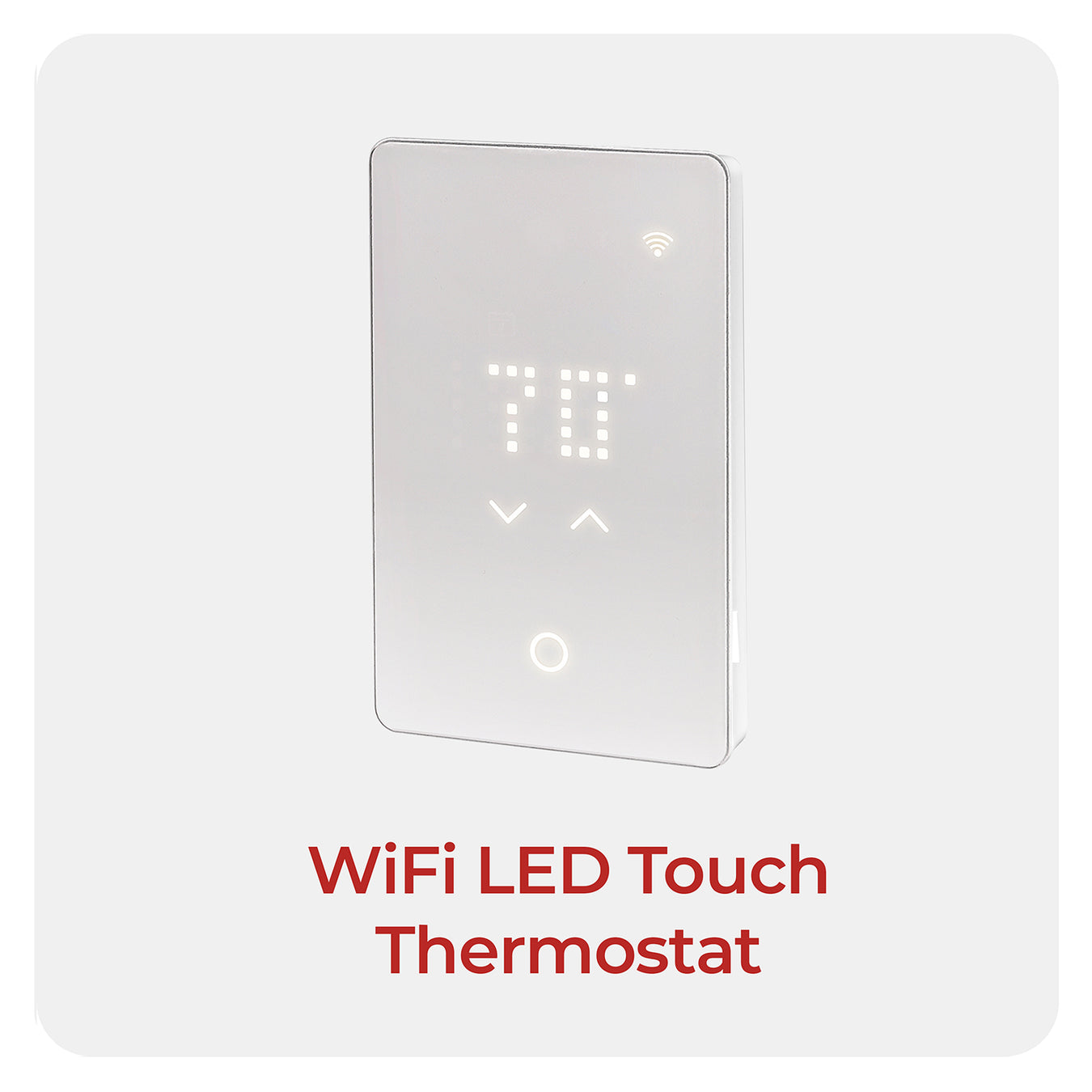

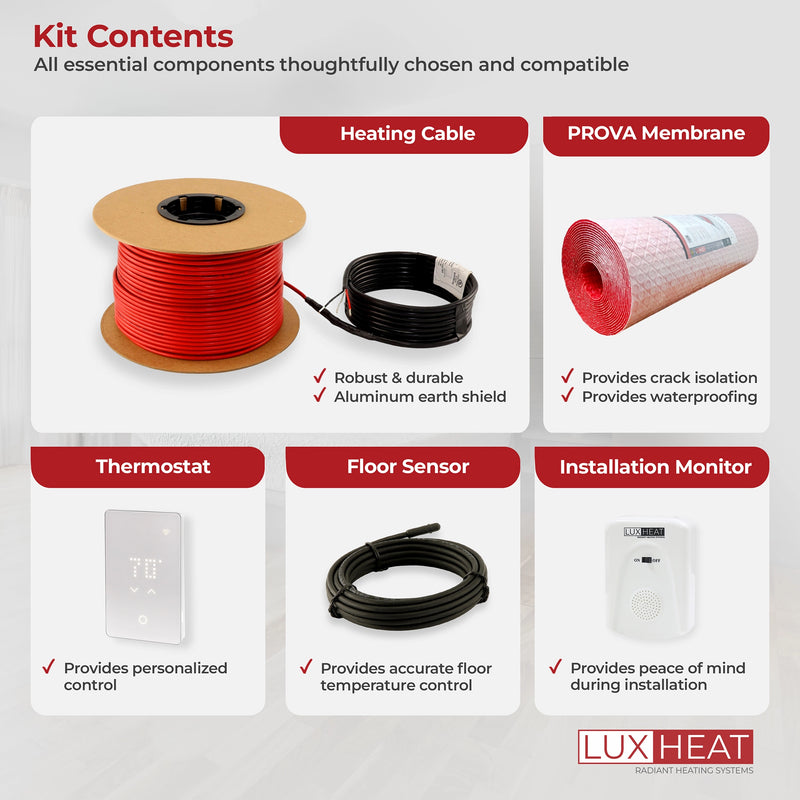

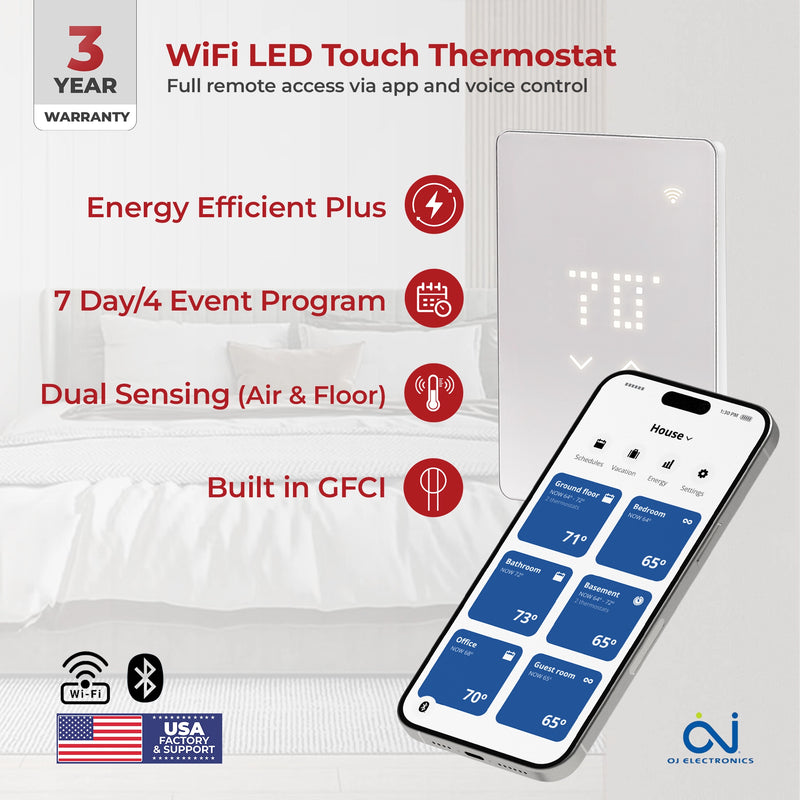

  • Includes OJ Microline UWG5-4999 WiFi LED Touch Programmable Thermostat

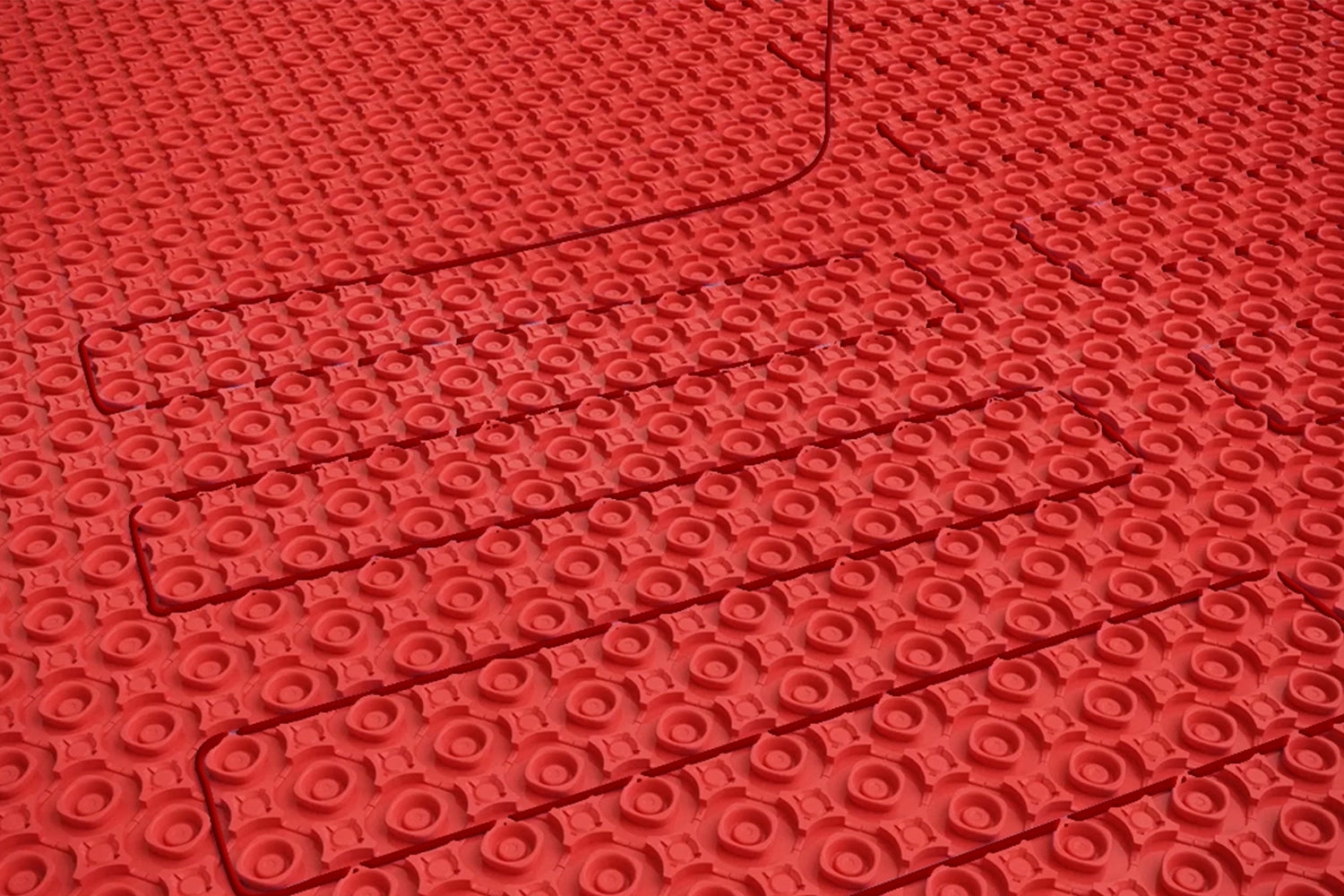

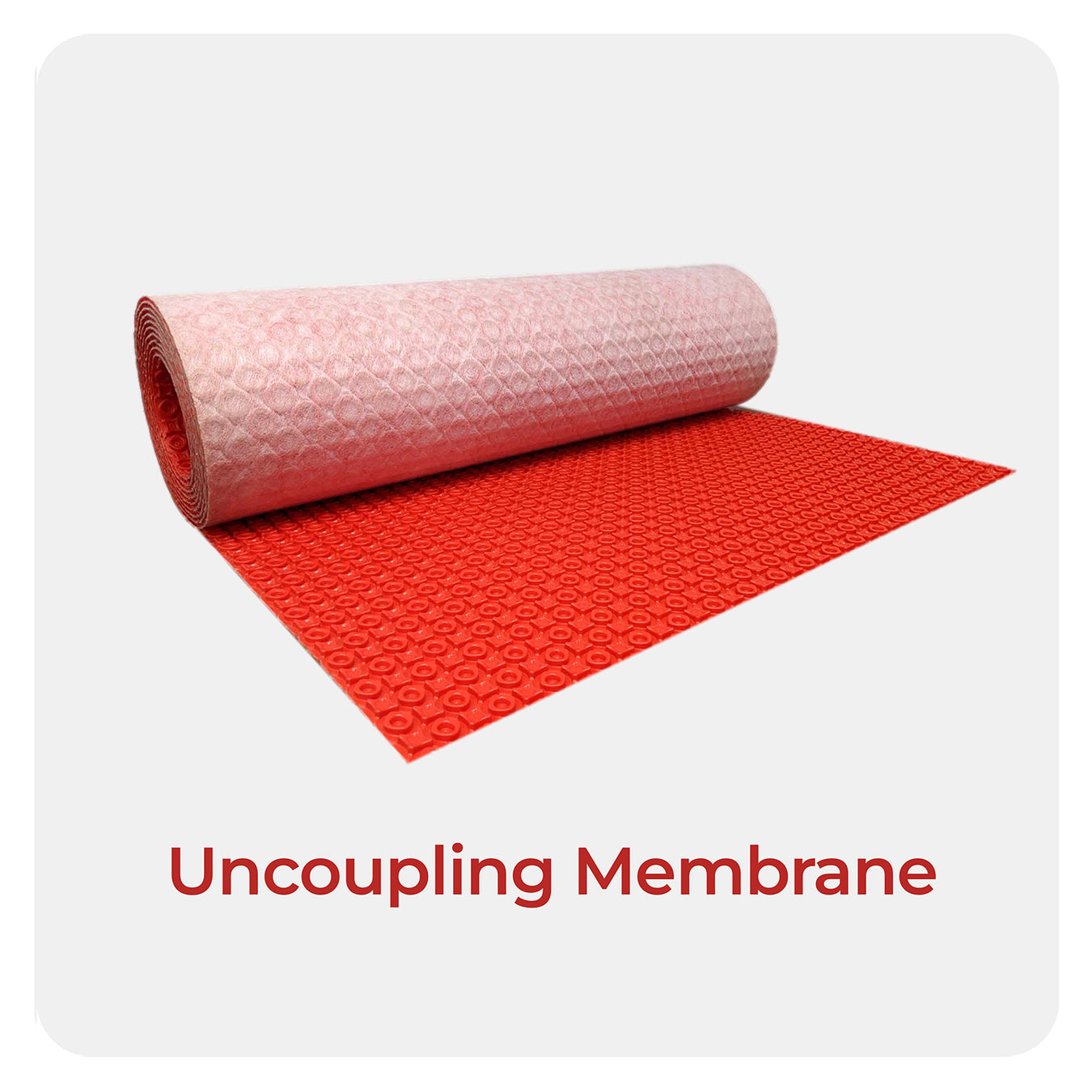

  • Includes PROVA FlexHeat+ Uncoupling Membrane for Floor Heating Cables
  • Additional Membrane coverage included
Technical Specifications

Voltage: 120V
Watts: 120W
Amps: 1.0A
Length: 40 linear ft
Membrane Size: 15sqft

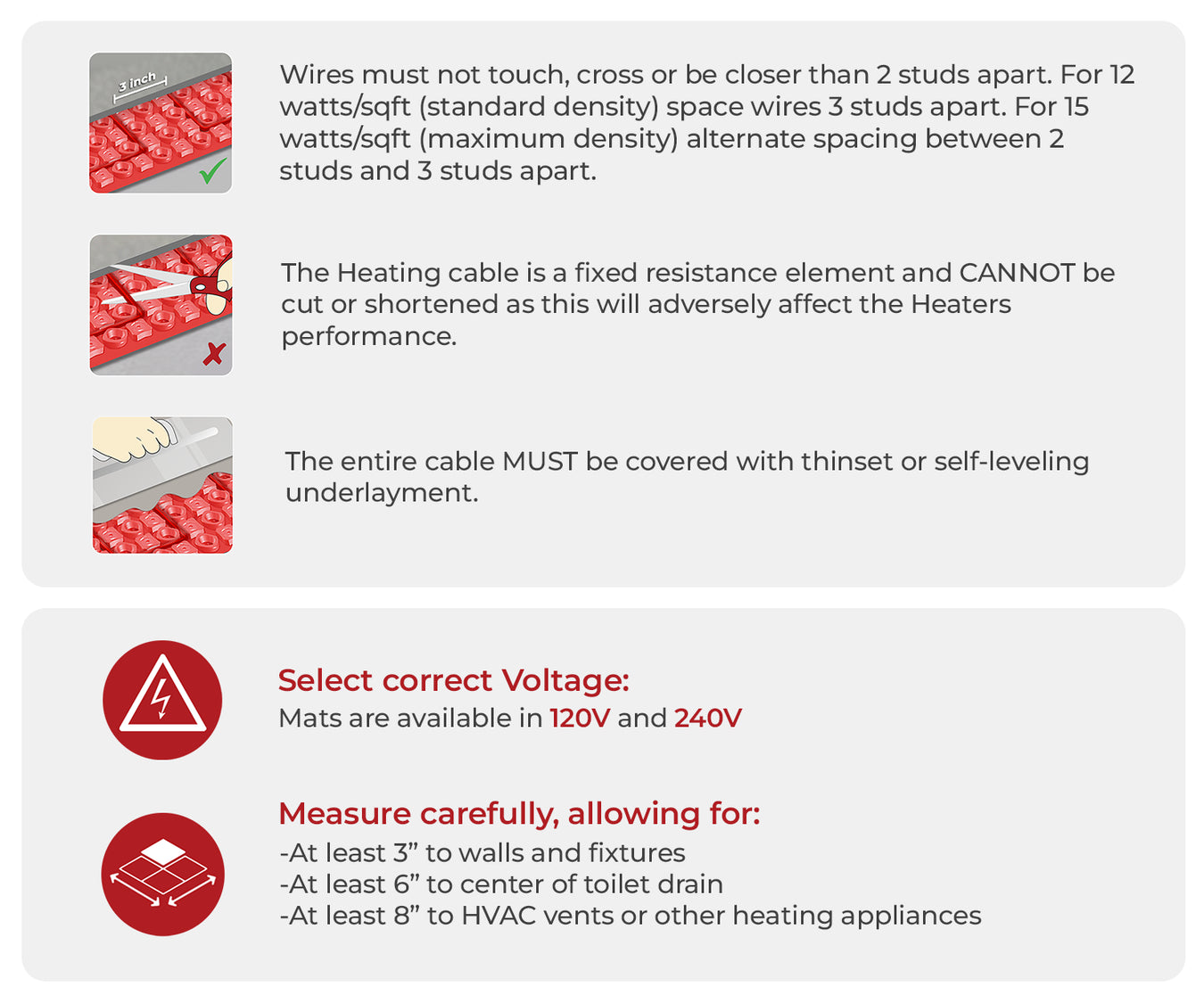

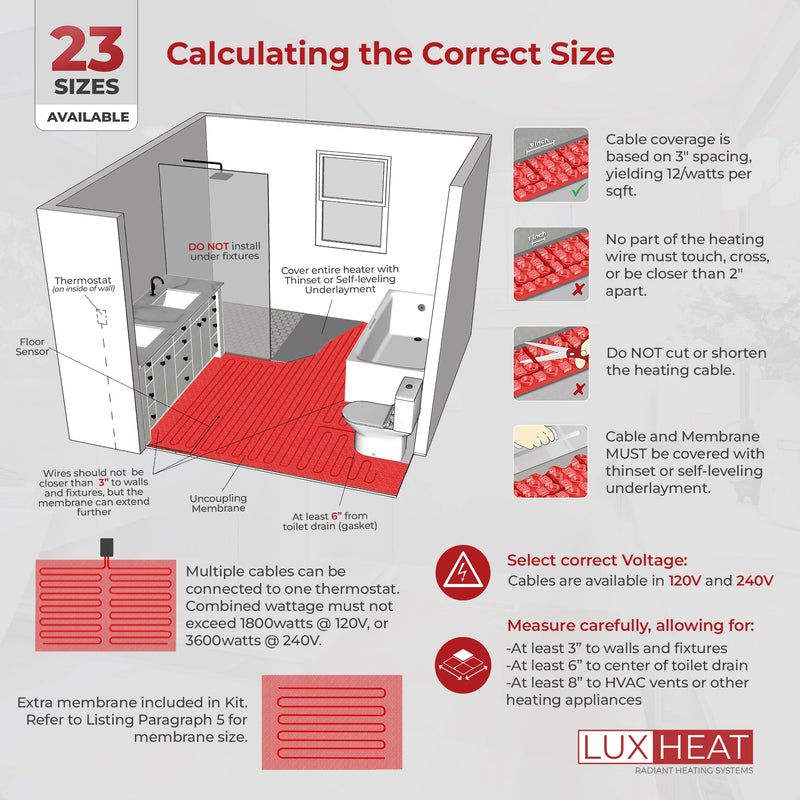

Cable Coverage @ 3" Spacing: 10sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 8.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 11.7 sqft
Cable Coverage @ 4" Spacing: 13.3 sqft

Voltage: 120V
Watts: 180W
Amps: 1.5A
Length: 60 linear ft
Membrane Size: 22sqft
Cable Coverage @ 3" Spacing: 15sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 12.5 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 17.5 sqft
Cable Coverage @ 4" Spacing: 20 sqft

Voltage: 120V
Watts: 240W
Amps: 2.0A
Length: 80 linear ft
Membrane Size: 30sqft
Cable Coverage @ 3" Spacing: 20sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 16.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 23.3 sqft
Cable Coverage @ 4" Spacing: 26.7 sqft

Voltage: 120V
Watts: 300W
Amps: 2.5A
Length: 100 linear ft
Membrane Size: 35sqft
Cable Coverage @ 3" Spacing: 25sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 20.8 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 29.1 sqft
Cable Coverage @ 4" Spacing: 33.3 sqft

Voltage: 120V
Watts: 360W
Amps: 3A
Length: 120 linear ft
Membrane Size: 45sqft
Cable Coverage @ 3" Spacing: 30sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 25 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 35 sqft
Cable Coverage @ 4" Spacing: 40 sqft

Voltage: 120V
Watts: 420W
Amps: 3.5A
Length: 140 linear ft
Membrane Size: 50sqft
Cable Coverage @ 3" Spacing: 35sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 29.2 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 40.8 sqft
Cable Coverage @ 4" Spacing: 46.7 sqft

Voltage: 120V
Watts: 480W
Amps: 4A
Length: 160 linear ft
Membrane Size: 55sqft
Cable Coverage @ 3" Spacing: 40sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 33.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 46.6 sqft
Cable Coverage @ 4" Spacing: 53.3 sqft

Voltage: 120V
Watts: 540W
Amps: 4.5A
Length: 180 linear ft
Membrane Size: 65sqft
Cable Coverage @ 3" Spacing: 45sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 37.5 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 52.4 sqft
Cable Coverage @ 4" Spacing: 60 sqft

Voltage: 120V
Watts: 600W
Amps: 5A
Length: 200 linear ft
Membrane Size: 75sqft
Cable Coverage @ 3" Spacing: 50sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 41.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 58.3 sqft
Cable Coverage @ 4" Spacing: 66.7 sqft

Voltage: 120V
Watts: 720W
Amps: 6A
Length: 240 linear ft
Membrane Size: 85sqft
Cable Coverage @ 3" Spacing: 60sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 50 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 69.9 sqft
Cable Coverage @ 4" Spacing: 80 sqft

Voltage: 120V
Watts: 840W
Amps: 7A
Length: 280 linear ft
Membrane Size: 95sqft
Cable Coverage @ 3" Spacing: 70sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 58.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 81.6 sqft
Cable Coverage @ 4" Spacing: 93.3 sqft

Voltage: 120V
Watts: 960W
Amps: 8A
Length: 320 linear ft
Membrane Size: 105sqft
Cable Coverage @ 3" Spacing: 80sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 66.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 93.2 sqft
Cable Coverage @ 4" Spacing: 106.7 sqft

Voltage: 120V
Watts: 1080W
Amps: 9A
Length: 360 linear ft
Membrane Size: 120sqft
Cable Coverage @ 3" Spacing: 90sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 75 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 104.9 sqft
Cable Coverage @ 4" Spacing: 120 sqft

Voltage: 120V
Watts: 1200W
Amps: 10A
Length: 400 linear ft
Membrane Size: 130sqft
Cable Coverage @ 3" Spacing: 100sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3"): 83.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4"): 116.5 sqft
Cable Coverage @ 4" Spacing: 133.3 sqft

Voltage: 120V
Watts: 1320W
Amps: 11.0A
Length: 440 linear ft
Membrane Size: 145sqft
Cable Coverage @ 3" Spacing: 110sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 91.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 128.2 sqft
Cable Coverage @ 4" Spacing: 146.7 sqft

Voltage: 120V
Watts: 1440W
Amps: 12A
Length: 480 linear ft
Membrane Size: 161sqft
Cable Coverage @ 3" Spacing: 120sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 100 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 139.8 sqft
Cable Coverage @ 4" Spacing: 160sqft

Voltage: 120V
Watts: 1560W
Amps: 13A
Length: 520 linear ft
Membrane Size: 161sqft
Cable Coverage @ 3" Spacing: 130sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 108.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 151.5 sqft
Cable Coverage @ 4" Spacing: 173.3sqft

Voltage: 120V
Watts: 1680W
Amps: 14A
Length: 560 linear ft
Membrane Size: 161sqft
Cable Coverage @ 3" Spacing: 140sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 116.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 163.1 sqft
Cable Coverage @ 4" Spacing: 186.7 sqft

Voltage: 120V
Watts: 1800W
Amps: 15A
Length: 600 linear ft
Membrane Size: 170sqft
Cable Coverage @ 3" Spacing: 150sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 125 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 174.8 sqft
Cable Coverage @ 4" Spacing: 200 sqft

Voltage: 240V
Watts: 480W
Amps: 2A
Length: 160 linear ft
Membrane Size: 55sqft
Cable Coverage @ 3" Spacing: 40sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 33.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 46.6 sqft
Cable Coverage @ 4" Spacing: 53.3 sqft

Voltage: 240V
Watts: 600W
Amps: 2.5A
Length: 200 linear ft
Membrane Size: 75sqft
Cable Coverage @ 3" Spacing: 50sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 41.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 58.3 sqft
Cable Coverage @ 4" Spacing: 66.7 sqft

Voltage: 240V
Watts: 720W
Amps: 3A
Length: 240 linear ft
Membrane Size: 85sqft
Cable Coverage @ 3" Spacing: 60sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 50 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 69.9 sqft
Cable Coverage @ 4" Spacing: 80 sqft

Voltage: 240V
Watts: 840W
Amps: 3.5A
Length: 280 linear ft
Membrane Size: 95sqft
Cable Coverage @ 3" Spacing: 70sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 58.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 81.6 sqft
Cable Coverage @ 4" Spacing: 93.3 sqft

Voltage: 240V
Watts: 960W
Amps: 4A
Length: 320 linear ft
Membrane Size: 105sqft
Cable Coverage @ 3" Spacing: 80sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 66.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 93.2 sqft
Cable Coverage @ 4" Spacing: 106.7 sqft

Voltage: 240V
Watts: 1080W
Amps: 4.5A
Length: 360 linear ft
Membrane Size: 120sqft
Cable Coverage @ 3" Spacing: 90sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 75 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 104.9 sqft
Cable Coverage @ 4" Spacing: 120 sqft

Voltage: 240V
Watts: 1200W
Amps: 5A
Length: 400 linear ft
Membrane Size: 130sqft
Cable Coverage @ 3" Spacing: 100sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 83.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 116.5 sqft
Cable Coverage @ 4" Spacing: 133.3 sqft

Voltage: 240V
Watts: 1440W
Amps: 6A
Length: 480 linear ft
Membrane Size: 161sqft
Cable Coverage @ 3" Spacing: 120sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 100 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 139.8 sqft
Cable Coverage @ 4" Spacing: 160 sqft

Voltage: 240V
Watts: 1680W
Amps: 7A
Length: 560 linear ft
Membrane Size: 161sqft
Cable Coverage @ 3" Spacing: 140sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 116.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 163.1 sqft
Cable Coverage @ 4" Spacing: 186.7 sqft

Voltage: 240V
Watts: 1920W
Amps: 8A
Length: 640 linear ft
Membrane Size: 183sqft
Cable Coverage @ 3" Spacing: 160sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 133.3 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 186.4 sqft
Cable Coverage @ 4" Spacing: 213.3 sqft

Voltage: 240V
Watts: 2160W
Amps: 9A
Length: 720 linear ft
Membrane Size: 206sqft
Cable Coverage @ 3" Spacing: 180sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 150 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 209.7 sqft
Cable Coverage @ 4" Spacing: 240 sqft

Voltage: 240V
Watts: 2400W
Amps: 10A
Length: 800 linear ft
Membrane Size: 226sqft
Cable Coverage @ 3" Spacing: 200sqft (industry standard)

Alternate Coverage Options:
Cable Coverage @ 2.5" Spacing (alternate 3",2",3") : 166.7 sqft
Cable Coverage @ 3.5" Spacing (alternate 4",3",4") : 233 sqft
Cable Coverage @ 4" Spacing: 266.7 sqft

Select Voltage: 120V
Select Size: 10 sqft
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

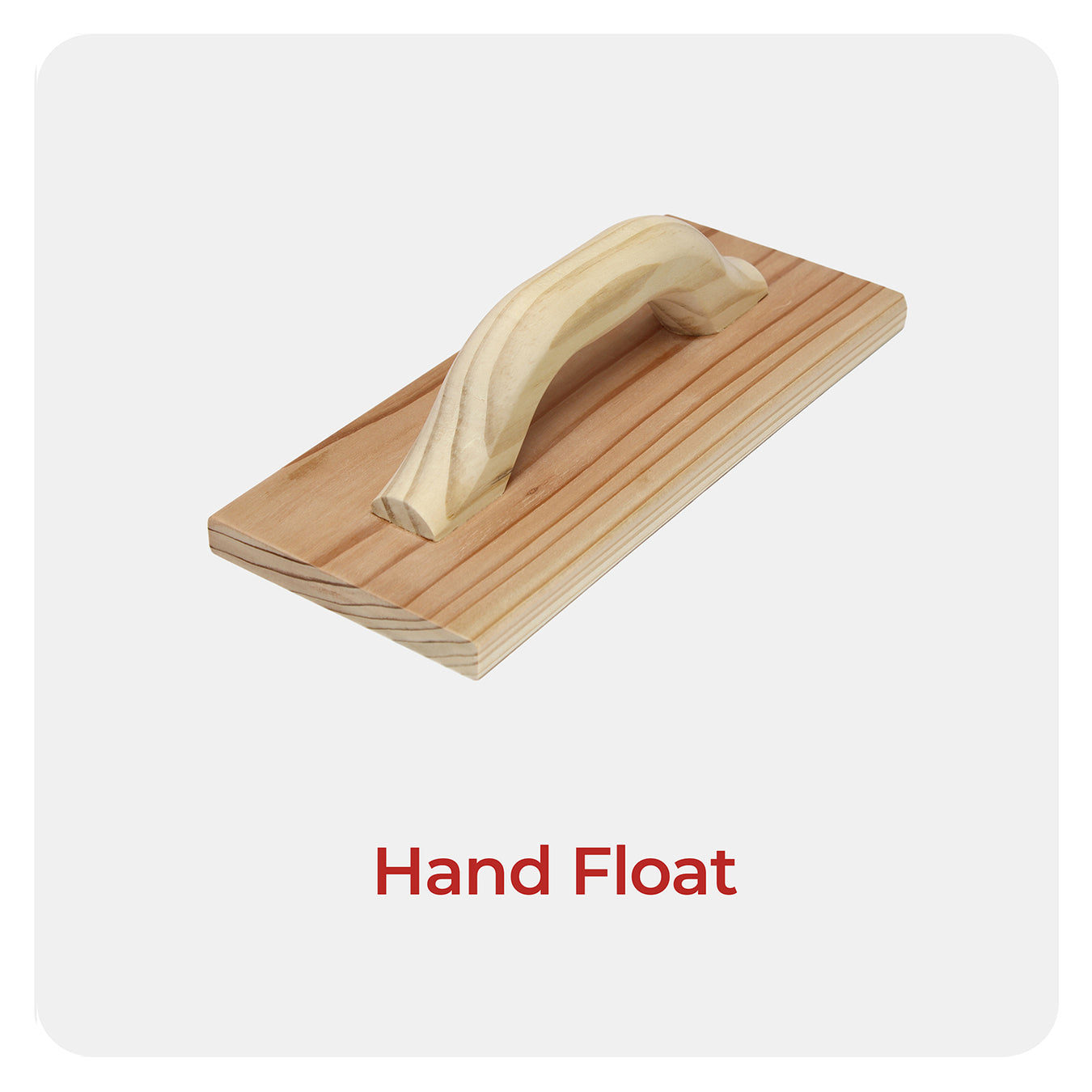

Kit Contents

The LuxHeat Radiant Floor Heating Cable System with Uncoupling Membrane & WiFi Thermostat kit includes all the key components for a functional and luxurious Radiant Floor Heating System.

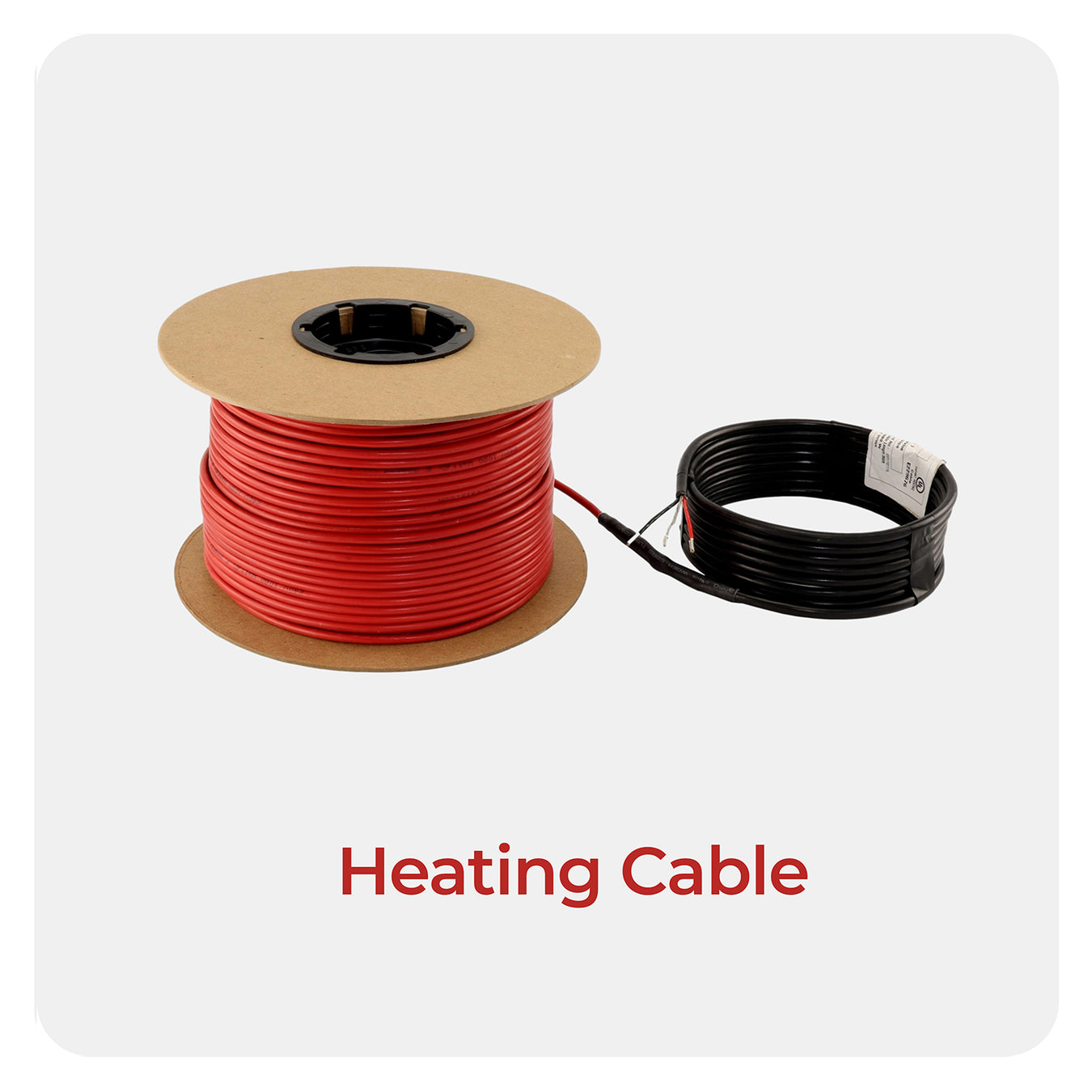

Features & Benefits

Features & Benefits

✔ Features double insulation and a single cold lead for improved safety.

✔ cULus certified for both the USA and Canada, rated safe for wet environments.

✔ Provides consistent heat output of 12W per square foot with 3-inch wire spacing.

✔ Dual conductor technology with an aluminum foil sheath and ground wire ensures ultra-low EMF levels.

✔ Extra-thin heating wire (less than 5/32 inches) minimizes floor height impact.

✔ Easily adaptable—install the cable in any layout to fit your space.

✔ Recommended by medical professionals for allergy-sensitive individuals.

✔ Safe for kids, seniors, and pets—no exposed heating elements or moving parts.

✔ Say goodbye to bulky heaters, storage hassles, maintenance, and unpleasant odors.

✔ Enjoy invisible, silent and odorless warmth and comfort.

Membrane Features

Membrane Features

✔ Ideal for residential and commercial tile installations over cement slabs and wood substrates.

✔ Enhances floor durability with crack isolation and vapor management protection.

✔ Innovative Vapor Management System: Open-air channels under the fleece layer allow moisture to escape.

✔ Compatible with various heating cables up to 0.2” (5 mm) thick for flexible installation.

✔ Designed for 3" (7.6 cm) cable spacing, ensuring optimal heat distribution per manufacturer guidelines.

✔ 0.26" (6.5 mm) thick—can be installed without cables for a seamless transition to higher floors.

✔ Achieved an EXTRA HEAVY performance rating under ASTM C627 testing standards.

Thermostat Features

Thermostat Features

✔ Stay connected with WiFi control, allowing remote access anytime, anywhere.

✔ Compatible with Google Home and Amazon Alexa devices for effortless voice operation.

✔ Quick and easy Bluetooth pairing for a smooth setup experience.

✔ Control everything from your phone via the user-friendly app for iOS or Android.

✔ Elegant LED touchscreen interface for a sleek, modern look and simple control.

✔ Energy-efficient self-regulating technology maintains your ideal temperature while saving power.

✔ Built-in Class A GFCI for reliable Ground Fault protection.

✔ Approved by cULus for US and Canada.

✔ Dual temperature sensing (air and floor) and compatible with 120V or 240V.

Floor Sensor Features

Floor Sensor Features

The Floor Sensor provides accurate temperature monitoring to optimize your Radiant Floor Heating System’s performance. It enhances warmth, energy savings, and ensures protection of temperature-sensitive floors such as laminate and hardwood.

✔ Advanced temperature detection for consistent heating

✔ NTC 10K ohm sensor (77°F/25°C) for precise readings

✔ 15 ft (4.3 m) cable for versatile installation

✔ Designed for use with most floor heating systems

✔ Compatible with multiple floor heating controls

Installation Monitor Features

Installation Monitor Features

The LuxHeat Installation Monitor offers real-time continuity monitoring of your electric floor heating system, ensuring a hassle-free and secure installation process.

✔ Instantly sounds an alarm if the heating element is damaged.

✔ Simple hookup to heating cables—compatible with all Electric Heating Cable and Mat Systems.

✔ Green light confirms the system is operating correctly.

✔ Constantly checks for continuity and triggers an alarm if a break is detected.

✔ Built for multiple uses—reusable for future installations.

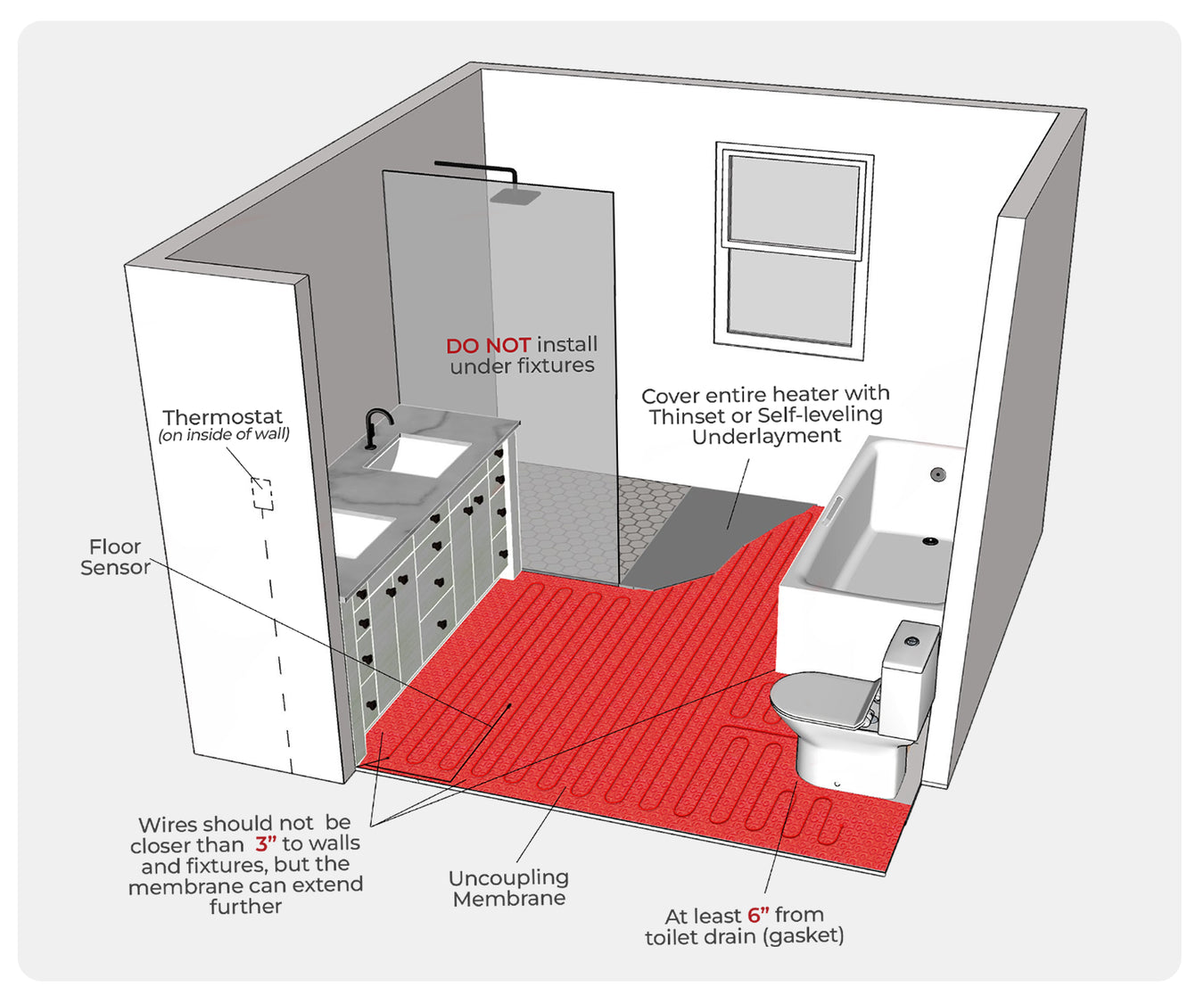

How To Select the Correct Size Heating Cable

Testimonials
