LuxHeat Radiant Floor Heating Mat System with WiFi LED Thermostat

LuxHeat Radiant Floor Heating Mat System with WiFi LED Thermostat

$279.00
$279.00 - $1,299.00
$279.00
$214.00
$214.00 - $999.00
$214.00

Enjoy the beauty and practicality of tile, vinyl, or hardwood floors without sacrificing comfort. Our new LuxHeat Mat Kit with UWG5 WiFi Touch LED Thermostat offers safe, luxurious heating for any room in your home.

Our LuxHeat Mat, with pre-spaced heating cable on mesh, is designed for quicker installation and consistent heat distribution. The mat’s ultra-thin profile ensures minimal impact on your finished floor height, making it ideal for both renovations and new builds.

Control your heating system from anywhere with the new OJ Microline UWG5-4999 WiFi LED touchscreen thermostat. Easily adjust schedules, change temperatures remotely from your phone, or integrate with Google Home and Amazon Alexa devices for effortless voice control. The latest Bluetooth setup feature makes installation a breeze.

  • 25 Year Warranty
  • 12 watts/sq. foot
  • cULus Approved for USA & Canada
  • Safe for Wet Areas including showers
  • Mat dimensions: 20" wide, length varies according to sq. feet

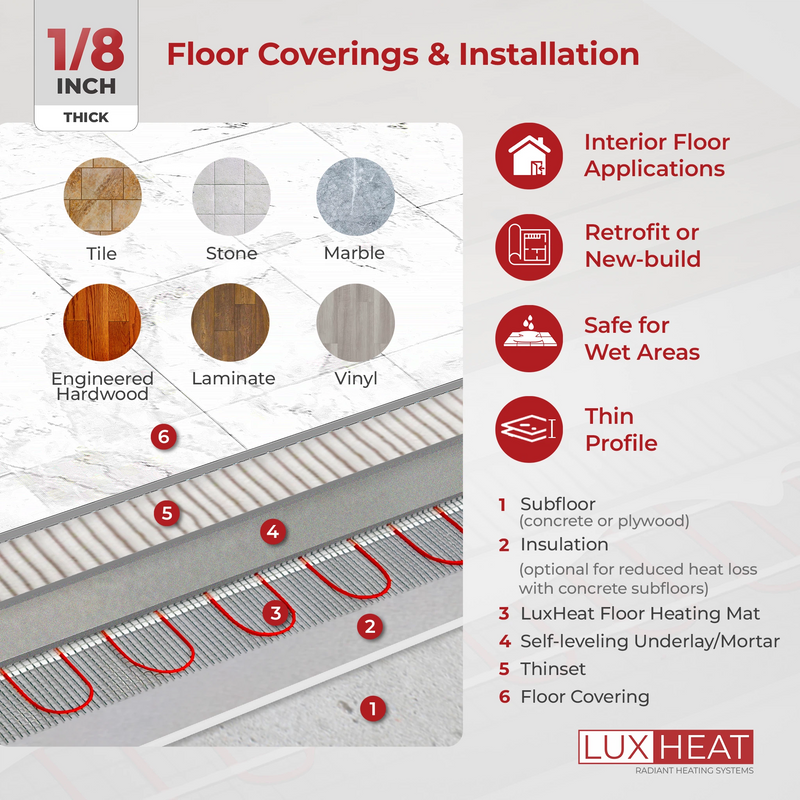

  • Suitable for under tile, laminate, vinyl, hardwood and more
  • Includes OJ Microline UWG5-4999 WiFi LED Touch Programmable Thermostat
Technical Specifications

Voltage: 120V
Watts: 120W
Amps: 1A
Width: 1.64ft
Length: 6.10ft
Coverage: 10sqft

Voltage: 120V
Watts: 180W
Amps: 1.5A
Width: 1.64ft
Length: 9.15ft
Coverage: 15sqft

Voltage: 120V
Watts: 240W
Amps: 2A
Width: 1.64ft
Length: 12.2ft
Coverage: 20sqft

Voltage: 120V
Watts: 300W
Amps: 2.5A
Width: 1.64ft
Length: 15.24ft
Coverage: 25sqft

Voltage: 120V
Watts: 360W
Amps: 3A
Width: 1.64ft
Length: 18.29ft
Coverage: 30sqft

Voltage: 120V
Watts: 420W
Amps: 3.5A
Width: 1.64ft
Length: 21.34ft
Coverage: 35sqft

Voltage: 120V
Watts: 480W
Amps: 4A
Width: 1.64ft
Length: 24.39ft
Coverage: 40sqft

Voltage: 120V
Watts: 540W
Amps: 4.5A
Width: 1.64ft
Length: 27.44ft
Coverage: 45sqft

Voltage: 120V
Watts: 600W
Amps: 5A
Width: 1.64ft
Length: 30.49ft
Coverage: 50sqft

Voltage: 120V
Watts: 720W
Amps: 6A
Width: 1.64ft
Length: 36.59ft
Coverage: 60sqft

Voltage: 120V
Watts: 840W
Amps: 7A
Width: 1.64ft
Length: 42.68ft
Coverage: 70sqft

Voltage: 120V
Watts: 960W
Amps: 8A
Width: 1.64ft
Length: 48.78ft
Coverage: 80sqft

Voltage: 120V
Watts: 1080W
Amps: 9A
Width: 1.64ft
Length: 54.88ft
Coverage: 90sqft

Voltage: 120V
Watts: 1200W
Amps: 10A
Width: 1.64ft
Length: 60.98ft
Coverage: 100sqft

Voltage: 120V
Watts: 1320W
Amps: 11A
Width: 1.64ft
Length: 67.07ft
Coverage: 110sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1440W
Amps: 12A
Width: 1.64ft
Length: 73.17ft
Coverage: 120sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1560W
Amps: 13A
Width: 1.64ft
Length: 79.27ft
Coverage: 130sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1680W
Amps: 14A
Width: 1.64ft
Length: 85.37ft
Coverage: 140sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1800W
Amps: 15A
Width: 1.64ft
Length: 91.46ft
Coverage: 150sqft

Supplied as two heating mats

Voltage: 240V
Watts: 420W
Amps: 1.8A
Width: 1.64ft
Length: 21.34ft
Coverage: 35sqft

Voltage: 240V
Watts: 480W
Amps: 2A
Width: 1.64ft
Length: 24.39ft
Coverage: 40sqft

Voltage: 240V
Watts: 540W
Amps: 2.3A
Width: 1.64ft
Length: 27.44ft
Coverage: 45sqft

Voltage: 240V
Watts: 600W
Amps: 2.5A
Width: 1.64ft
Length: 30.49ft
Coverage: 50sqft

Voltage: 240V
Watts: 660W
Amps: 2.8A
Width: 1.64ft
Length: 33.54ft
Coverage: 55sqft

Voltage: 240V
Watts: 720W
Amps: 3A
Width: 1.64ft
Length: 36.59ft
Coverage: 60sqft

Voltage: 240V
Watts: 840W
Amps: 3.5A
Width: 1.64ft
Length: 42.68ft
Coverage: 70sqft

Voltage: 240V
Watts: 960W
Amps: 4A
Width: 1.64ft
Length: 48.78ft
Coverage: 80sqft

Voltage: 240V
Watts: 1080W
Amps: 4.5A
Width: 1.64ft
Length: 54.88ft
Coverage: 90sqft

Voltage: 240V
Watts: 1200W
Amps: 5A
Width: 1.64ft
Length: 60.98ft
Coverage:100sqft

Voltage: 240V
Watts: 1440W
Amps: 6A
Width: 1.64ft
Length: 73.17ft
Coverage: 120sqft

Voltage: 240V
Watts: 1680W
Amps: 7A
Width: 1.64ft
Length: 85.37ft
Coverage: 140sqft

Voltage: 240V
Watts: 1920W
Amps: 8A
Width: 1.64ft
Length: 97.56ft
Coverage: 160sqft

Voltage: 240V
Watts: 2160W
Amps: 9A
Width: 1.64ft
Length: 109.76ft
Coverage: 180sqft

Voltage: 240V
Watts: 2400W
Amps: 10
Width: 1.64ft
Length: 121.95ft
Coverage: 200sqft

Select Voltage: 120V
Select Size: 10 sqft
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

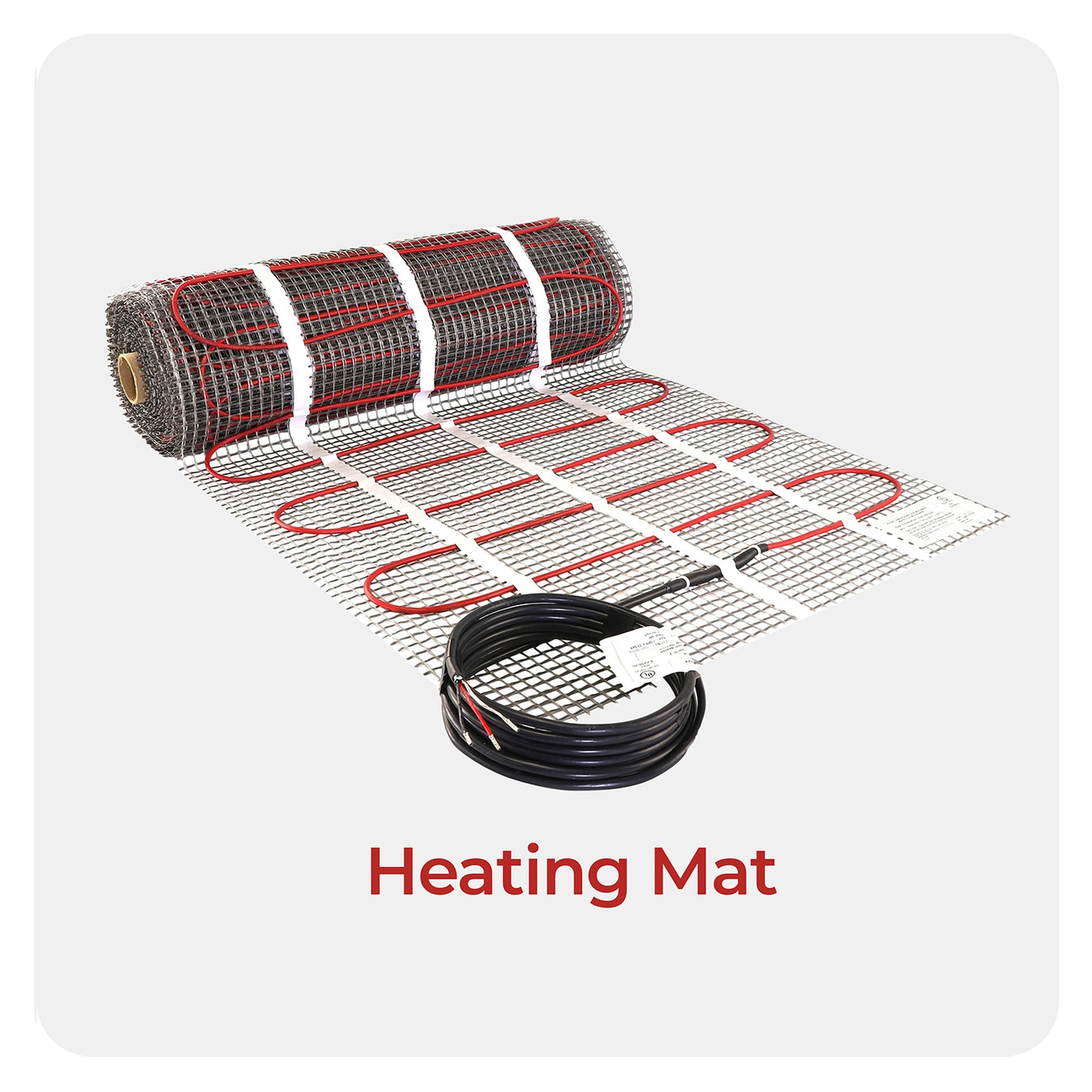

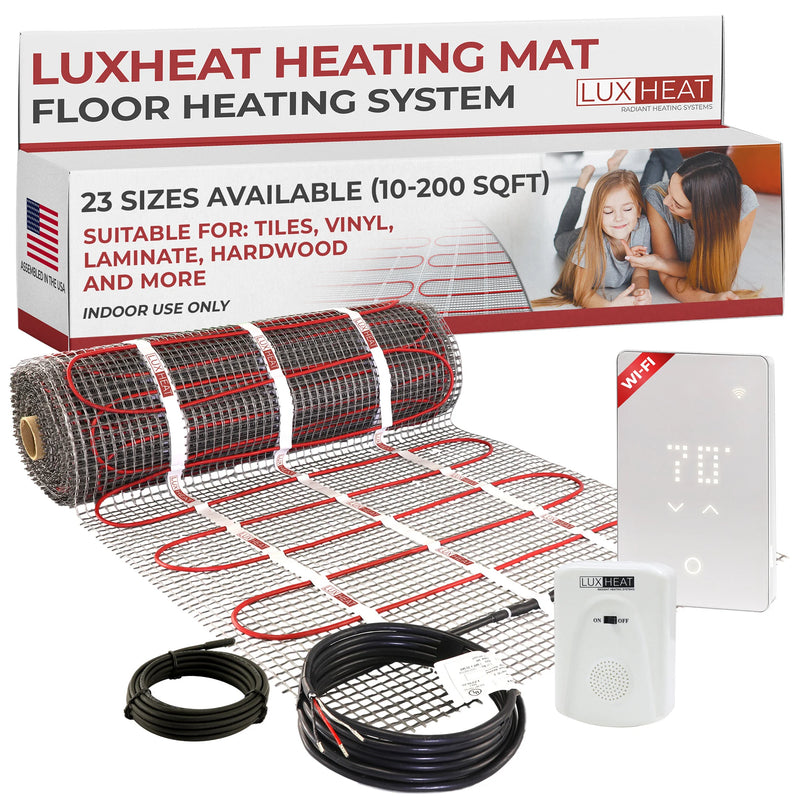

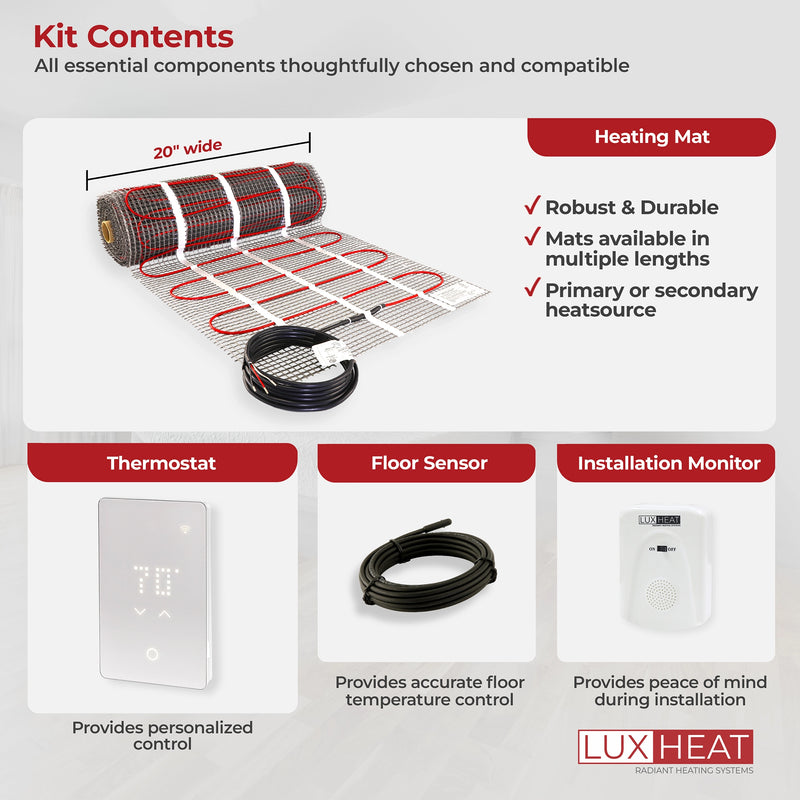

Kit Contents

This floor heating mat and WiFi thermostat kit includes all the key components for a functional and luxurious Radiant Floor Heating System.
Features & Benefits

Features & Benefits

✔ Single cold lead with double insulation for increased durability and safety.

✔ Certified by cULus for the U.S. and Canada, and safe for wet locations.

✔ Even heat distribution with pre-spaced wires every 3 inches, delivering 12W per sq. ft.

✔ Advanced dual-conductor technology with foil sheath for ultra-low EMF.

✔ Slim heater wire, at less than 5/32 inches thick, ensuring minimal impact to your floor height.

✔ Self-adhesive mesh on one side and double-sided tape on the other for a secure, flat installation.

✔ Recommended by health professionals for allergy sufferers.

✔ No bulky heaters, storage issues, maintenance, or unwanted odors.

✔ Safe for kids, seniors, and pets—no hot, exposed, or moving parts.

Thermostat Features

Thermostat Features

✔ WiFi connectivity for full control and monitoring from anywhere.

✔ Voice control compatible via integration with Google Home and Amazon Alexa.

✔ Quick and easy smart setup via new Bluetooth feature.

✔ Adjust schedules and settings via the user-friendly app for iOS or Android.

✔ Sleek LED touch interface for enhanced aesthetics and minimalistic styling.

✔ Equipped with self-adjusting technology for maximum save energy savings while maintaining your ideal temperature.

✔ Built-in floor protection settings for safe and efficient operation.

✔ cULus Approved and features built-in Class A GFCI.

✔ Dual voltage (120V or 240V) and dual sensing (air and floor).

Floor Sensor Features

Floor Sensor Features

Achieve precise temperature regulation with the Floor Sensor, designed to improve the efficiency and performance of your Radiant Floor Heating System. It maximizes comfort, conserves energy, and enables protection of heat-sensitive flooring such as laminate and hardwood.

✔ High-precision temperature sensing.

✔ NTC 10K ohm sensor (77°F/25°C).

✔ 15 ft (4.3 m) cable for easy installation.

✔ Compatible with most floor heating systems.

✔ Works seamlessly with various floor heating controllers.

Installation Monitor Features

Installation Monitor Features

The LuxHeat Installation Monitor ensures a successful installation by continuously monitoring the live, neutral, and earth connections in real time.

✔ Loud alarm instantly alerts you if the heating element is damaged during installation.

✔ Easy connection to heating cables—compatible with all Electric Heating Cable and Mat Systems.

✔ Green indicator light stays on when the system is functioning properly.

✔ Actively checks system continuity and triggers an alarm if a break occurs.

✔ Reusable design—use it multiple times for future installations.

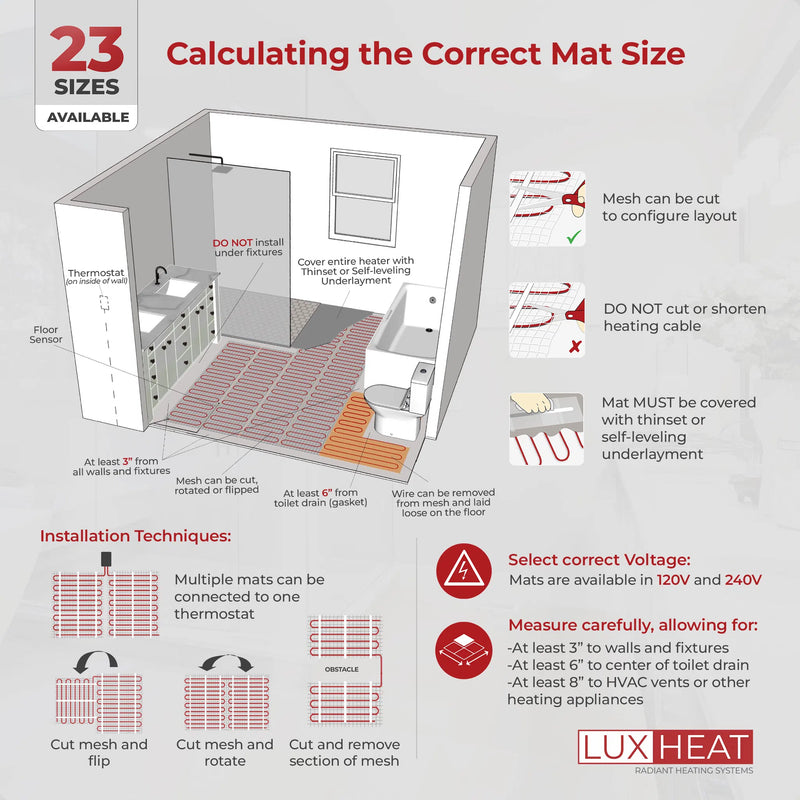

How To Select the Correct Size Heating Mat

How To Cut & Turn Your Mat

The mesh can be cut and turned to suit your layout. The Heating Cable cannot be cut or shortened.
