OJ Microline UDG4-4999 Touchscreen Programmable Thermostat
The OJ Microline UDG4-4999 is a touchscreen programmable thermostat built for electric radiant floor heating systems — pairing an intuitive 3.5" color touch interface with built-in Class A GFCI protection, dual sensing, and a full 7-day programming schedule in a single C-UL-us Listed unit. It works with LuxHeat floor heating cables and mats, and is compatible with most 120/240V electric radiant heating systems under tile, stone, laminate, concrete, wood, and carpet.
The OJ Microline floor heating thermostat features a new Install Wizard that walks you through setup directly on screen — eliminating the need to interpret a paper manual during installation. The built-in Adaptive function self-learns how long your floor takes to reach target temperature and adjusts the scheduled run time accordingly, saving energy without any manual intervention.
-

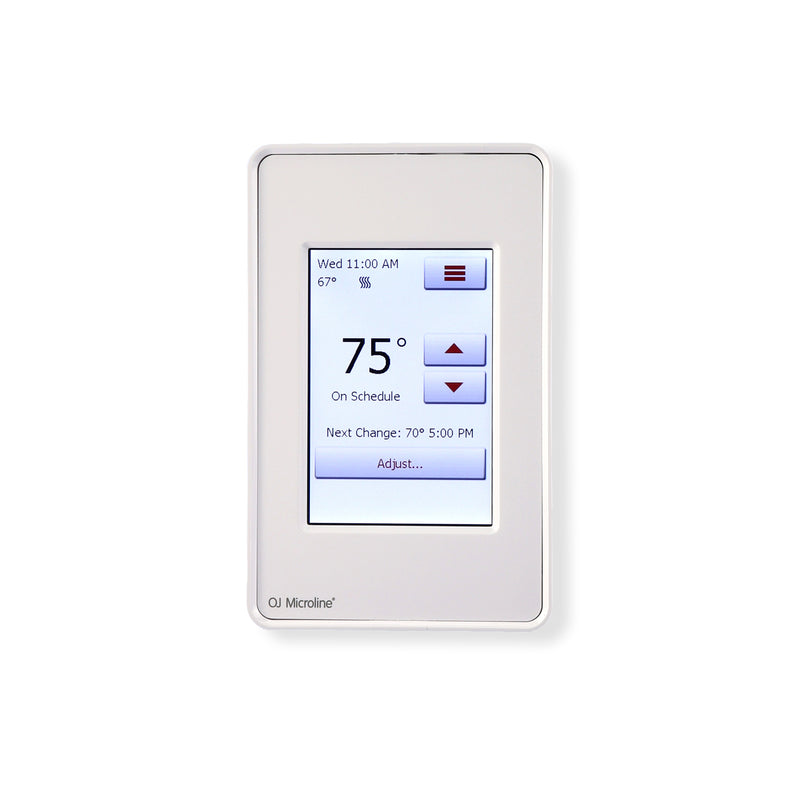

3.5" responsive color touchscreen — bright, modern display integrates cleanly into any décor; tap to adjust temperature or navigate the schedule
-
Class A GFCI built-in — eliminates the need for a separate GFCI outlet; certified for wet room and bathroom installations straight out of the box
-
7-day / 4-event programmable schedule — set different temperature profiles for morning, day, evening, and night across a full weekly calendar
-

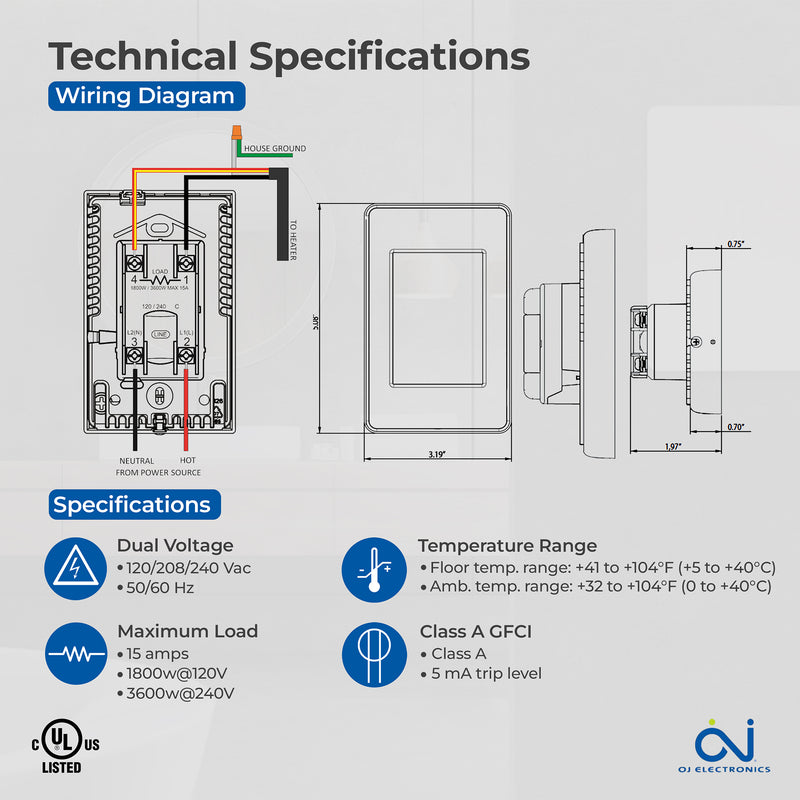

Dual voltage — 120V, 208V, 240V — one thermostat handles any standard North American radiant heating circuit up to 15A (1800W@120V / 3120W@208V / 3600W@240V)
-
Dual sensing — air + floor — simultaneously monitors ambient temperature and floor surface temperature to prevent overheating sensitive floor coverings including hardwood and laminate
-
Includes NTC 10K Ohm floor sensor — sensor arrives in the box; floor temperature range +41–104°F (+5–40°C)
-
Adaptive self-learning function — thermostat tracks how long your floor takes to heat and automatically adjusts run time each cycle, reducing energy consumption over time
-
Additional features — Child Lock, Vacation Mode, Open Window Mode, temporary overrides, and energy readout with power logging
The OJ Microline UDG4-4999 is C-UL-us Listed and certified for wet room installations. Backed by OJ Electronics' 3-year factory warranty. Compatible with LuxHeat systems and most other 120/240V electric radiant heating cables and mats. Free shipping within the contiguous US.
We also offer the OJ Microline Power Module (USG-4000).
Frequently Asked Questions
Is the OJ Microline UDG4-4999 compatible with my existing floor heating cable?
Yes — the UDG4-4999 works with any 120V or 240V electric radiant floor heating system, including all LuxHeat cables and mats and most other brands. It handles loads up to 15A (1800W at 120V / 3600W at 240V). If your heating system draws more than 15A, a separate power module (such as the OJ Microline USG-4000) is required alongside the thermostat.
Does the UDG4-4999 need a separate GFCI outlet?
No. The OJ Microline UDG4-4999 has a Class A GFCI circuit built directly into the thermostat, so no additional GFCI outlet or breaker is needed. It is C-UL-us Listed and factory-certified for wet room and bathroom installations as-is.
What is the difference between the OJ Microline UDG4-4999 and the UDG-4999?
The UDG4-4999 features a 3.5" color touchscreen and an Install Wizard to walk you easily through setup. The UDG-4999 is a push-button 7-day programmable thermostat without a touchscreen. Both models include GFCI, dual voltage (120/240V), dual sensing, and a floor sensor — the key differences are the interface and the energy optimization feature in the UDG4 model.
