Are Floor Heating Thermostats Interchangeable? What You Need to Know

It’s a fair question when a thermostat needs replacing or upgrading: Are floor-heating thermostats interchangeable, or can you simply swap one model for another? At a glance, many thermostats look similar. They mount on the wall, connect to power, and control temperature.

With radiant floor heating, thermostats play a more specific role than most people realize. Floor heating thermostats are not universally interchangeable. While many electric radiant systems use similar voltage and sensor types, thermostats must match the system’s voltage, electrical load, and floor sensor specifications for the system to operate safely and accurately.

Choosing the wrong replacement can lead to inaccurate readings, poor comfort, or a system that does not heat at all. If you are working with electric radiant systems, purpose-built floor heating thermostats are designed to manage both comfort and system safety in ways standard thermostats cannot.

This article explains when floor heating thermostats can be swapped, when they cannot, and what must match for a replacement to work correctly.

Why Floor Heating Thermostats Are Different

Floor heating thermostats do more than regulate air temperature. In radiant floor systems, the thermostat is responsible for monitoring floor temperature, protecting the heating elements, and maintaining consistent comfort over long heating cycles.

Most radiant thermostats work with a floor temperature sensor embedded beneath the flooring. This sensor feeds real-time data back to the thermostat so it knows when the floor is warming, when to reduce output, and when to shut the system off entirely.

Because the heating elements are hidden beneath finished flooring, the thermostat becomes the system’s primary safeguard. That is why interchangeability depends on more than just matching voltage or wiring.

The Role of Floor Sensors in Interchangeability

The floor sensor is one of the biggest reasons floor heating thermostats are not always interchangeable. Sensors vary by resistance values and temperature curves. A thermostat is calibrated to work with a specific sensor type.

If a replacement thermostat is not compatible with the existing floor sensor, it may misread the temperature or fail to detect the sensor at all. This can cause the floor to underheat, overheat, or remain cold even when the system is functioning.

Many electric radiant systems use a 10k ohm floor sensor, which has become an industry standard. Thermostats that support 10k sensors often have broader compatibility across different heating cable brands.

Some thermostats, such as OJ Microline models, allow selection between multiple sensor types, which increases flexibility. Others are locked to a specific sensor range, making direct substitution impossible unless the sensor is also replaced.

Voltage and Load Ratings Must Match

Floor heating thermostats are designed to handle specific electrical loads. Electric radiant systems commonly operate on either 120V or 240V circuits, and the thermostat must match that voltage.

Beyond voltage, the thermostat must also be rated to handle the amperage drawn by the heating system. If the load exceeds the thermostat’s rating, the thermostat may fail or shut down for safety reasons.

Some thermostats can control only one heating zone directly, while others can work with relays or contactors for larger installations. These differences affect whether one thermostat can replace another without additional components.

Control Logic: Floor, Air, or Dual-Sensing

Not all floor heating thermostats control temperature the same way. Some rely exclusively on floor temperature, others use a built-in air sensor, and some combine both.

Floor-sensing thermostats prioritize protecting the floor surface and are commonly used where floor temperature limits are critical. Air-sensing thermostats focus on room temperature but may still use a floor sensor as a safety limit.

If you replace a thermostat with a different control logic than the original, the system may behave differently than expected. The floor may feel cooler or warmer even if the thermostat setting appears similar.

Physical Fit and Wiring Differences

Even when electrical ratings match, physical design can affect interchangeability. Wiring terminals may be arranged differently, requiring rewiring inside the wall box.

Some thermostats require a deeper electrical box to accommodate wiring and internal components. Others may not fit flush if the box is shallow or crowded.

These physical considerations do not prevent replacement, but they can complicate what initially seems like a simple swap.

When Floor Heating Thermostats Can Be Interchanged

In some situations, floor heating thermostats can be swapped without major changes.

Interchangeability is more likely when:

• The replacement thermostat supports the same voltage and load
• The floor sensor type is compatible or configurable
• The control logic matches the original setup
• Wiring connections align with the existing installation

When these conditions are met, replacing a thermostat can be straightforward and may even improve comfort or usability.

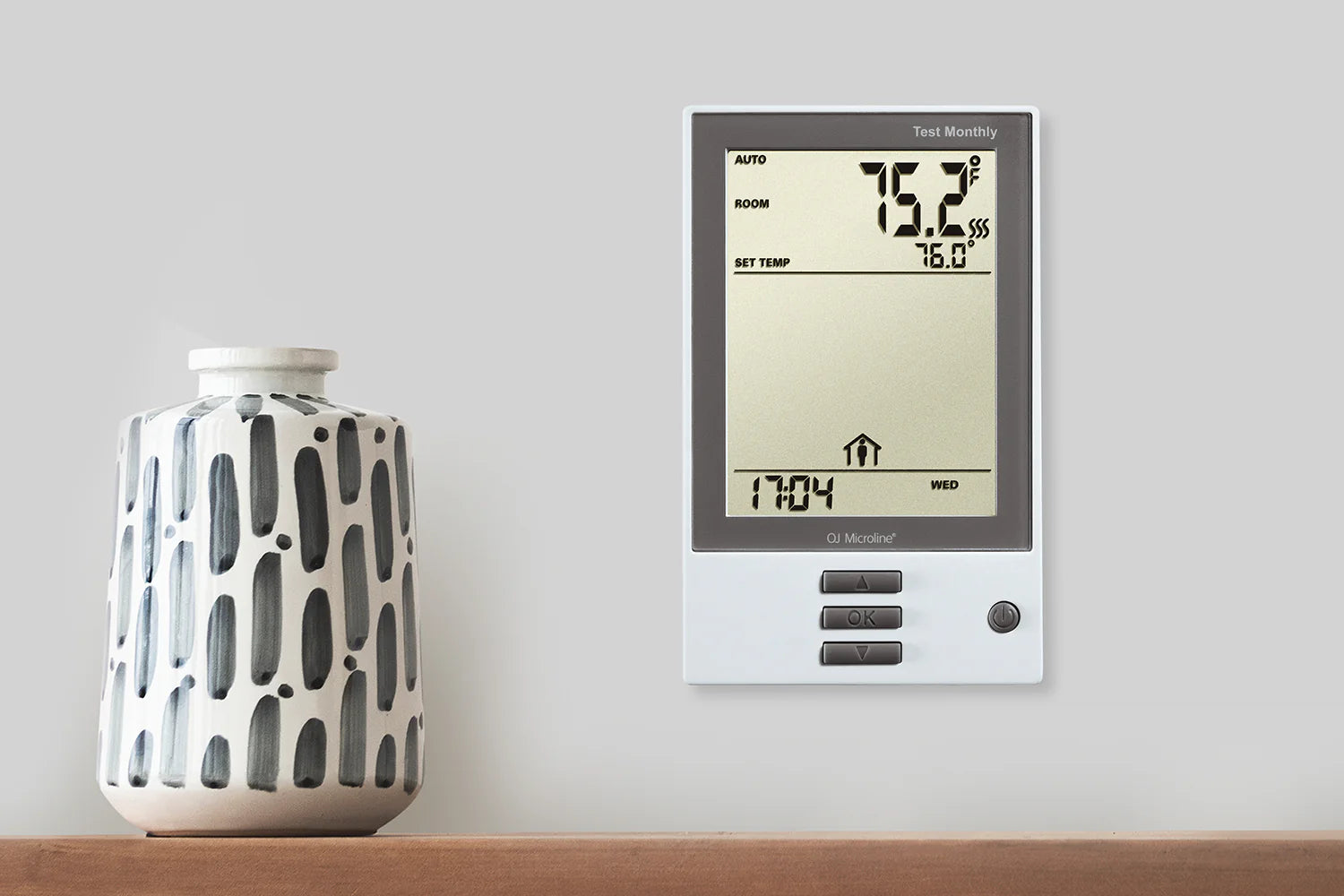

OJ Microline thermostats, available from ProLux Materials, are widely used in electric radiant floor heating systems and are designed to support common sensor types and electrical configurations used across many brands.

This flexibility is one reason OJ Microline thermostats are frequently used both in original installations and as replacement controls for existing radiant floor systems.

Common Situations Where Thermostats Are Not Interchangeable

Problems arise when one or more critical elements do not match.

Using a standard room thermostat not designed for radiant heating is a common mistake. These thermostats do not monitor floor temperature and can cause overheating or system shutdowns.

Replacing a thermostat without considering the existing sensor is another issue. If the sensor is embedded in the floor and incompatible with the new thermostat, replacing the sensor may require disturbing the flooring.

Load mismatches can also prevent interchangeability. A thermostat rated for smaller systems may not safely control larger heated floor areas.

Are Floor Heating Thermostats From Different Brands Compatible?

In some cases, thermostats from different manufacturers can control the same electric radiant heating systems. Compatibility depends less on brand and more on whether the thermostat supports the correct sensor type, voltage, and electrical load.

When these elements match, a thermostat from one brand may be able to replace another without modifying the heating cable or floor sensor.

Upgrading vs Replacing: A Practical Distinction

Replacing a thermostat implies maintaining the same basic control approach. Upgrading often changes how the system is managed.

Upgrades may introduce scheduling features, more precise temperature control, or improved user interfaces. While these changes can enhance comfort, they require compatibility checks to ensure the system continues to operate safely.

Understanding whether you are replacing like-for-like or changing how the system functions helps avoid unexpected performance changes.

Why Floor Heating Manufacturers Recommend Specific Thermostats

Manufacturers test thermostats with their heating systems to ensure consistent performance and safety. These recommendations are not arbitrary.

Using a compatible thermostat ensures accurate sensor readings, proper load handling, and predictable heating behavior. It also simplifies troubleshooting and reduces the risk of premature component failure.

While third-party thermostats may work in some cases, compatibility must be confirmed rather than assumed.

What to Check Before Swapping a Floor Heating Thermostat

Before replacing a thermostat, it is important to review a few key details:

• System voltage and amperage requirements
• Thermostat load rating (maximum amperage)
• Existing floor sensor type and resistance range
• Desired control method (floor, air, or combined)
• Whether the thermostat includes built-in GFCI protection
• Electrical box depth and wiring layout

Verifying these factors in advance reduces the risk of installing a thermostat that cannot properly control the system.

So, Are Floor Heating Thermostats Interchangeable?

Floor heating thermostats are not universally interchangeable. Some models can be swapped with minimal effort, while others require careful matching of sensors, electrical ratings, and control logic.

The safest approach is to choose a thermostat designed specifically for electric radiant floor heating and confirmed to be compatible with your system’s voltage, load, and sensor type. Doing so protects the heating elements, ensures accurate temperature control, and preserves long-term reliability.

Frequently Asked Questions

Can I use a regular wall thermostat for floor heating?
No. Standard wall thermostats do not monitor floor temperature and are not designed to control radiant floor heating systems safely.

Do all floor heating thermostats use the same floor sensor?
No. Floor sensors vary by resistance and temperature range, and thermostats are calibrated for specific sensor types.

Can I upgrade my floor heating thermostat without replacing the sensor?
Sometimes. This depends on whether the new thermostat supports the existing sensor’s specifications.

What happens if the thermostat is not compatible?
The system may fail to heat correctly, display errors, or shut down to protect the heating elements.

Can a Wi-Fi thermostat replace a standard floor heating thermostat?
In many cases yes, provided the Wi-Fi thermostat is designed for radiant floor heating and supports the same sensor type and electrical load as the existing thermostat.
