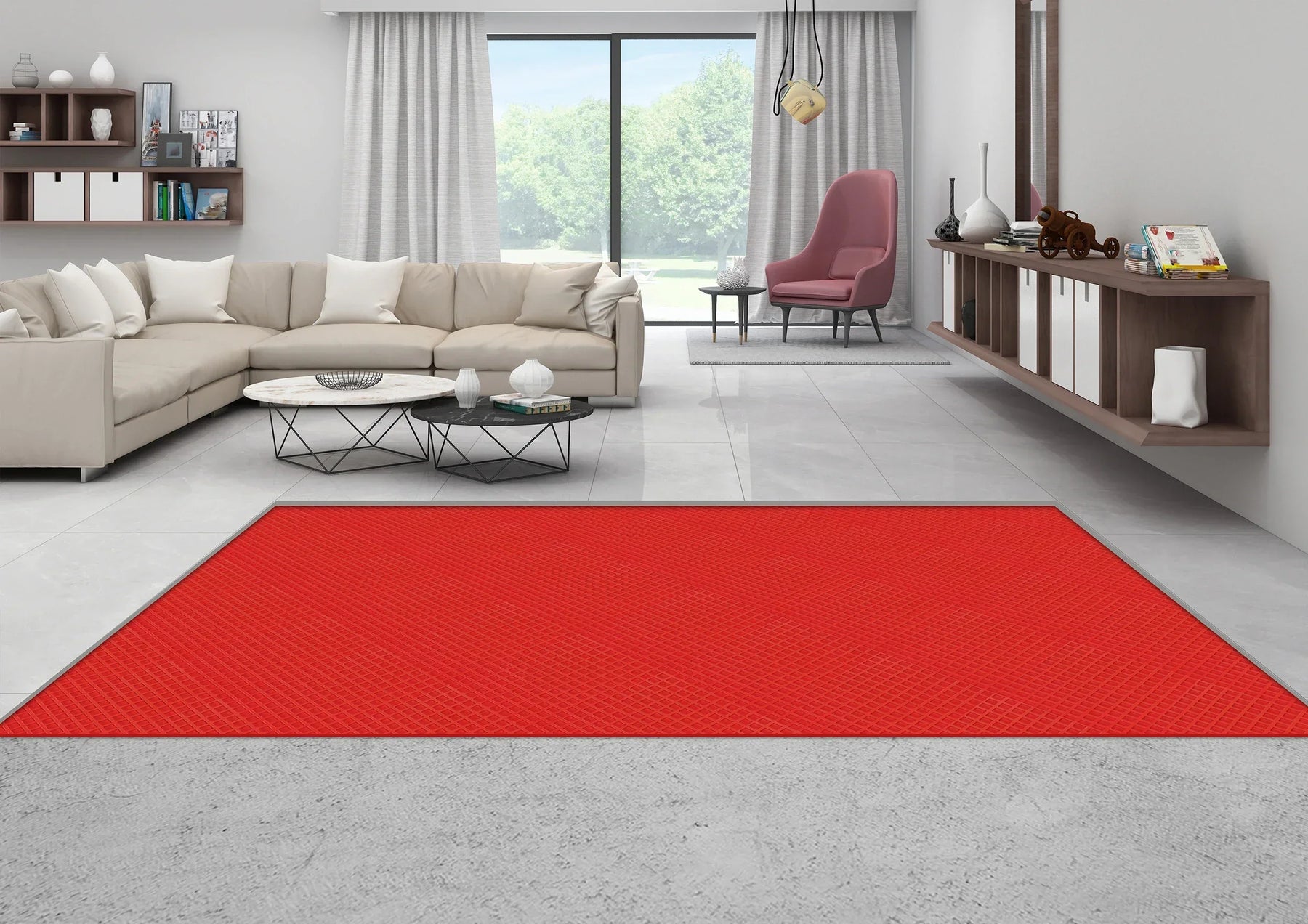

How Does an Uncoupling Membrane Work?

Tile is one of the most durable floor surfaces you can install — but only when the layers beneath it are set up to handle real-world movement. Subfloors flex. Concrete slabs shift. Temperature cycles expand and contract everything below your tile. Without something to absorb that stress, it transfers directly into the tile bond, and eventually, cracks show up in the grout or the tile itself. That's exactly the problem an uncoupling membrane is engineered to solve.

This guide breaks down the mechanics behind how uncoupling membranes work, when to use one, and how they integrate with heated floor systems — including ProLux's PROVA Flex-Heat, which combines uncoupling with an in-floor heating cable channel.

What Is an Uncoupling Membrane?

An uncoupling membrane is a thin polyethylene mat — typically about 1/8" thick — installed between the substrate (concrete, plywood, OSB) and the tile layer. It acts as a mechanical buffer that allows the substrate and tile assembly to move independently of each other.

The membrane is sometimes called a decoupling membrane. Both terms mean the same thing: the tile is structurally separated from the substrate below, so movement in one doesn't directly stress the other.

Most uncoupling membranes — including PROVA products — also provide crack isolation and, when seams are taped, moisture protection at the joints. So you often get three functions in one layer: uncoupling, crack isolation, and joint moisture protection.

How Does the Mechanism Actually Work?

The simplest way to understand it: an uncoupling membrane creates what engineers call a forgiving shear interface. When the substrate moves horizontally — due to thermal expansion, moisture changes, or minor structural deflection — the membrane allows that movement to happen without transmitting the shear stress up into the tile bond. Three physical features make this possible.

1. The Dimpled Cavity Layer

The top surface of an uncoupling membrane is covered in a grid of small square or dovetail-shaped cavities — the signature look of membranes like PROVA Flex and PROVA Flex-Heat. When tile is set, mortar fills these cavities from above and locks into them mechanically. But because the cavities are open-walled (not bonded solidly to the fleece below), the thinset-and-tile assembly can shift slightly relative to the membrane's base.

This cavity design also serves a second purpose: it creates a ventilated air space that allows moisture vapor to migrate laterally and escape at the edges, rather than becoming trapped beneath the tile and causing adhesive failure.

2. The Anchoring Fleece

The underside of the membrane is bonded to a polypropylene fleece layer. When the membrane is set into thinset on the substrate, this fleece bonds firmly to the mortar bed — that connection is solid and permanent. The fleece is what holds the membrane to the floor.

The key: the fleece is attached to the bottom of the membrane, but the dimpled top surface has its own degree of in-plane freedom. So the bottom is bonded to the slab, the tile is bonded to the top, and the membrane itself is the flexible middle layer that absorbs differential movement between those two.

3. The Shear Interface

The combination of the fleece anchor below and the cavity structure above creates a shear interface — a plane where controlled, limited movement can occur without breaking the bond. This is why tile installed over an uncoupling membrane can tolerate substrate movement that would crack tile installed directly into thinset over concrete or plywood.

Think of it this way: direct thinset application makes the tile rigidly bonded to whatever is below it. When the slab cracks or the subfloor flexes, there's nowhere for that energy to go except into the tile or grout joint. The uncoupling membrane gives that energy a release valve.

Why Do Floors Crack Without One?

Two root causes account for most cracked tile installations:

Substrate movement. Concrete slabs in new construction continue to cure and shrink for months after the pour. Wood subfloors flex under load between joists. Both substrates also expand and contract with seasonal humidity and temperature swings. Any of these movements, if directly bonded to rigid tile, will eventually cause bond failure or grout cracking.

Incompatible expansion rates. Tile and the substrate beneath it often expand and contract at different rates. Porcelain tile and a wood subfloor have very different coefficients of thermal expansion. When both are rigidly bonded together, one wins and the other cracks. The uncoupling membrane makes this a non-issue by allowing each layer to move at its own rate.

Do You Actually Need an Uncoupling Membrane?

Uncoupling membranes are recommended for most tile installations — but whether they're strictly required depends on the situation.

On a well-poured, crack-free concrete slab in a dry interior space, experienced installers do successfully set tile directly into thinset without an uncoupling layer. That said, the membrane adds meaningful long-term protection against the cracking that becomes more likely over time as substrates settle and shift.

Where an uncoupling membrane is most strongly recommended:

• Wood subfloors — wood moves significantly with humidity changes, making it a high-risk substrate for direct tile bonding
• Heated floors — daily thermal cycling creates repetitive expansion/contraction stress
• Existing cracked slabs — the membrane provides crack isolation so existing cracks don't telegraph through to the tile surface
• Large-format tile and natural stone — less grout joint flexibility means the tile itself must absorb more movement; uncoupling reduces that requirement
• Wet areas — bathrooms, showers, and laundry rooms where moisture protection is layered in

The Deflection Standard for Wood Subfloors

One important distinction: an uncoupling membrane is not a substitute for a structurally sound subfloor. The real gating factor for wood subfloors is deflection — the amount of flex in the floor system under load. For ceramic tile, industry standards require a deflection ratio of L/360 or better (where L is the joist span in inches). A joist span of 120" can deflect no more than 1/3" under a 300-lb load.

For large-format tile and natural stone — already flagged above as strong use cases for uncoupling membranes — the standard is stricter: L/720. That same 120" joist span can deflect no more than 1/6" under load. If you're planning a large-format or stone installation on a wood subfloor, confirm the deflection rating against both the L/360 ceramic minimum and the L/720 stone/large-format requirement before proceeding.

If your subfloor doesn't meet the applicable deflection standard, no membrane will compensate — the subfloor needs to be stiffened first. Once deflection is within spec, an uncoupling membrane is the right next step.

What Substrates Work With Uncoupling Membranes?

Most structural substrates are compatible, including:

• Concrete slabs (new and existing)
• Plywood and OSB subfloors (meeting L/360 or L/720 deflection as applicable)
• Gypsum-based underlayments
• Existing ceramic or porcelain tile (when firmly bonded)
• Radiant heated substrates

Always consult the specific membrane manufacturer's installation guide for substrate-specific requirements, as some products have coverage or prep restrictions.

Can You Use an Uncoupling Membrane With a Heated Floor?

Yes — and this is one of the most practical applications. Daily thermal cycling from a radiant floor heating system creates repetitive expansion/contraction stress in the tile assembly. An uncoupling membrane absorbs that movement, protecting the tile bond year after year. This is especially relevant if you're heating a tile floor in a bathroom or kitchen where the system runs on a timer.

If you want to combine floor heating with the benefits of an uncoupling membrane, ProLux carries PROVA Flex-Heat — a heated uncoupling membrane designed specifically for this purpose. The Flex-Heat membrane has channels built into its dimpled surface that guide the floor heating cable into precise, consistent spacing. The cable laces through the channels, is covered in thinset, and tile goes over the top — all within a single integrated layer.

A few important notes on PROVA Flex-Heat:

• Cable-only compatibility. The Flex-Heat membrane is designed to work with heating cables, not heating mats. Mats have their own mesh backing and cannot be embedded in the uncoupling membrane channels.
• Thinset coverage. After the cable is installed in the channels, the entire surface must be covered with thinset before tile is set. The cable must be fully embedded — no air gaps.

For floors where you want the uncoupling benefits but don't need heat, ProLux carries two non-heated options: PROVA Flex and PROVA Protegga Plus. Both provide uncoupling, crack isolation, and joint moisture protection — Protegga Plus is an alternate SKU in the same non-heated category, giving you flexibility depending on project requirements. Both are part of the broader tile underlayment catalog at ProLux.

Uncoupling Membrane vs. Cement Board

Traditional cement board — meaning fiber-cement backer boards like Hardiebacker, Durock, and similar products — has been the default tile substrate for decades, and it's still a valid option. This comparison is specifically about those traditional cement backer boards. It's worth noting that rigid XPS foam boards like PROVA Board Plus+ are a different product category entirely — PROVA Board Plus+ is engineered as a waterproof backer board and as a validated below-element insulation option for electric radiant heat on concrete, and the trade-offs that apply to traditional cement board do not all apply to it.

With that distinction in mind, here's how uncoupling membranes and traditional cement backer boards compare:

For most residential tile installations — especially on wood subfloors, over heated systems, or in wet areas — an uncoupling membrane is the better technical choice. Traditional cement board remains useful in some specific applications, particularly where budget is the primary constraint or where the substrate doesn't lend itself to membrane installation.

If you're deciding between the two for a shower or bathroom, see our related guide: Do You Need to Waterproof Cement Board in a Shower?

Frequently Asked Questions

What is an uncoupling membrane made of?

PROVA uncoupling membranes — including PROVA Flex, PROVA Flex-Heat, and PROVA Protegga Plus — are made throughout of polypropylene: the structural sheet, the fleece backing, and the woven top layer. These materials are moisture-resistant, dimensionally stable, and compatible with standard thinset mortars.

Does tile have to be installed over an uncoupling membrane?

No — tile can be installed directly over properly prepared concrete or cement board without an uncoupling membrane. However, using a membrane is strongly recommended on wood subfloors, over heated systems, and anywhere crack isolation or joint moisture protection is a priority.

How thick is a standard uncoupling membrane?

Most uncoupling membranes are approximately 1/8" (3mm) thick — thin enough that they add very little height to the floor assembly. This makes them easier to use at thresholds and transitions compared to 1/4" or 1/2" cement board.

Can you use an uncoupling membrane in a shower?

Uncoupling membranes like PROVA Flex-Heat can be used in wet areas such as under shower floor tile, and taping seams with PROVA Joint Waterproofing Tape adds real moisture protection at those joints. But for full wet-area waterproofing — including shower floors and walls — PROVA Mat is the product built and tested for that job. This is covered further in our guide: Heated Shower Floor Installation.

Can an uncoupling membrane go over plywood?

Yes, provided the subfloor meets the applicable deflection standard — L/360 for ceramic tile, L/720 for natural stone and large-format tile. The membrane bonds to the plywood via thinset and the anchoring fleece, and the uncoupling layer then absorbs the residual wood movement. This is actually one of the strongest use cases for an uncoupling membrane — it handles the wood movement that would otherwise crack tile.

Will an uncoupling membrane work with floor heating mats?

Floor heating mats (which have the cable pre-spaced on a mesh backing) are not compatible with PROVA Flex-Heat, because the mat backing prevents proper embedding in the membrane channels. Flex-Heat works exclusively with loose heating cables. If you're using a mat system, the mat gets embedded in thinset directly, not in an uncoupling membrane.

What's the difference between PROVA Flex and PROVA Flex-Heat?

PROVA Flex is a standard non-heated uncoupling membrane for tile installations. PROVA Protegga Plus is a second non-heated option in the same category. PROVA Flex-Heat is engineered specifically for heated installations — its channel design routes and spaces a heating cable through the membrane, so the heating system and uncoupling protection are integrated into one layer.

Is PROVA covered by a warranty?

Yes. When installed as a complete PROVA waterproofing system, the installation is backed by a lifetime warranty. Confirm coverage details and requirements at ProLux Warranty Information.

The Bottom Line

An uncoupling membrane works by creating a shear-tolerant layer between your substrate and tile — one that absorbs differential movement through its dimpled cavity structure and anchoring fleece, rather than transferring that stress into the tile bond. The result is a tile installation that holds up through thermal cycles, substrate movement, and seasonal changes that would eventually crack a directly-bonded assembly.

For most tile projects — especially anything on wood subfloors, in wet areas, or over radiant heat — it's the right underlayment choice. If you're adding floor heating, PROVA Flex-Heat combines both functions into a single installation layer.
