How to Install Tile Backer Board

Many tile failures begin below the finished surface rather than in the tile itself. Cracked grout, loose tiles, and moisture-related damage are often caused by improper substrate preparation and inadequate fastening.

Tile backer board plays a critical role in any successful tile installation. When installed correctly, it provides a flat, stable, and durable base that supports tile, mortar, and grout over the long term.

This guide focuses on installing waterproof tile backer board accurately, explaining each stage of the process while highlighting why modern waterproof foam boards — such as PROVA Board Plus+ — have become the preferred choice for many professional installers.

Why Proper Tile Backer Board Installation Matters

Tile backer board is not decorative and it is not structural framing — but it is essential. Its job is to:

• Provide a rigid, flat surface for tile installation
• Isolate tile from movement in framing or subfloors
• Support thin-set mortar and grout
• Help manage moisture in wet or high-humidity environments

If boards are not installed flat, securely fastened, or supported by a stable substrate, movement can occur. Even minor movement can lead to cracked grout joints, tile delamination, and premature system failure.

Correct installation ensures the board remains rigid, level, and properly supported. This stability allows adhesives, waterproofing and grout to perform as intended and helps reduce the likelihood of future repairs.

Common Types of Tile Backer Board

Before installation begins, it’s important to understand the type of backer board being used. Installation details can vary depending on material.

Cement-Based Backer Boards

Traditional cement boards are dense, rigid, and moisture resistant. However, they are not waterproof by default and typically require a surface-applied waterproofing membrane in wet areas.

Foam / XPS Tile Backer Boards

Closed-cell foam boards, such as PROVA Board Plus+, are manufactured from extruded polystyrene (XPS). These boards are lightweight, easy to cut, and waterproof by material design. They do not absorb moisture or swell when exposed to water.

While foam boards simplify waterproofing, proper installation — especially joint treatment and fastening — remains essential for long-term performance.

Understanding PROVA Board Material Properties

PROVA Board Plus+ is constructed with a closed-cell XPS foam core, combined with a cementitious outer coating reinforced by fiberglass mesh on both faces. This layered construction provides a balance of waterproofing, rigidity, and surface strength suitable for tile installations.

The closed-cell XPS core is inherently waterproof and dimensionally stable, meaning it does not absorb water or swell—even if the outer cementitious layer is penetrated. This differentiates it from open-cell foam products, which can be more susceptible to moisture intrusion over time.

The cementitious surface provides a flat, solid substrate that bonds reliably with thin-set mortar, supporting consistent tile adhesion. Together, these characteristics make PROVA Board Plus+ well suited for wet and high-humidity environments such as bathrooms, laundry rooms, and tiled utility areas.

While the board itself forms a waterproof substrate, overall system performance depends on proper layout, secure fastening, and integration with compatible PROVA system components.

Waterproof Board and Installation Integrity

A waterproof backer board does not automatically guarantee a durable tile installation. While PROVA Board Plus+ provides a waterproof base layer, long-term success depends on how accurately the board is installed and prepared for tiling.

Maintaining flatness across panels, using consistent fastening patterns, and carefully detailing joints, transitions, and penetrations all contribute to installation integrity. When these elements are addressed correctly, the backer board supports a stable tile assembly designed for long-term performance.

Tools and Materials Required

• PROVA tile backer board panels
• Thin-set mortar approved for use with XPS tile backer boards
• PROVA fasteners and wide-head washers
• Measuring tape and straight edge
• Utility knife or cutting tool suitable for XPS boards
• Drill or impact driver
• Trowel for thin-set application
• PROVA Seal Sealing and Bonding compound (for bonding boards and sealing seams and transitions)

Using manufacturer-approved materials is especially important when installing waterproof tile backer board systems. PROVA accessories and compatible materials help ensure clean cuts, secure fastening, and consistent installation results.

Preparing the Substrate

Before installing any tile backer board, the substrate must be structurally sound, clean, and dry. Wall framing should be plumb and securely fastened, while floors must be rigid enough to prevent deflection under load.

Any damaged, uneven, or unstable surfaces should be corrected before installation begins. Installing tile backer board over compromised substrates can introduce movement that affects tile performance.

Proper preparation supports consistent fastening and helps maintain a flat, tile-ready surface.

Cutting and Dry-Fitting the Boards

Measure each area carefully and cut backer board panels to fit. PROVA Board Plus+ panels can be easily scored and snapped using a utility knife,

Dry-fit all panels before fastening. This step confirms layout accuracy, spacing, and alignment, allowing adjustments before boards are permanently secured.

Manufacturer-recommended gaps should be maintained at panel joints and changes in plane to support proper alignment and system detailing.

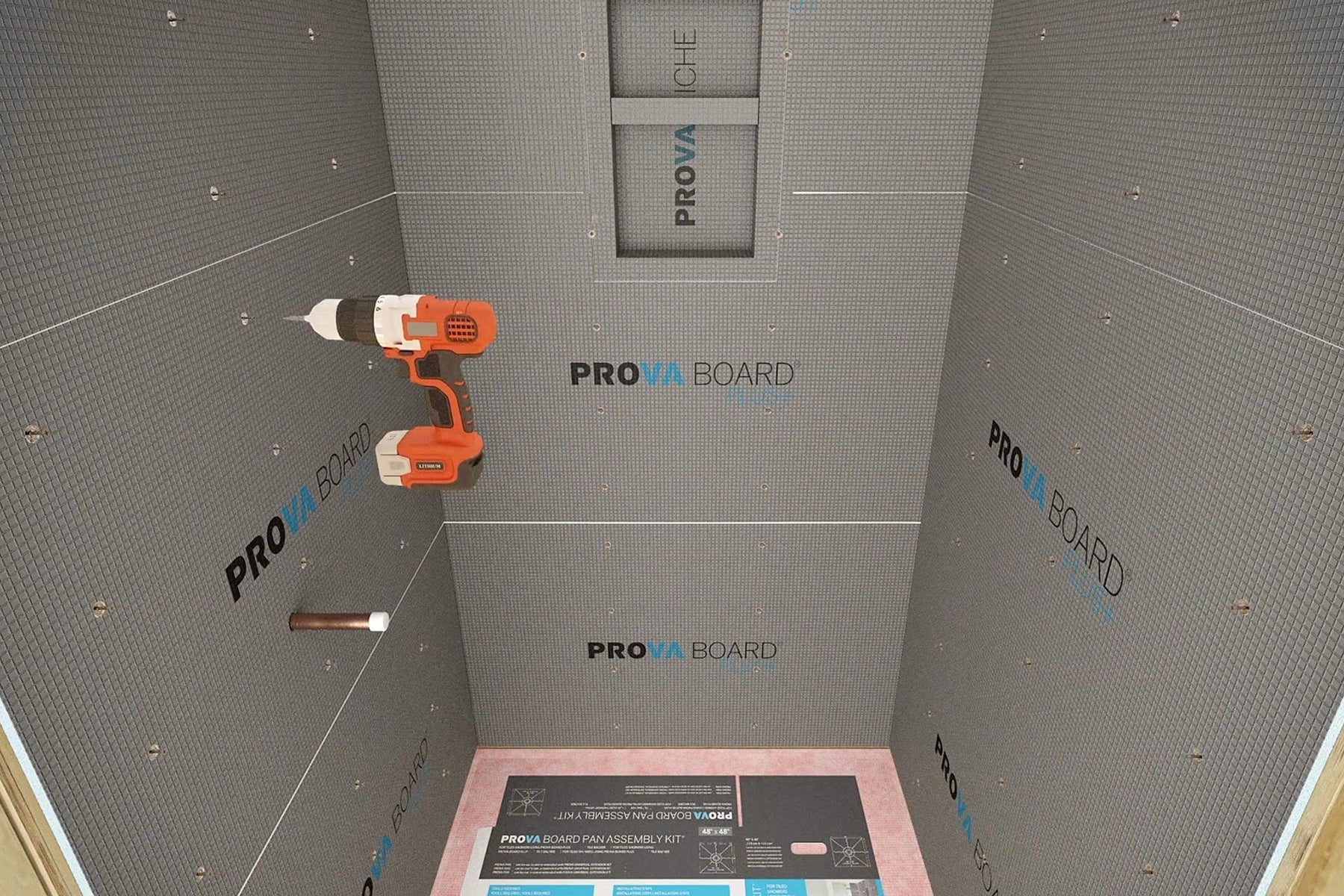

Installing the Tile Backer Board

Wall Installations

On walls, backer boards are typically fastened directly to studs using approved screws and washers.

PROVA Board Plus+ should be fastened using PROVA Fasteners and wide-head washers. In most applications, it is recommended to apply a bead of PROVA Seal onto the studs before fitting the board. Fasteners should be installed in a consistent pattern across the panel surface according to manufacturer guidance.

Fasteners must be driven flush with the surface of the board. Over-driving can compress the XPS core, while under-driving may interfere with tile installation.

Floor Installations

On floors, backer board is usually installed over a layer of thin-set mortar to eliminate voids and ensure full support.

Spread the mortar evenly across the substrate using the manufacturer-recommended trowel to ensure consistent coverage. The backer board should then be embedded fully into the fresh mortar, allowing it to seat properly and eliminate voids beneath the panel. Once positioned, secure the board as required to hold it firmly in place while the mortar cures, ensuring a stable and well-supported base for tile installation.

Proper bedding is critical to prevent movement under load.

Treating Joints, Fasteners, and Transitions

While some backer boards rely on mesh tape and thin-set at seams, waterproof foam boards use system-specific sealing methods to maintain continuity across joints and fasteners.

For boards like PROVA Board Plus+, all joints, transitions and fastener penetrations must be sealed according to manufacturer instructions using PROVA Seal.

This step is crucial as a waterproof board alone does not guarantee a waterproof installation — the system works as a whole.

Step-by-Step Installation Overview

PROVA Board Installation Demonstration

The following training video demonstrates proper PROVA Board installation techniques, including fastening methods and preparation prior to tiling.

Installing Backer Board in Different Environments

In bathrooms, PROVA Board Plus+ provides a waterproof substrate that supports tiled walls and floors when installed correctly. Accurate cutting and fastening around plumbing fixtures help maintain surface flatness.

Laundry rooms and utility areas benefit from the board’s resistance to moisture exposure from appliances and sinks. In basements, the closed-cell XPS structure helps maintain dimensional stability in environments with fluctuating humidity.

Steam rooms require additional consideration for vapor exposure. While PROVA Board is waterproof, steam environments must be detailed according to system guidelines to manage prolonged humidity and vapor pressure.

Compliance and Standards

When installed in accordance with manufacturer instructions and used as part of a complete tile assembly, PROVA Board installations can support compliance with recognized industry standards such as ANSI A118.10.

Why Correct Installation Matters

Tile backer board installations are not a place to cut corners. Proper installation:

• Reduces the risk of cracked grout and loose tile
• Protects against moisture-related failures
• Extends the life of the entire tile assembly

Modern systems like PROVA Board Plus+ make installation faster, cleaner, and more predictable — but performance still depends on following best practices and manufacturer guidance.

At ProLux Materials, we support installers and homeowners with PROVA system solutions, technical guidance, and training resources designed to promote consistent, reliable results.

Frequently Asked Questions

Is tile backer board waterproof?

Some boards are moisture resistant, while closed-cell foam boards such as PROVA Board Plus+ are waterproof by material design.

Does a waterproof board mean no preparation is required?

No. Accurate preparation, cutting, fastening, and joint treatment is still required to ensure proper tile performance.

Can the tile backer board be used on ceilings?

Yes, when framing, fastening, and load considerations are properly addressed. Steam environments require appropriate vapor management.

Is professional installation required?

Professional installation is recommended for complex layouts and high-moisture environments, though many experienced DIYers install backer board successfully.
