How to Test Your In-Floor Heat Wire

Testing your in-floor heat wire is the first step in confirming whether your system is working correctly — whether you're installing a new system or troubleshooting an existing one. Because the heating element is buried beneath tile, stone, or mortar, visual inspection is not possible once the installation is complete. Proper testing is what confirms the system is safe, intact, and ready to operate.

Understanding how to test your in-floor heat wire is essential not only for troubleshooting, but more importantly during installation. It's important for installers and homeowners to understand all the tests required during the different stages of an electric floor heating installation, in order to confirm system integrity before the floor is permanently finished.

When installed and verified correctly, premium floor heating cables provide consistent, long-term performance with minimal maintenance.

This guide explains when and how testing should be performed during installation, how to interpret results, and how testing applies to troubleshooting after the system is complete.

This article is intended as a general overview only and does not replace the need to follow the manufacturer’s specified testing procedures and installation instructions.

Tools Required for Accurate Testing

Accurate testing requires the right tools and reference values.

A digital multimeter capable of measuring resistance in ohms is essential. Manufacturer documentation must also be available to confirm the expected resistance range.

We also recommend using a continuity alarm monitor during installation. This device alerts you immediately if the cable is damaged while work is in progress. The monitor should remain connected throughout installation but does not replace formal resistance testing.

Understanding Resistance and Tolerance

Each heating cable is manufactured with a specific resistance value based on its length and design.

Most manufacturers allow a tolerance of approximately ±5–10% from the stated resistance value. A reading within this range indicates the cable is functioning correctly.

Readings outside this range, unstable values, or no continuity indicate a problem that must be addressed before proceeding.

Step-by-Step: How to Test Your In-Floor Heat Wire

Always ensure that is power fully disconnected before testing.

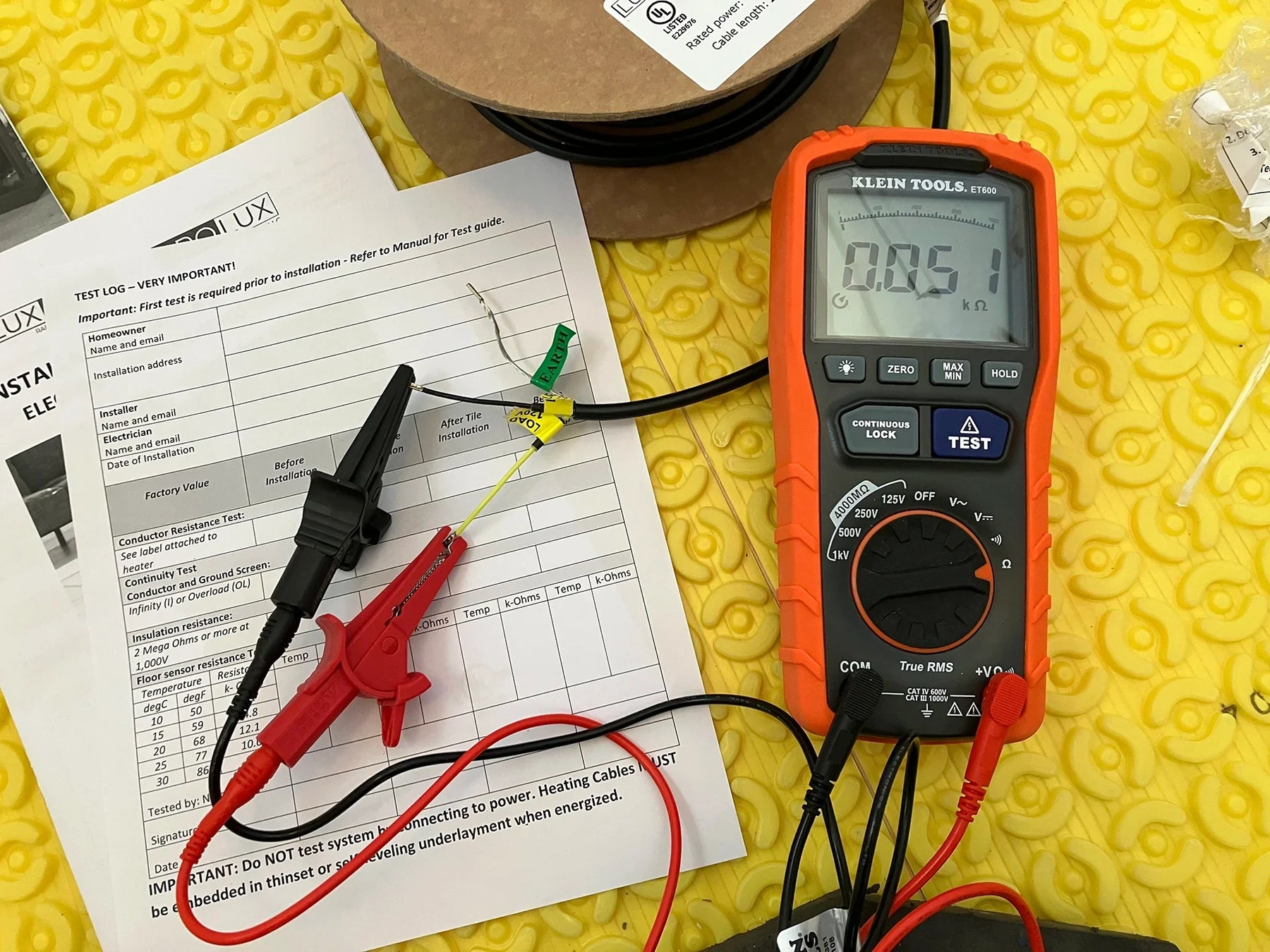

Set the multimeter to measure resistance. Identify the two power conductors of the heating cable and place one probe on each conductor.

Allow the reading to stabilize and record the value. Compare it directly to the manufacturer’s specified range.

If the reading is stable and within tolerance, the cable is intact. If the reading is infinite, zero, or unstable, the cable has likely been damaged.

How to Interpret Common Test Results

Ground Testing and Safety

Ground testing verifies that the heating conductors are properly isolated.

Place one probe on a conductor and the other on the grounding braid or ground wire. There should be no measurable continuity between either conductor and ground.

Any measurable reading indicates insulation damage, and the system must not be energized until the issue is resolved.

Insulation Resistance Testing (Megohmmeter)

In professional installations, insulation resistance testing using a megohmmeter is often performed alongside standard resistance checks.

This test measures whether the cable insulation has been compromised, even if the cable still shows continuity. It is especially important in wet areas such as bathrooms and showers.

Megohmmeter testing adds an extra layer of confidence that the system is safe before it is energized.

What Testing Your In-Floor Heat Wire Can and Cannot Tell You

A proper test checks three key things: that the cable forms a complete circuit (continuity), that its resistance falls within the specified range for correct heat output, and that the conductors are properly isolated from ground.

If any of these checks fail, the system should not be energized.

While testing can confirm that a fault exists, locating the damage beneath the floor requires specialized diagnostic tools. These allow for targeted repairs without removing large sections of flooring.

When to Test During Installation

The most critical time to test a heating cable is during installation, to ensure the system is fully functional before the system is covered by flooring.

Testing at each stage ensures that any damage is detected immediately, when it is still easy to fix. Once the cable is embedded and covered, repairs become more complex and disruptive.

Testing should be performed at three key stages:

• Before installation to confirm the cable was not damaged during shipping
• After layout and positioning to confirm no damage occurred during installation
• After floor covering is installed but before power is applied

This step-by-step verification process protects both the installer and the system.

Watch: How to Install a Floor Heating Cable with testing steps.

Testing During Troubleshooting After Installation

If a system does not heat after installation or at any point during the lifetime of the system, testing becomes the first step in troubleshooting.

Resistance testing helps determine whether the issue lies within the heating cable or elsewhere in the system. If the cable tests correctly, attention should shift to the thermostat, sensor, or electrical supply.

If the cable does not test correctly, further diagnostic tools will be required to locate the fault beneath the floor.

Common Testing Mistake to Avoid

There are a few common mistakes to avoid when testing a floor heating wire.

• Connecting the heating system to power to test it - The heating system should never be connected to power until it is embedded and the installation is complete.
• Skipping one of the testing stages - It's critical to perform testing at every stage of the installation
• Not recording test readings - All test readings should be recorded in the provided test log to refer back to if required later for troubleshooting or warranty claims.
• Misreading resistance tolerance - Resistance changes based on ambient temperature and therefore a ±5–10% variance from the manufacturer rated resistance is acceptable.
• Assuming continuity monitor is sufficient - Continuity monitor alarms or circuit checks are intended for monitoring the cable continuity between testing and do not replace proper testing with a multimeter.

Why Documentation Matters

Recording resistance readings at each stage of installation provides a valuable reference.

If issues arise later, comparing readings helps identify when damage occurred. This information is often required for warranty claims and professional diagnostics.

Summary: The Importance of Testing Your Floor Heating System

Proper testing is not just a troubleshooting step — it is how professionals verify the integrity of a floor heating system, thus ensuring it performs reliably from installation through long-term use.

For assistance with testing or any other installation questions - reach out to the Support Team at Prolux Materials.

Frequently Asked Questions

Should I test an in-floor heat wire after the floor is installed?
Yes. Final testing before powering the system is important to confirm that no damage occurred during flooring installation.

How close must the resistance reading be to the manufacturer specification?
The reading should fall within approximately ±5–10% of the manufacturer’s specified value.

What if the wire tests correctly but the floor does not heat?
If the cable passes all tests, troubleshooting should continue with the thermostat, floor sensor, or electrical supply.

Should testing be repeated if renovations occur later?
Yes. Any work that may disturb the floor should be followed by testing before operating the system.
