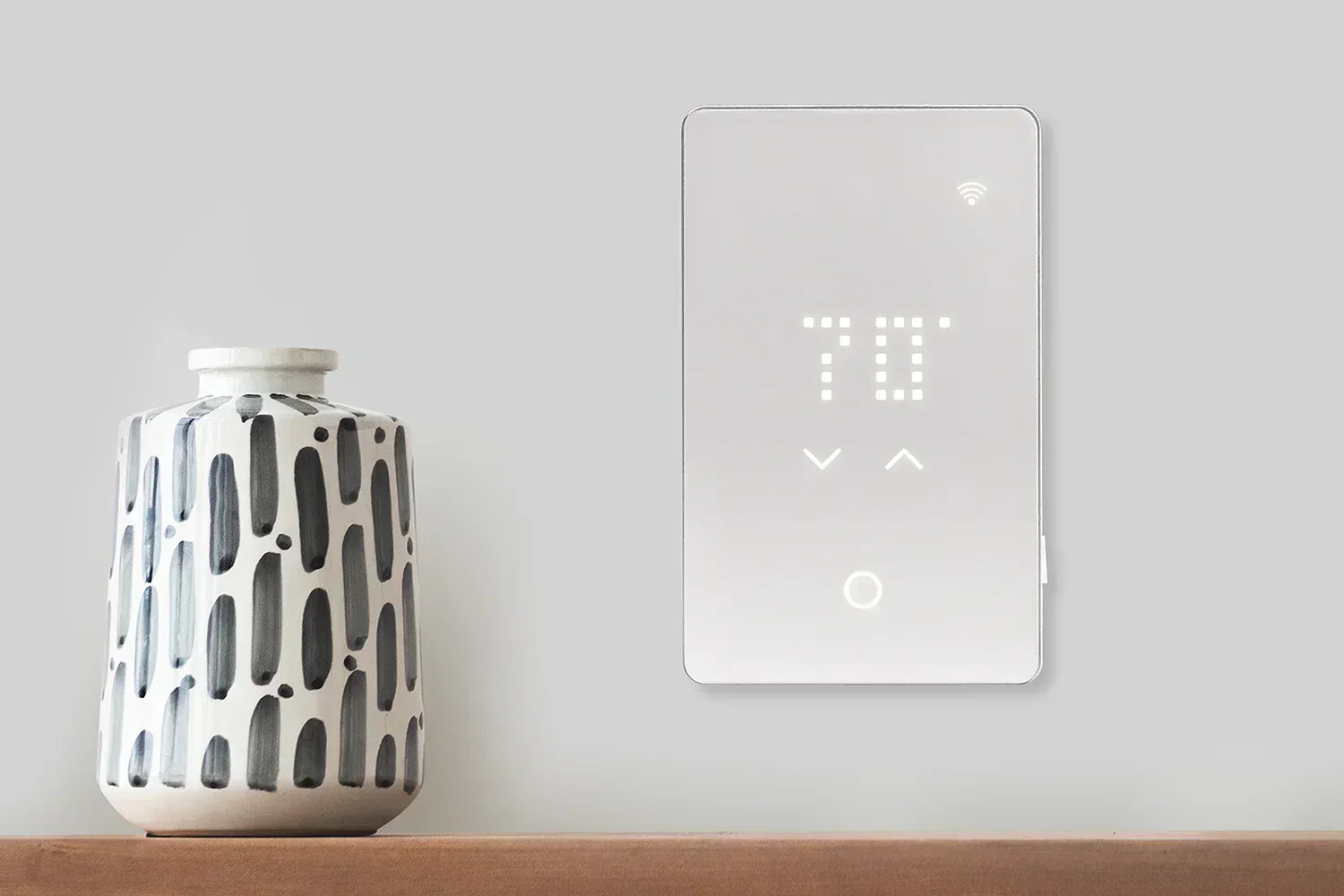

How to Troubleshoot Your Floor Heating Thermostat

When a radiant floor doesn't warm up, the thermostat is often the first place to look. A floor heating thermostat not working properly can interrupt comfort even when the heating cables beneath the floor are fully intact.

Floor heating thermostats are line-voltage control devices, designed to switch 120V or 240V power directly to the heating system while monitoring floor sensors and safety limits. Using purpose-built floor heating thermostats ensures proper control, but even the correct thermostat can occasionally require troubleshooting.

This guide outlines the most common causes of thermostat-related issues and what to check before assuming system failure.

Start With What the Thermostat Is Telling You

Modern floor heating thermostats provide important diagnostic clues through displays, indicator lights, and error messages.

A blank or unresponsive screen usually points to a power issue. A powered display with no heat often indicates a sensor, wiring, or safety condition preventing operation. Error codes typically narrow the issue further and should be noted before proceeding.

Always take note of exactly what the thermostat shows. That information determines the most efficient next step.

Confirm Power and Circuit Status

Loss of power is one of the most common reasons a floor heating thermostat stops working.

Floor heating thermostats are line-voltage devices and require a dedicated 120V or 240V supply. Check the circuit breaker feeding the thermostat and heating system. A tripped breaker may reset temporarily but trip again if a fault exists.

Because the thermostat switches line voltage directly to the heating system, power must be present at the thermostat terminals for the system to operate.

Built-In GFCI Protection and Tripping Issues

Most modern floor heating thermostats include a built-in GFCI for safety. For this reason, they should not be installed on a GFCI-protected circuit, as two GFCI devices can interfere with each other, causing nuisance tripping.

During setup or when pressing the thermostat’s test button, a self-test of the GFCI is performed. This is normal and does not indicate a problem. Pressing the reset button restores normal operation.

If the GFCI trips repeatedly, it may indicate a nuisance trip that clears after reset, a true ground fault that trips every time, or a rare GFCI failure inside the thermostat. Persistent tripping should be evaluated by a professional.

Verify Thermostat Settings and Warm-Up Expectations

Many thermostats are functioning correctly but not as expected.

Confirm the thermostat is set to heating mode and that the target temperature is above the current floor or room temperature. Some thermostats allow floor-only control, air-only control, or a combination of both, which affects how and when heat is delivered.

Floor temperature limits may restrict heat output, and setback schedules or timers can delay heating. Electric radiant floor heating warms gradually, and checking performance too soon after activation can make a working system appear non-functional.

Check the Floor Sensor

Floor sensors are one of the most common causes of thermostat-related issues.

These resistance-based sensors are embedded beneath the floor and communicate temperature data to the thermostat. If a sensor is damaged, disconnected, or reading outside its expected range, the thermostat may disable heating for safety.

Sensor resistance can be measured at the thermostat terminals using a multimeter and compared to the manufacturer’s specified range. If the sensor was installed in conduit, replacement may be possible without disturbing the floor.

Inspect Wiring and Voltage Connections

Incorrect or loose wiring can prevent proper operation even when the thermostat powers on.

NB: All electrical connections should only be troubleshooted or serviced by a qualified electrician.

With power disconnected, verify that supply wires are connected to the line terminals, heating system wires to the load terminals, and sensor wires to the correct sensor inputs. Loose or misplaced wires can interrupt power delivery.

Voltage mismatches are also critical. A 120V heating system connected to 240V power may be damaged, while a 240V system connected to 120V power will not heat properly.

Rule Out Load and Capacity Issues

Every thermostat has a maximum electrical load rating.

If the heating system exceeds this rating, the thermostat may shut down, trip protection features, or fail prematurely. This can occur when systems are expanded without adding a relay or power module.

Confirm the thermostat’s amperage rating matches the connected heating load.

Test the Heating System Independently

If the thermostat is displaying normal readings and switching power correctly, the issue may lie within the heating cable itself. Thermostats are often blamed for system failures when they are functioning properly and responding to detected faults. Once thermostat settings, wiring, and sensors are verified, the heating system itself should be tested.

Resistance testing of the heating cable confirms whether the system beneath the floor is intact. Readings should match the manufacturer’s documented range when tested with power disconnected.

Correct resistance readings indicate the thermostat or configuration is the likely issue. Abnormal readings suggest damage within the heating system.

Common Floor Heating Thermostat Error Codes

The following are common error codes found on OJ Microline thermostats, and an explanation of what they mean.

When It Is Time to Stop Troubleshooting

While basic checks are helpful, if breakers continue to trip, error codes persist, or resistance readings fall outside specification, the safest next step is to contact a qualified electrician or reach out to ProLux Materials support for guidance.

Preventing Future Thermostat Issues

Using conduit for floor sensors, verifying voltage and load ratings, and documenting resistance readings during installation all reduce long-term risk.

Proper configuration at installation prevents unnecessary shutdowns and ensures reliable performance over time.

Frequently Asked Questions

Why is my floor heating thermostat not working but the display is on?
This often indicates a sensor issue, incorrect settings, or a problem delivering power to the heating system.

Can a bad sensor stop the thermostat from heating?
Yes. If the thermostat cannot read a valid sensor value, it may disable heating for safety.

Should I replace the thermostat before testing the heating system?
No. Testing the sensor and heating cable first helps avoid unnecessary replacement.

Can I bypass the thermostat to test the system?
This should only be done by a qualified professional, as improper testing can damage the system or create safety risks.
