Can You Cut Radiant Floor Heating Mats

Radiant floor heating mats are designed to simplify installation, but one question comes up almost immediately once layout planning begins: Can you cut radiant floor heating mats to make them fit your space?

When working with floor heating mats, understanding what can be cut, what must never be cut, and how to adjust layouts safely is essential to a successful installation.

This article explains how radiant floor heating mats are constructed, when cutting is allowed, how to do it safely, and the mistakes that can permanently damage a system if misunderstood.

Quick Answer: Can You Cut Floor Heating Mats?

Yes, you can cut radiant floor heating mats, but only the mesh backing. The heating wire must never be cut or shortened, as this can permanently damage the system and void the warranty. To fit your space, the mat is adjusted using a “cut and turn” method, where the mesh is cut and the mat is repositioned while keeping the cable intact.

How Radiant Floor Heating Mats Are Built

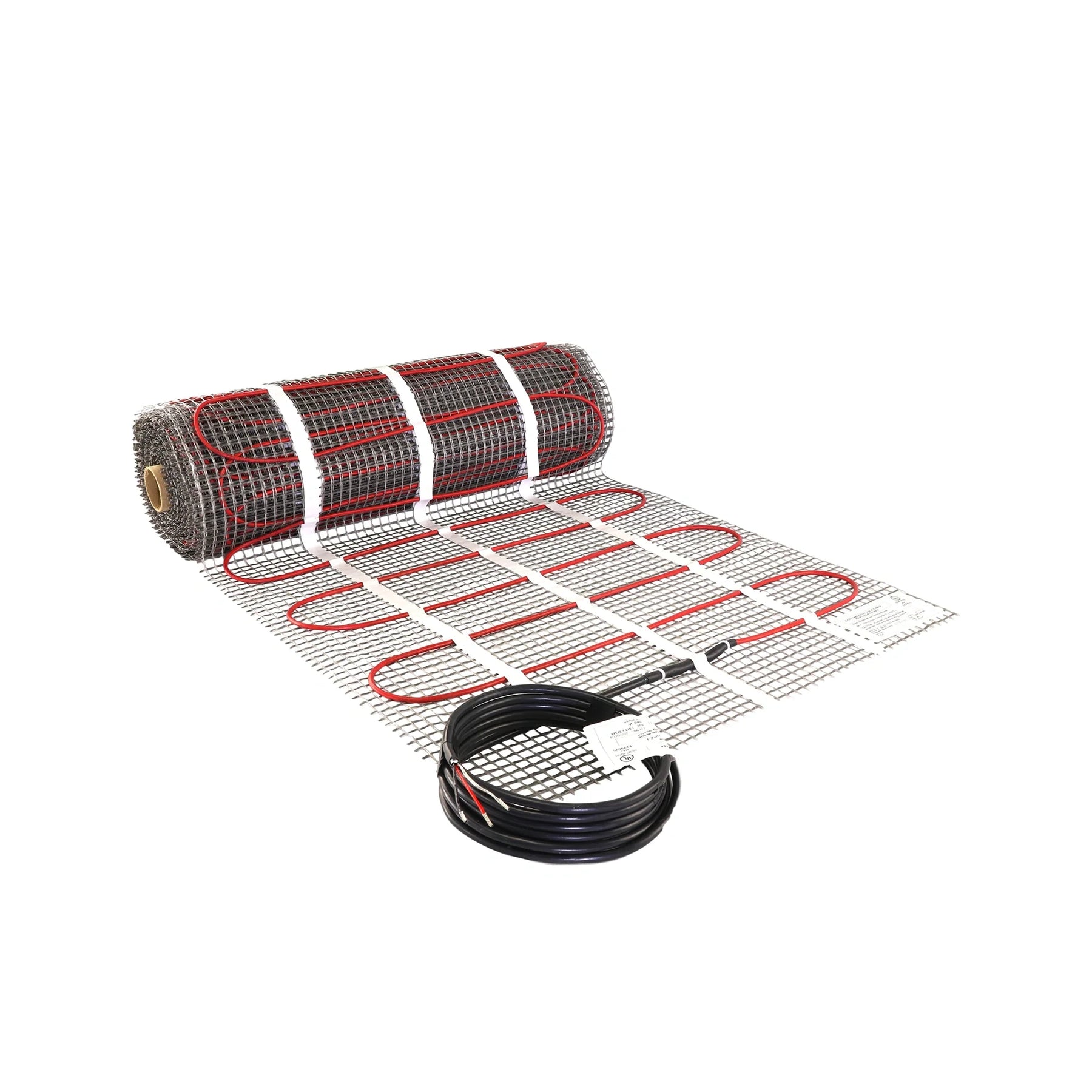

Radiant floor heating mats consist of a factory-spaced heating cable secured to a mesh or fabric backing. The spacing between the heating wires is carefully calculated to deliver consistent heat output across the floor surface.

The mesh backing serves one primary purpose: it keeps the heating cable positioned correctly during installation. The cable bonded to the mesh is what generates heat, and it must remain intact for the system to function.

This distinction is critical. Cutting the mat backing is acceptable. Cutting the heating wire is not.

What You Are Allowed to Cut and What You Are Not

The most important rule is simple:

You may cut the mesh backing of a radiant floor heating mat. You must never cut or shorten the heating wire.

The mesh can be trimmed or segmented to allow the mat to turn, reverse direction, or fit around obstacles. These adjustments allow the mat to be shaped to the room without altering the heating cable itself.

The heating wire must remain continuous from end to end and cannot be cut or shortened. Shortening the length of the wire changes the resistance of the wire, which will lead to overheating and potential system failure.

Common Situations Where Cutting the Mesh Is Necessary

Cutting the mesh backing is normal in many installations. Rather than requiring custom-sized systems for every room, manufacturers have designed mats so the mesh can be cut and repositioned while maintaining consistent cable spacing. This allows installers to adapt a standard mat to real-world layouts.

Typical scenarios include turning the mat at the end of a run, fitting around toilets or pedestal sinks, adjusting coverage near walls, or working around floor penetrations such as drains.

In each case, the goal is to reposition the mat without changing the spacing of the heating wire.

While mats are popular for many bathroom and kitchen layouts due to their easy roll-out design, highly irregular spaces may benefit from floor heating cable systems instead.

Mat Systems vs Cable Systems: When to Choose Each

Heating mats are ideal for standard or moderately complex layouts where fast installation is preferred. They reduce installation time and help maintain consistent spacing automatically.

Loose cable systems offer greater flexibility and are often better suited for highly irregular layouts, tight spaces, or rooms with many obstacles. In these cases, cables allow you to route heat exactly where it is needed without working around a fixed mat structure.

If your layout is complex, it may be worth reviewing a professional layout plan or requesting layout design assistance before choosing a system.

How to Cut Radiant Floor Heating Mats Safely

Cutting a heating mat requires careful handling and attention.

Most installations follow a “cut and turn” method. This involves cutting the mesh backing between heating wires, then flipping or rotating the mat to continue the run in a new direction.

Use scissors or a utility knife to cut only the mesh backing. The heating cable must remain fully intact at all times.

After each cut, reposition the mat while maintaining consistent spacing between cable runs. Avoid stretching, bunching, or forcing sharp bends in the wire, as this can affect performance or cause damage.

Why You Should Never Shorten a Heating Mat

A common misconception is that excess mat length can be solved by cutting off the end.

Radiant floor heating mats are engineered to operate at a specific electrical resistance based on their length. Shortening the heating cable changes that resistance and can lead to overheating, system failure, or thermostat errors.

Heating mats must always be sized correctly before installation. The heating cable cannot be shortened under any circumstances.

What to Do If a Floor Heating Mat Is Too Large

If a heating mat is too large for the space, the heating wire must not be cut.

One option is to remove the mesh backing in certain sections and run the cable loosely into adjacent areas where heating is appropriate, maintaining proper spacing and avoiding fixtures.

Heating should never be installed under permanent fixtures such as vanities or cabinets unless there is sufficient air clearance beneath them.

If excess cable cannot be safely accommodated, the correct solution is to select a smaller mat that matches the heated area.

Testing Before and After Installation

Testing is essential throughout installation.

Resistance readings should be taken before installation, after the mat is laid out, and again before covering it with mortar or tile. These readings confirm that the heating wire remains intact.

Recording results provides a useful reference for troubleshooting and helps support warranty requirements.

What Happens If the Heating Wire Is Accidentally Cut?

Cutting the heating wire is one of the most serious installation errors.

The system will fail resistance testing immediately. In some cases, professional repair kits can restore continuity, but this requires precise fault detection and proper repair techniques.

Careful handling during cutting is the best way to avoid this issue.

How Cutting Affects Warranty and Performance

Manufacturers expect the mesh backing to be cut as part of normal installation.

However, cutting the heating wire typically voids warranties unless repaired according to manufacturer guidelines. Improper handling may also affect system performance.

Planning Layout to Minimize Cutting

Although cutting is part of installation, proper planning reduces unnecessary adjustments.

Dry-fitting the mat, marking obstacles, and planning turns in advance help maintain clean cable paths and reduce handling during installation.

Frequently Asked Questions

Can radiant floor heating mats be cut?
Yes, but only mesh backing can be cut. The heating wire must never be cut or shortened.

Can a floor heating mat be cut to size?
If the mat is too large for your area, it cannot be shortened to fit. Shortening the heating wire changes the resistance and can lead to overheating and system failure.

What tool should I use to cut heating mats?
Scissors can be used to cut the mesh backing safely.

Can I overlap the mat after cutting?
No. Heating cables must never overlap or cross, as this can cause overheating.

What should I do if I accidentally cut the heating wire?
Stop installation immediately and test the system, the damage must be addressed before continuing. Professional repair is normally possible using a manufacturer approved splice repair kit.
