How to Waterproof Shower Walls Before Tiling

Don’t let a beautiful tile installation become a hidden liability. The most critical layer in your shower, and the one you can’t afford to shortcut, is the waterproofing behind the tile. Done properly, it protects against mold, structural damage, and costly repairs for the life of the bathroom.

Whether you’re a seasoned contractor or a first-time renovator, learning how to waterproof shower walls before setting a single tile is the ultimate safeguard.

At ProLux Materials, we distribute complete PROVA waterproofing systems, making it simple to build code-compliant, efficient, and long-lasting shower enclosures.

Why Shower Waterproofing Is Non-Negotiable

Tile and grout are decorative, not waterproof. They absorb and slowly transmit moisture, and once water gets behind them, damage can begin. Hidden issues may include rotting studs, mold growth, failing adhesive, and tiles that start to lift or discolor. Even a small leak around a corner or valve penetration can travel through the wall cavity for months before you notice it.

Proper waterproofing stops that cycle before it starts. A continuous barrier behind your tile prevents water from ever reaching the substrate. The result is a longer-lasting, hygienic, and structurally sound shower that complies with modern building standards.

That is where the PROVA systems stand out. They provide integrated layers that work together to block water, manage vapor, and simplify inspection and installation.

Understanding Modern Waterproofing Options

1. Traditional Cement Board and Liquid Membrane

Cement board has long been a go-to substrate. It is strong and dimensionally stable, but it is not inherently waterproof. It can hold moisture like a sponge. To protect it, installers apply a liquid or sheet membrane over the surface and then tape and seal all joints.

The performance depends heavily on application thickness and coverage. A single missed patch or thin spot can compromise the system. It can work well, but it leaves more room for human error and often requires multiple coats and long dry times.

2. Integrated Waterproof Backer Board (PROVA Board Plus+)

PROVA Board Plus+ is a lightweight, rigid tile backer board with a waterproof XPS core and reinforced surfaces. The board itself is inherently waterproof and vapor-resistant. It does not absorb water, swell, or warp, making it an excellent choice for new builds and full remodels.

When the seams, fasteners, and penetrations are treated with PROVA Seal Waterproofing & Bonding Compound and PROVA fasteners (screws and washers), the wall becomes a single waterproof assembly ready for tile. PROVA Board Plus+ installs directly onto wood framing and provides excellent support for large-format tile and stone.

3. Bonded Waterproof Membrane Over Existing Substrate (PROVA Mat)

For renovations where the existing drywall or cement board is stable, and you want to add waterproofing without tearing everything out, PROVA Mat Waterproofing Membrane is an ideal solution. It is a bonded sheet membrane installed over the existing substrate using thin-set mortar.

The seams are sealed with PROVA Joint strip, corners are treated with PROVA Inside and Outside Corners, and penetrations are protected with PROVA Pipe Seal. Together, these accessories create a continuous moisture and vapor barrier over your existing walls.

PROVA Mat is perfect for light remodels, upgrades over sound drywall or cement board, and projects where you want a thin but reliable waterproof layer.

Planning the Perfect Waterproof Assembly

Every successful, long-lasting waterproofing job starts with careful preparation. Think of this stage as building the perfect base before you apply either PROVA Board Plus+ or PROVA Mat. Skipping these steps can create problems later, no matter which system you choose.

1. Frame and Structure Inspection

• Check the framing: All studs should be straight, dry, and plumb. Address any warped, damaged, or wet framing before moving on.
• Reinforce flexing areas: Any sections that feel spongy when pushed need blocking or additional framing to create a rigid substrate for tile.
• Insulate exterior walls: If the shower is on an exterior wall, ensure that insulation is installed correctly. Good insulation helps control condensation inside the wall cavity.

2. Plumbing and Fixture Finalization

• Secure penetrations: Pipes and plumbing fittings should be snug and supported so they do not move when valves are used.
• Confirm depths and locations: Verify the depth of the valve body, the location of showerheads, and the placement of any niches or benches before you start waterproofing. Moving them afterward can damage the waterproof layer.

3. Base Integration Verification

• Verify the shower base: Whether you have a PROVA shower base, a mortar bed, or a preformed pan, it must be properly waterproofed and integrated with your wall system. The change of plane where the wall meets the floor is a critical point for waterproofing, so plan this transition carefully.

By following these steps, you set up either PROVA Board Plus+ or PROVA Mat to perform at its best.

Step-by-Step Waterproofing Guide for PROVA Systems

Step 1: Surface Preparation

Remove any existing finishes, paint, or loose materials. Clean off dust and debris. The surface must be sound, clean, and dry before you install either system. Repair or replace any soft, warped, or cracked materials. Good prep is the foundation for a reliable waterproof assembly.

Option A: Waterproofing with PROVA Board Plus+ and PROVA Seal

Step 2A: Install PROVA Board Plus+ Backer Boards

Cut PROVA Board Plus+ to size using a utility knife, scoring and snapping as needed. Install the boards directly onto wood framing using PROVA Fasteners (screws and washers) at the spacing recommended in the installation instructions, typically along every stud.

Stagger vertical joints where possible and keep seams tight. The boards are light enough for one person to handle, and because they are waterproof, you are building your moisture barrier right into the wall structure.

Step 3A: Seal Seams and Fasteners with PROVA Seal

Once the boards are fastened, use PROVA Seal Waterproofing & Bonding Compound to treat all seams, screw heads, and penetrations. Apply PROVA Seal over the joints and fasteners as directed, creating a continuous waterproof layer across the entire surface.

Because PROVA Board Plus+ is already waterproof through its core, PROVA Seal’s job is to close the gaps between panels and around fasteners. You do not need to add PROVA Joint strip over PROVA Board seams.

Step 4A: Protect Openings and Transitions

Use PROVA Seal to carefully seal around valve openings, pipe penetrations, and any custom cutouts. At the transition between the wall and the shower base or tub, extend PROVA Seal to make sure there are no gaps where water can collect.

Once cured according to the manufacturer’s instructions, you have a rigid, fully waterproof wall assembly ready for tile.

Option B: Waterproofing with PROVA Mat, PROVA Joint, and Accessories

Step 2B: Prepare the Existing Substrate

If you are using PROVA Mat Waterproofing Membrane over existing drywall or cement board, check that the surface is stable, clean, and free of loose material. Fasten any loose panels, remove flaking paint, and fill major holes or voids so the membrane can lie flat.

Step 3B: Seal Seams, Corners, and Penetrations

It is recommended to treat all seams, corners and penetrations first using PROVA Joint, PROVA Inside and Outside Corners, and PROVA Pipe Seal. Embed the items with polymer modified thinset, smoothing them out firmly with a trowel to avoid bunching or air pockets.

• Use PROVA Joint strip to cover all membrane seams, changes of plane, and overlaps.
• Install PROVA Inside and Outside Corners at internal and external corners to keep the waterproof layer consistent without bunching or folding.
• Seal pipe penetrations and similar openings with PROVA Pipe Seal, embedded in thin-set mortar.

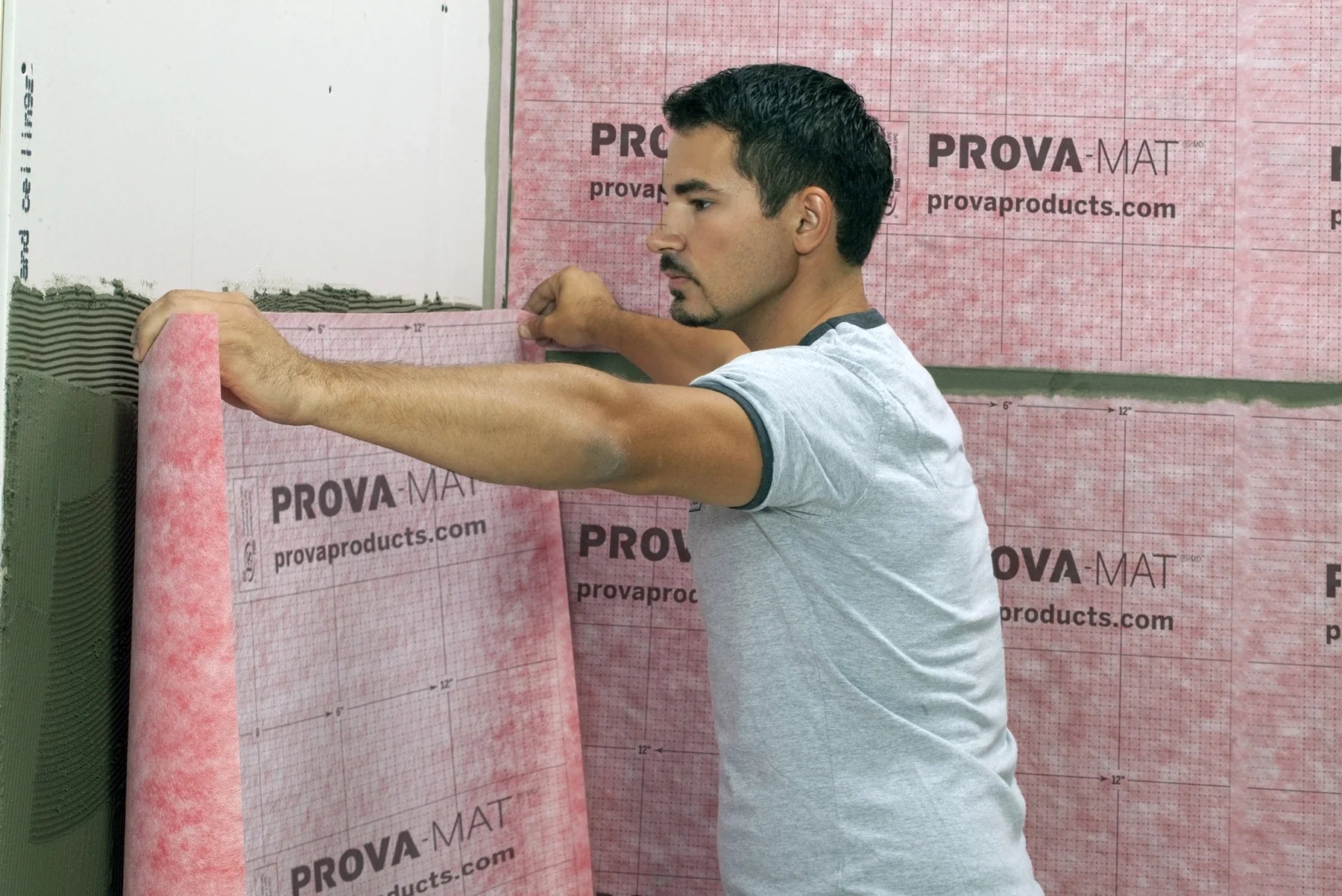

Step 4B: Install PROVA Mat Waterproofing Membrane

Now that your seams and corners are treated, apply a suitable polymer-modified thin-set mortar to the wall with the recommended trowel. Embed PROVA Mat into the fresh mortar, pressing it firmly with a trowel or roller to achieve full contact and remove air pockets.

Overlap adjacent sheets with a 2" overlap according to the manufacturer’s instructions and work from the bottom up and make sure the membrane is smooth and well supported. Peel back the membrane occasionally to check for full coverage.

Together, PROVA Mat, PROVA Joint, corners, and pipe seals create a bonded sheet system that is fully waterproof and vapor-resistant over your existing substrate.

Final Checks Before Tiling

Regardless of which PROVA system you use, inspect your work under good lighting. Every seam should be sealed, every fastener or overlap treated, and every penetration protected. The surface should feel continuous and ready for tile, with no exposed substrate or gaps.

Allow the mortar and compounds to cure as directed. Once cured, the wall assembly is ready for tile installation.

Advanced Tips from ProLux Installers

• Sequence matters: When using the PROVA Mat System, waterproof joints, seams, corners and penetrations first, and then install the large sections of PROVA Mat to avoid build-up and ensure a continuous, smooth surface for tiling.
• Do not overdrive fasteners in PROVA Board Plus+: Tighten fasteners just enough to seat the washers without crushing the board surface.
• Maintain slope in niches and benches: A slight slope toward the drain prevents standing water and staining.
• Use consistent mortar coverage: Full coverage behind tiles helps manage moisture and ensures long-term adhesion.

Waterproofing Shower Walls for Tile: Comparing Systems

Vapor Control and Code Alignment

In modern bathrooms, vapor can be just as damaging as liquid water. Hot showers generate steam that looks for a way into cooler wall cavities. PROVA waterproofing systems are designed to manage both moisture and vapor when installed according to manufacturer instructions, helping you meet relevant standards and building code expectations.

By choosing a complete PROVA system through ProLux, installers can simplify their material choices and documentation. All components within each system are designed to work together, so there is no guesswork about compatibility.

Common Mistakes and How to Avoid Them

• Mixing components from different systems: Avoid using PROVA Joint on PROVA Board seams or combining accessories not designed to work together.
• Skipping seam treatment: Even a small unsealed joint can allow moisture to migrate behind the tile.
• Using standard drywall inside the shower: Drywall is not designed for constant moisture exposure and should be protected or replaced.
• Applying liquid membranes too thinly: When using liquid systems elsewhere, follow coverage and thickness guidelines closely.
• Neglecting penetrations and transitions: Corners, pipe penetrations, and changes of plane are common leak points and must be treated carefully.

Testing and Quality Assurance

Before tiling, you can perform basic checks such as lightly misting the waterproof surface and watching how quickly water beads and runs off. For larger or high-end projects, moisture meters and more formal tests may be used to confirm performance before finishes are installed.

Taking time to verify the waterproofing now protects your reputation later and reduces the risk of callbacks or repairs.

Beyond the Shower: Extended Applications

The same PROVA waterproofing systems you use on shower walls can be extended to tub surrounds, wet rooms, steam enclosures, and commercial spa spaces. The materials are designed for demanding environments where moisture and temperature changes are part of daily use.

When building a sauna or residential steam room or steam shower, PROVA Mat installed over PROVA Board Plus+ is an approved system with no additional vapor or steam resistance required.

Key Takeaways for Professionals and DIYers

• Never tile directly over unprotected drywall or plaster inside a shower.
• Use PROVA Board Plus+ when you want to build from the studs with a rigid, waterproof backer board system.
• Use PROVA Mat when you want to waterproof over existing drywall or cement board with a bonded sheet system.

• Work with ProLux Materials to source genuine PROVA products and get support on system selection and installation.

Why Choose ProLux for PROVA Waterproofing Systems

At ProLux Materials, we focus on giving installers and homeowners confidence in their finished projects. As a distributor of PROVA waterproofing systems, we provide access to authentic materials, product guidance, and practical support on how to assemble each system correctly.

From new builds to smart renovations, our goal is to help you create leak-free, durable bathrooms that stand up to daily use. When your project demands reliable waterproofing behind the tile, partnering with ProLux and PROVA systems is a smart and long-lasting choice.

Frequently Asked Questions

Can I combine PROVA Board Plus+ and PROVA Mat in the same shower?

Each PROVA system is designed to be used as a complete assembly with its own accessories. In most cases, you should choose one system for the shower walls and use the corresponding components rather than mixing systems. However, when installing a residential steam shower or sauna, PROVA Mat over PROVA Board Plus+ offers a complete, approved system.

When should I choose PROVA Board Plus+ instead of PROVA Mat?

Choose PROVA Board Plus+ when you are building from the studs, creating new walls, or need extra rigidity and support for large format tile. Choose PROVA Mat when you are waterproofing over sound drywall or cement board in a remodel.

What seals the seams on PROVA Board Plus+?

Use PROVA Seal Waterproofing & Bonding Compound with PROVA Board Plus+ to treat seams, fasteners, and penetrations. You do not need to add PROVA Joint strip over PROVA Board seams.

What accessories are used with PROVA Mat?

PROVA Mat is paired with PROVA Joint strip for seams, PROVA Inside and Outside Corners for changes of plane, and PROVA Pipe Seal for pipe penetrations to create a continuous waterproof surface.

Where can I buy genuine PROVA waterproofing products?

You can order PROVA Board Plus+, PROVA Mat, and all related accessories through ProLux Materials, along with guidance on which system best suits your project.
