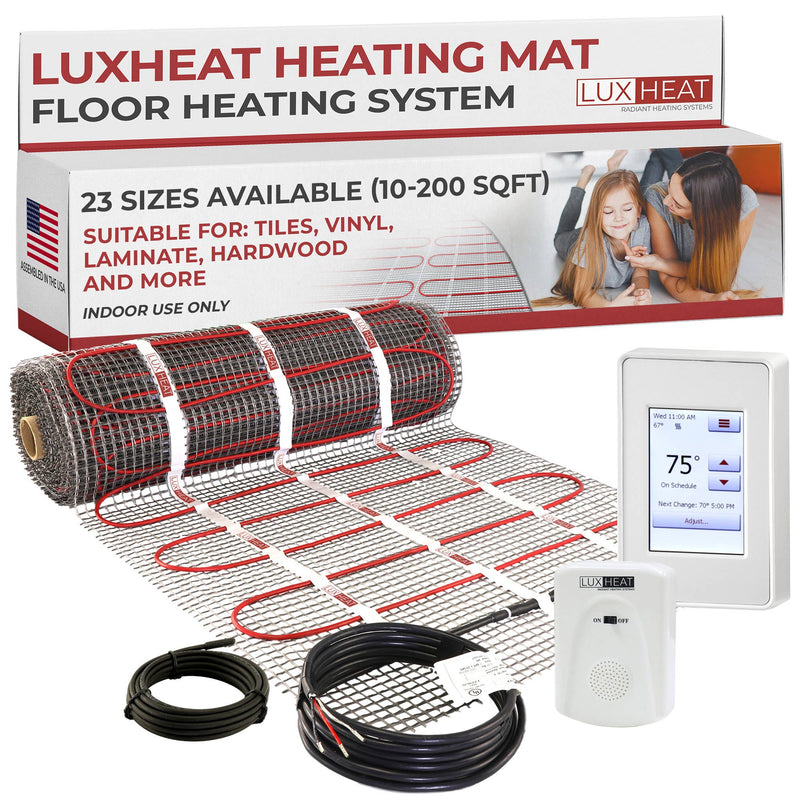

LuxHeat Radiant Floor Heating Mat System with Touch Programmable Thermostat

Sale Sale
$272.00
$272.00 - $1,299.00
$272.00
$209.00
$209.00 - $999.00
$209.00

Experience the allure and functionality of a tile, vinyl, or hardwood floor without compromising on Comfort.

The LuxHeat Mat, combined with OJ Microline's intuitive and energy-efficient thermostat, delivers the ultimate in luxury, comfort, reliability, and affordability.

  • 25 Year Warranty
  • 12 watts/sq. foot
  • cULus Approved for USA & Canada
  • Safe for Wet Areas including showers
  • Mat dimensions: 20" wide, length varies according to sq. feet

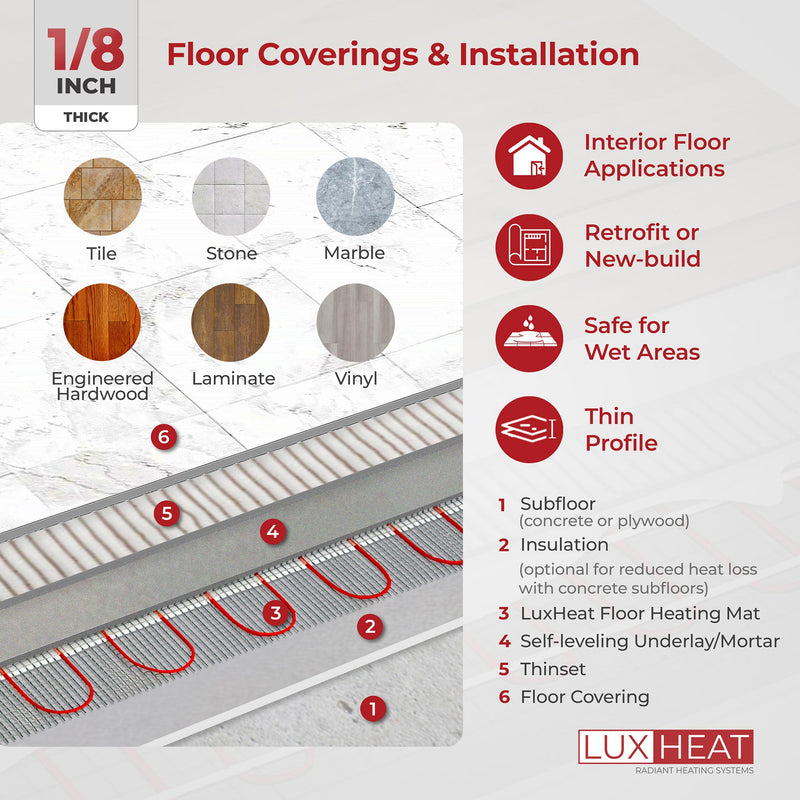

  • Suitable for under tile, laminate, vinyl, hardwood and more
  • Includes OJ Microline UDG4-4999 Touch Programmable Thermostat
Technical Specifications

Voltage: 120V
Watts: 120W
Amps: 1.0A
Width: 1.64ft
Length: 6.10ft
Coverage: 10sqft

Voltage: 120V
Watts: 180W
Amps: 1.5A
Width: 1.64ft
Length: 9.15ft
Coverage: 15sqft

Voltage: 120V
Watts: 240W
Amps: 2A
Width: 1.64ft
Length: 12.2ft
Coverage: 20sqft

Voltage: 120V
Watts: 300W
Amps: 2.5A
Width: 1.64ft
Length: 15.24ft
Coverage: 25sqft

Voltage: 120V
Watts: 360W
Amps: 3A
Width: 1.64ft
Length: 18.29ft
Coverage: 30sqft

Voltage: 120V
Watts: 420W
Amps: 3.5A
Width: 1.64ft
Length: 21.34ft
Coverage: 35sqft

Voltage: 120V
Watts: 480W
Amps: 4A
Width: 1.64ft
Length: 24.39ft
Coverage: 40sqft

Voltage: 120V
Watts: 540W
Amps: 4.5A
Width: 1.64ft
Length: 27.44ft
Coverage: 45sqft

Voltage: 120V
Watts: 600W
Amps: 5A
Width: 1.64ft
Length: 30.49ft
Coverage: 50sqft

Voltage: 120V
Watts: 720W
Amps: 6A
Width: 1.64ft
Length: 36.59ft
Coverage: 60sqft

Voltage: 120V
Watts: 840W
Amps: 7A
Width: 1.64ft
Length: 42.68ft
Coverage: 70sqft

Voltage: 120V
Watts: 960W
Amps: 8A
Width: 1.64ft
Length: 48.78ft
Coverage: 80sqft

Voltage: 120V
Watts: 1080W
Amps: 9A
Width: 1.64ft
Length: 54.88ft
Coverage: 90sqft

Voltage: 120V
Watts: 1200W
Amps: 10A
Width: 1.64ft
Length: 60.98ft
Coverage: 100sqft

Voltage: 120V
Watts: 1320W
Amps: 11A
Width: 1.64ft
Length: 67.07ft
Coverage: 110sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1440W
Amps: 12A
Width: 1.64ft
Length: 73.17ft
Coverage: 120sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1560W
Amps: 13A
Width: 1.64ft
Length: 79.27ft
Coverage: 130sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1680W
Amps: 14A
Width: 1.64ft
Length: 85.37ft
Coverage: 140sqft

Supplied as two heating mats

Voltage: 120V
Watts: 1800W
Amps: 15A
Width: 1.64ft
Length: 91.46ft
Coverage: 150sqft

Supplied as two heating mats

Voltage: 240V
Watts: 420W
Amps: 1.8A
Width: 1.64ft
Length: 21.34ft
Coverage: 35sqft

Voltage: 240V
Watts: 480W
Amps: 2A
Width: 1.64ft
Length: 24.39ft
Coverage: 40sqft

Voltage: 240V
Watts: 540W
Amps: 2.3A
Width: 1.64ft
Length: 27.44ft
Coverage: 45sqft

Voltage: 240V
Watts: 600W
Amps: 2.5A
Width: 1.64ft
Length: 30.49ft
Coverage: 50sqft

Voltage: 240V
Watts: 660W
Amps: 2.8A
Width: 1.64ft
Length: 33.54ft
Coverage: 55sqft

Voltage: 240V
Watts: 720W
Amps: 3A
Width: 1.64ft
Length: 36.59ft
Coverage: 60sqft

Voltage: 240V
Watts: 840W
Amps: 3.5A
Width: 1.64ft
Length: 42.68ft
Coverage: 70sqft

Voltage: 240V
Watts: 960W
Amps: 4A
Width: 1.64ft
Length: 48.78ft
Coverage: 80sqft

Voltage: 240V
Watts: 1080W
Amps: 4.5A
Width: 1.64ft
Length: 54.88ft
Coverage: 90sqft

Voltage: 240V
Watts: 1200W
Amps: 5A
Width: 1.64ft
Length: 60.98ft
Coverage: 100sqft

Voltage: 240V
Watts: 1440W
Amps: 6A
Width: 1.64ft
Length: 73.17ft
Coverage: 120sqft

Voltage: 240V
Watts: 1680W
Amps: 7A
Width: 1.64ft
Length: 85.37ft
Coverage: 140sqft

Voltage: 240V
Watts: 1920W
Amps: 8A
Width: 1.64ft
Length: 97.56ft
Coverage: 160sqft

Voltage: 240V
Watts: 2160W
Amps: 9A
Width: 1.64ft
Length: 109.76ft
Coverage: 180sqft

Voltage: 240V
Watts: 2400W
Amps: 10
Width: 1.64ft
Length: 121.95ft
Coverage: 200sqft

Select Voltage: 120V
Select Size: 10 sqft
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

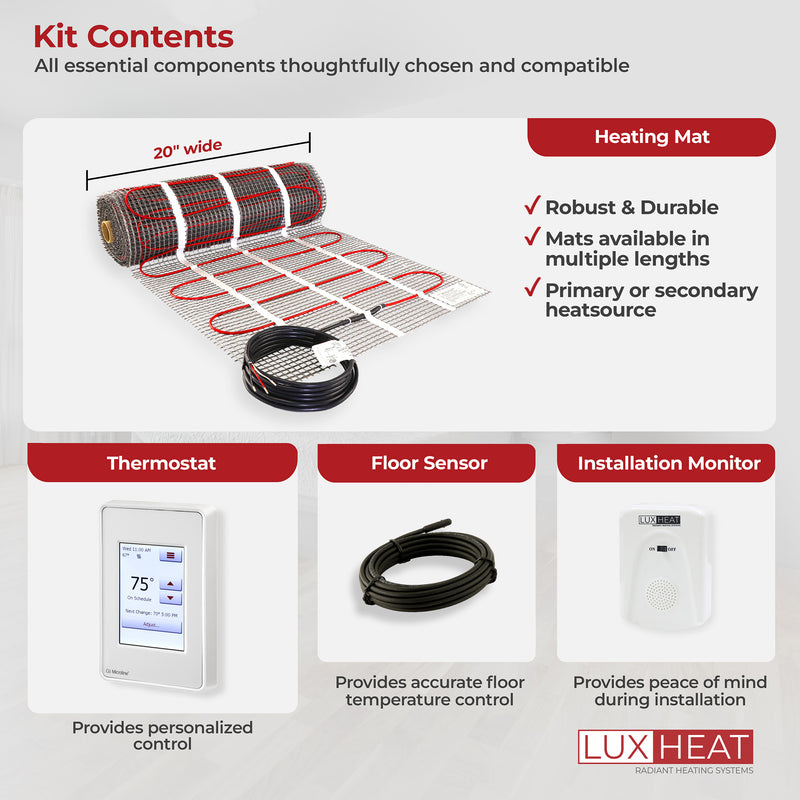

Kit Contents

This floor heating mat and touch programmable thermostat kit for sale online includes all the key components for a functional and luxurious Radiant Floor Heating System.

kit-component-heating-mat
kit-component-touch-thermostat
kit-component-floor-sensor
kit-component-installation-monitor
Mat_Close_Up_bbaf190f-d3e2-4672-8c23-7f8f8771d8f2

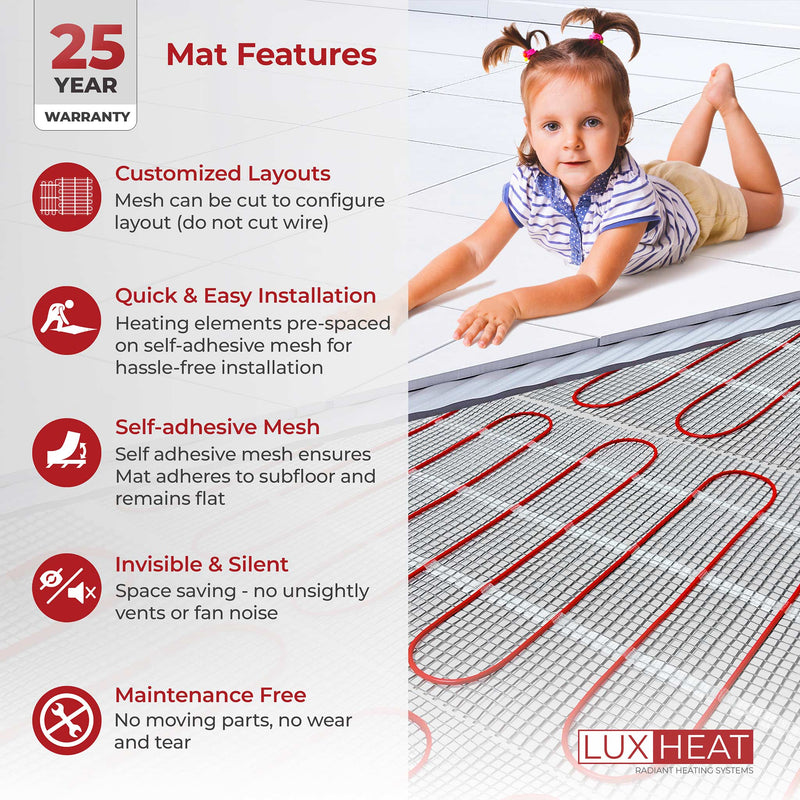

Features & Benefits

✔Single cold lead, double insulation.

✔Certified by cULus for both the USA and Canada, designated as safe for wet locations.

✔Consistent heat distribution is achieved with wires pre-spaced every 3 inches, delivering 12watts per sqft.

✔Experience an ultra-low electromagnetic field (EMF) with cutting-edge dual conductor technology and foil sheath.

✔The heater wire, with a thickness of less than 5/32 inches, ensures a minimal impact on the finished floor height.

✔The mat features a self-adhesive mesh on one side and double-sided tape on the other, ensuring it stays flat, even when flipped.

✔Health professionals recommend this product for individuals with allergies.

✔Eliminate unattractive heaters, storage hassles, maintenance, and unwanted smells.

✔Ensure safety for children, elderly, and pets with no hot, exposed, or moving parts.

✔Experience accurate and intelligent control for personalized comfort and affordability.

UDG4_Lifestyle_Image_2_V2

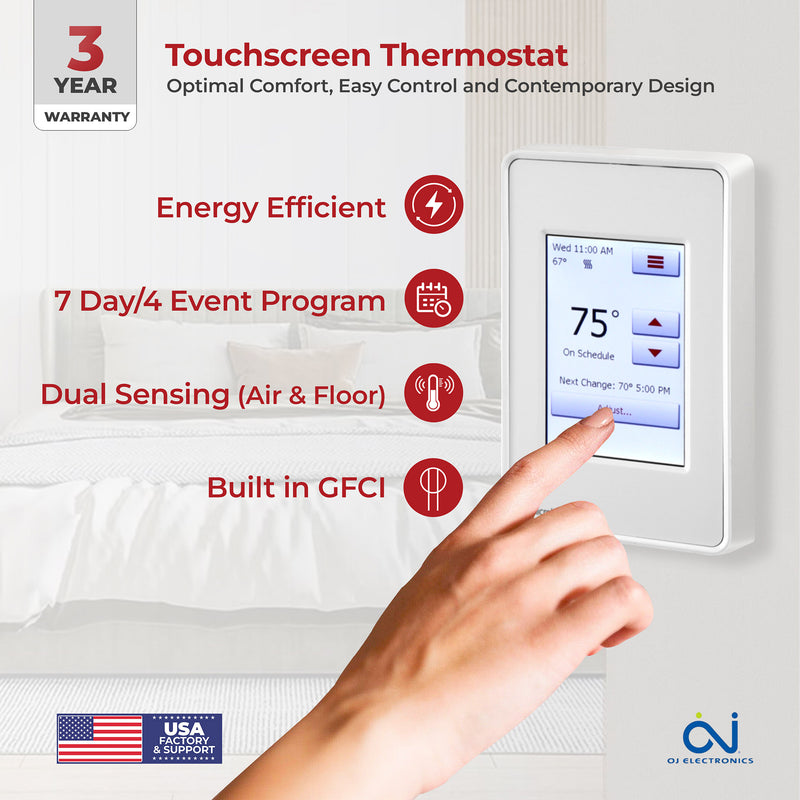

Thermostat Features

✔ 3.5" Color Screen with interactive touch control.

✔cULus Listed for both the USA and Canada.

✔Suitable for use in wet room environments.

✔ 3 Year Factory Warranty.

✔Incorporated GFCI (Ground Fault Circuit Interrupter) with Class A and a sensitivity of 5mA.

✔Operates at either 120 volts or 240 volts, providing dual voltage capability.

✔Equipped with dual sensing capabilities for both air and floor conditions.

✔Load capacity: 15 amps, supporting 1800 watts at 120 volts or 3600 watts at 240 volts.

✔A pre-set 7-day, 4-event program that is fully customizable to suit individual preferences.

✔Additional modes include Child Lock, Manual Override, and various other features.

✔Settings designed for floor protection, ensuring safe and effective operation.

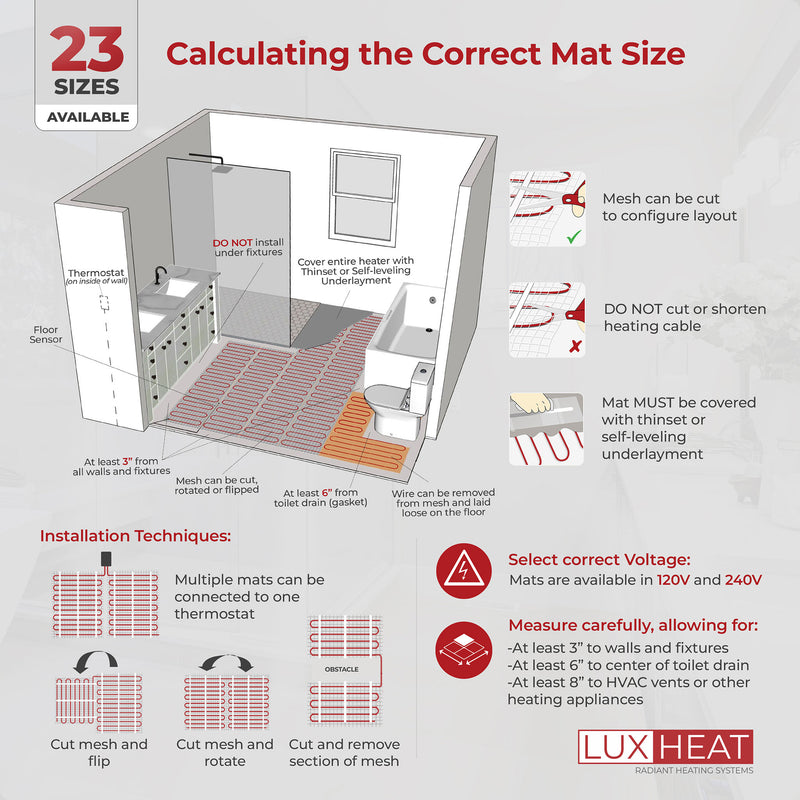

How To Select the Correct Size Heating Mat

how-to-measure-mat
mat-important-notes

How To Cut & Turn Your Mat

The mesh can be cut and turned to suit your layout. The Heating Cable cannot be cut or shortened.

mat-rotate-example
mat-flip-example
mat-obstacle-example
mat-remove-wire-example
Safe_Reliable2
Easy_to_Install
Luxury_and_Comfort
Low_Running_Cost
Adds_Value
Silent_Invisible2
